PF 1200 - Husqvarna Proflex Swedish Riding Mower (1998-03) HOOD Parts Diagram

Proflex Swedish Riding Mower

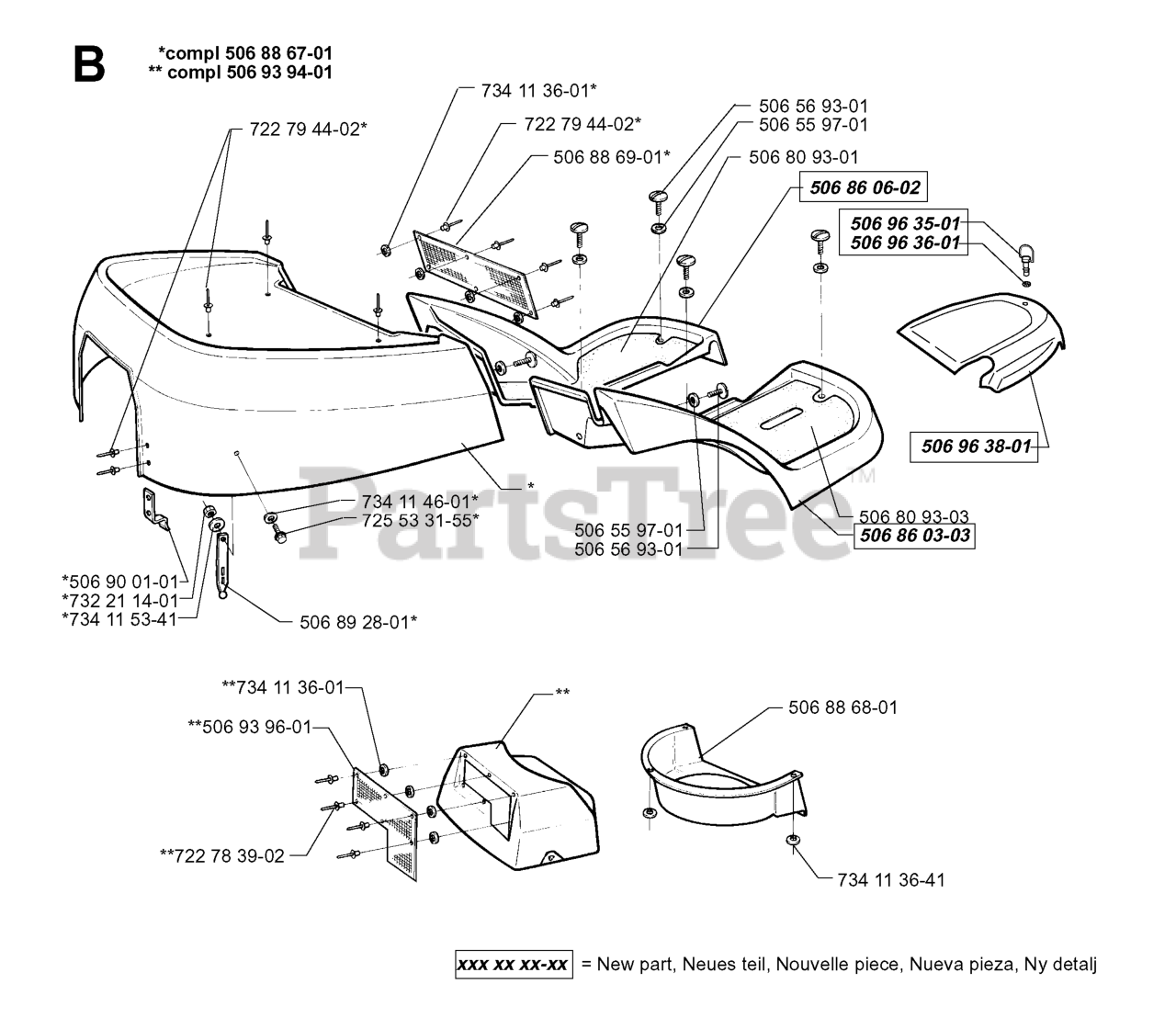

HOOD Parts Diagram

  • Title

506 86 06-02

Husqvarna 506860602

NEEDS DESCRIPTION

$

$

Not available

506 56 93-01

Husqvarna 506569301

SCREW
(Superseded to 506982601)

$6.99

$

In Stock, Qty 7

0

506 88 68-01

Husqvarna 506886801

AIR CONDUCTOR

$

$

Not available

506 89 28-01

Husqvarna 506892801

STRAP

$

$

Not available

722 79 44-02

Husqvarna 722794402

Rivet

$

$

Not available

506 88 69-01

Husqvarna 506886901

GRILL

$

$

Not available

506 86 03-03

Husqvarna 506860303

FOOT REST

$

$

Not available

734 11 53-41

Husqvarna 734115341

Washer

$

$

Not available

506 90 01-01

Husqvarna 506900101

BRACKET

$

$

Not available

506 55 97-01

Husqvarna 506559701

WASHER

$5.99

$

In Stock, Qty 5

0

734 11 36-41

Husqvarna 734113641

WASHER

$

$

Not available

506 93 96-01

Husqvarna 506939601

SCREEN

$

$

Not available

506 80 93-01

Husqvarna 506809301

MAT, L.H.

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 5

0

506 93 94-01

Husqvarna 506939401

COVER

$

$

Not available

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

506 96 36-01

Husqvarna 506963601

WASHER

$

$

Not available

722 78 39-02

Husqvarna 722783902

Rivet

$

$

Not available

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 3 left!

0

506 88 67-01

Husqvarna 506886701

ENGINE COVER

$

$

Not available

734 11 36-01

Husqvarna 734113601

WASHER

$4.99

$

In Stock, only 1 left!

0

506 96 35-01

Husqvarna 506963501

BOLT
(Superseded to 525390601)

$10.99

$

Usually ships in 3-10 days

0

506 80 93-03

Husqvarna 506809303

MAT-RH

$

$

Not available

506 96 38-01

Husqvarna 506963801

COVER
(Superseded to 535415501)

$

$

Not available
