PF 18 - Husqvarna Proflex Swedish Riding Mower (2000-02) PROTECTION FRAME 2 Parts Diagram

Proflex Swedish Riding Mower

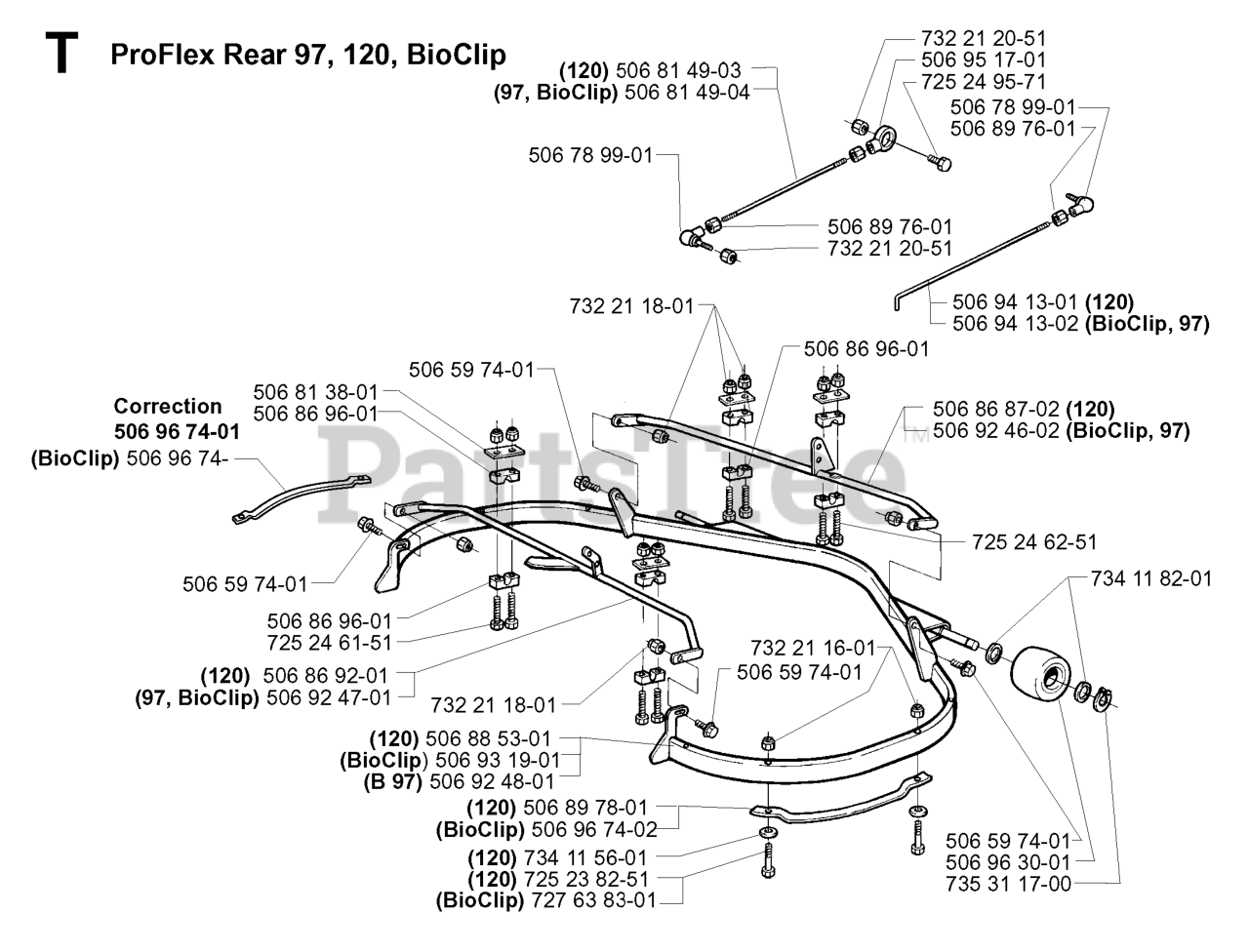

PROTECTION FRAME 2 Parts Diagram

  • Title

506 86 96-01

Husqvarna 506869601

BEARING

$

$

Not available

725 23 82-51

Husqvarna 725238251

SCREW

Note: 120

$

$

Not available

506 89 76-01

Husqvarna 506897601

NUT

$

$

Not available

506 94 13-02

Husqvarna 506941302

ROD

Note: BIOCLIP, 97

$

$

Not available

727 63 83-01

Husqvarna 727638301

Bolt

Note: BIOCLIP

$

$

Not available

735 31 17-00

Husqvarna 735311700

RETAINING RING SGA 15

$5.99

$

In Stock, Qty 12

0

734 11 56-01

Husqvarna 734115601

WASHER
(Superseded to 734492601)

Note: 120

$

$

Not available

506 96 74-

Husqvarna 5069674

NEEDS DESCRIPTION

Note: BIOCLIP

$

$

Currently unavailable

506 81 38-01

Husqvarna 506813801

PLATE

$9.49

$

Usually ships in 3-10 days

0

506 86 87-02

Husqvarna 506868702

Pipe

Note: 120

$

$

Not available

734 11 82-01

Husqvarna 734118201

WASHER

$5.99

$

In Stock, Qty 18

0

506 59 74-01

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

725 24 95-71

Husqvarna 725249571

SCREW

$7.99

$

In Stock, Qty 12

0

506 95 17-01

Husqvarna 506951701

LINK

$102.99

$

Usually ships in 3-10 days

0

725 24 62-51

Husqvarna 725246251

SCREW

$7.99

$

Usually ships in 3-10 days

0

732 21 20-51

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

732 21 16-01

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

506 92 47-01

Husqvarna 506924701

TUBE

Note: 97, BIOCLIP

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506 92 48-01

Husqvarna 506924801

FRAME

Note: B 97

$

$

Not available

506 96 74-02

Husqvarna 506967402

GUARD

Note: BIOCLIP

$

$

Not available

506 88 53-01

Husqvarna 506885301

FRAME

Note: 120

$

$

Not available

506 89 78-01

Husqvarna 506897801

COVER

Note: 120

$

$

Not available

506 78 99-01

Husqvarna 506789901

LINK

$102.99

$

Usually ships in 3-10 days

0

506 92 46-02

Husqvarna 506924602

PIPE

Note: BIOCLIP, 97

$

$

Not available

506 81 49-03

Husqvarna 506814903

ROD

Note: 120

$

$

Not available

725 24 61-51

Husqvarna 725246151

BOLT

$7.99

$

In Stock, only 1 left!

0

506 86 92-01

Husqvarna 506869201

PIPE

Note: 120

$

$

Not available

506 96 30-01

Husqvarna 506963001

DECK ROLLER, FRONT

$87.99

$

In Stock, Qty 19

0

506 81 49-04

Husqvarna 506814904

ROD

Note: 97, BIOCLIP

$

$

Not available

506 93 19-01

Husqvarna 506931901

FRAME

Note: BIOCLIP

$

$

Not available

506 96 74-01

Husqvarna 506967401

GUARD

Note: CORRECTION

$

$

Not available

506 94 13-01

Husqvarna 506941301

ROD

Note: 120

$

$

Not available
