PF 18 - Husqvarna Proflex Swedish Riding Mower (2000-03) SEAT Parts Diagram

Proflex Swedish Riding Mower

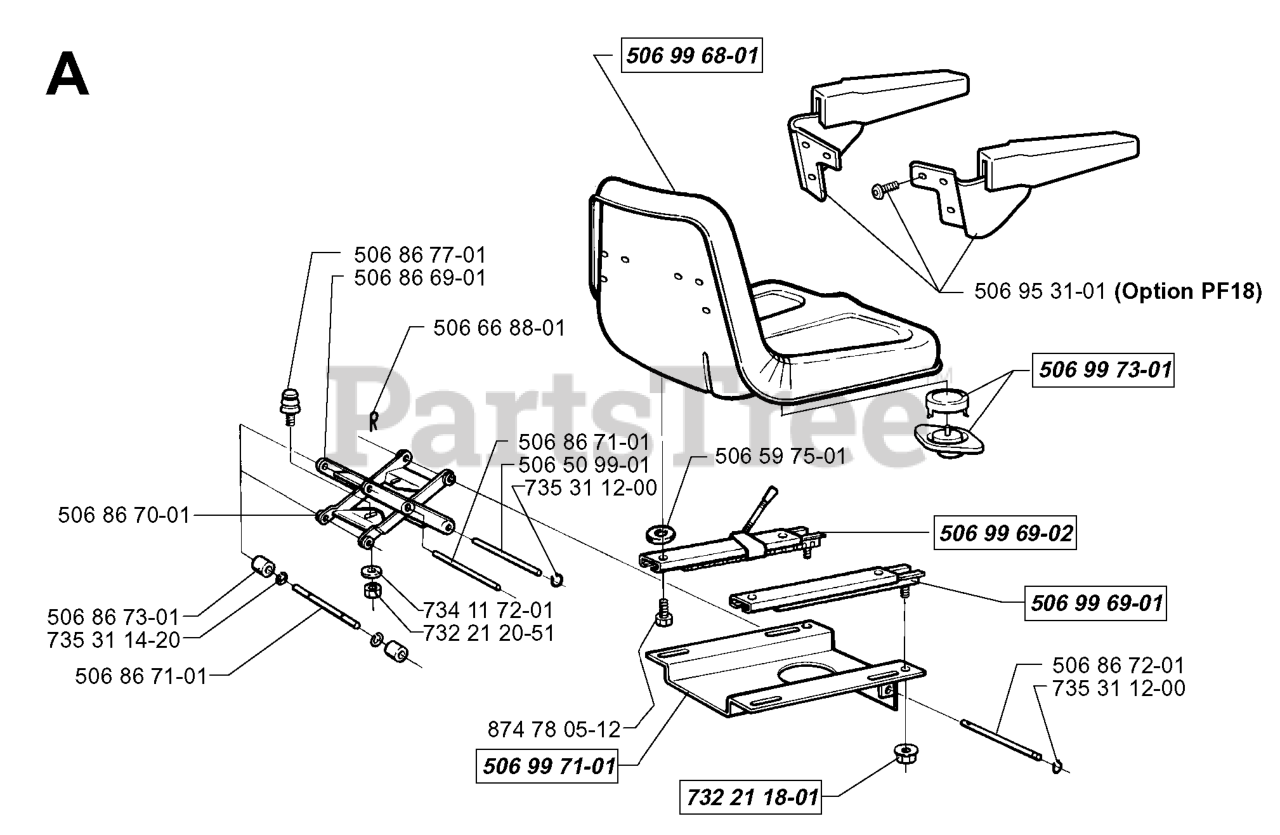

SEAT Parts Diagram

  • Title

506 99 73-01

Husqvarna 506997301

BRAKER

$

$

Not available

735 31 12-00

Husqvarna 735311200

RETAINING RING SGA 10

$4.99

$

In Stock, Qty 6

0

506 86 70-01

Husqvarna 506867001

ROD

$

$

Not available

506 99 69-01

Husqvarna 506996901

RAIL

$

$

Not available

506 99 68-01

Husqvarna 506996801

SEAT

$

$

Not available

734 11 72-01

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

506 86 71-01

Husqvarna 506867101

SHAFT

$

$

Not available

506 86 72-01

Husqvarna 506867201

SHAFT

$

$

Not available

732 21 20-51

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

506 86 77-01

Husqvarna 506867701

DAMPER

$

$

Not available

506 99 69-02

Husqvarna 506996902

RAIL

$

$

Not available

874 78 05-12

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

506 50 99-01

Husqvarna 506509901

Shaft

$

$

Not available

506 95 31-01

Husqvarna 506953101

SUPPORT

Note: OPTION PF18

$

$

Not available

506 86 73-01

Husqvarna 506867301

ROLLER

$

$

Not available

506 86 69-01

Husqvarna 506866901

ROD

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506 59 75-01

Husqvarna 506597501

WASHER

$

$

Not available

506 99 71-01

Husqvarna 506997101

BRACKET

$

$

Not available

735 31 14-20

Husqvarna 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

506 66 88-01

Husqvarna 506668801

PIN

$

$

Not available
