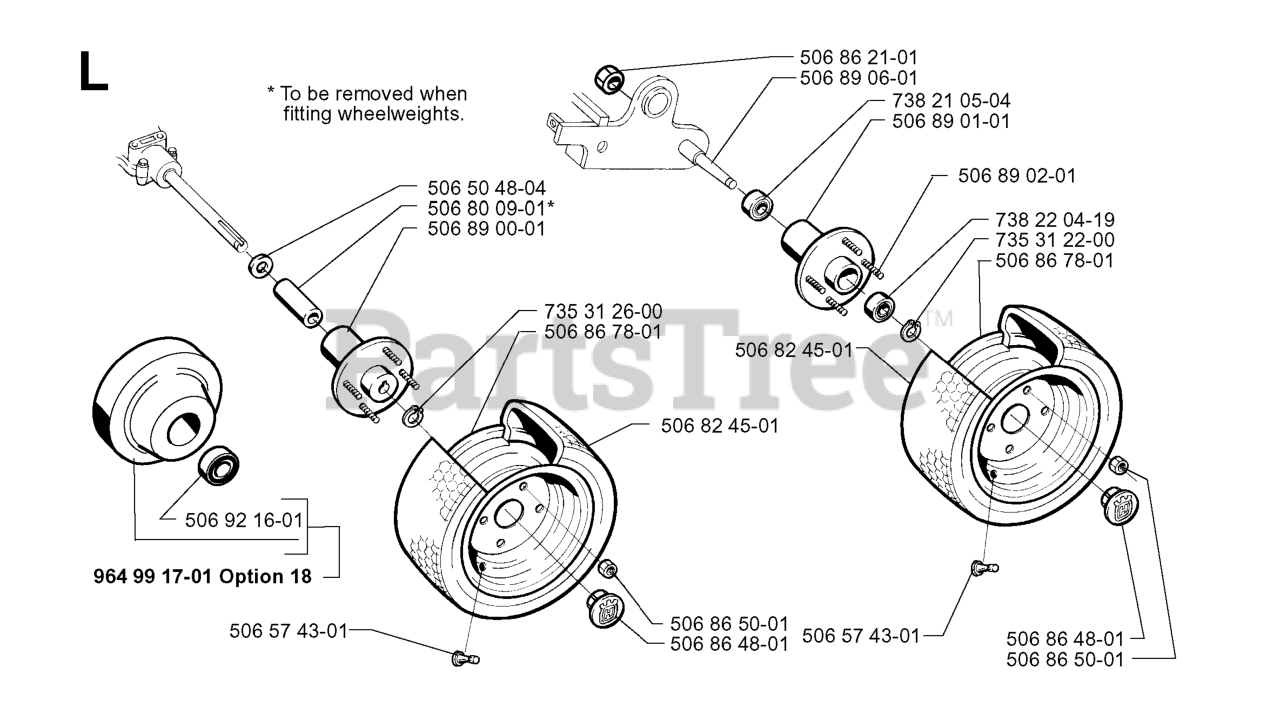

PF 20 - Husqvarna Proflex Swedish Riding Mower (1998-10) WHEELS & TIRES Parts Diagram

Proflex Swedish Riding Mower

WHEELS & TIRES Parts Diagram

  • Title

506 57 43-01

Husqvarna 506574301

VALVE

$

$

Not available

506 86 50-01

Husqvarna 506865001

NUT

$

$

Not available

506 89 01-01

Husqvarna 506890101

HUB

$

$

Not available

506 89 06-01

Husqvarna 506890601

SHAFT

$

$

Not available

506 89 00-01

Husqvarna 506890001

HUB

$

$

Not available

735 31 26-00

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, Qty 5

0

506 86 48-01

Husqvarna 506864801

COVER

$

$

Not available

738 21 05-04

Husqvarna 738210504

Ball Bearing 6005-2rs

$33.45

$

Usually ships in 3-10 days

0

735 31 22-00

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

964 99 17-01

Husqvarna 964991701

WHEEL WEIGHT, PROFLEX

Note: OPTION 18

$182.99

$

Usually ships in 3-10 days

0

506 86 78-01

Husqvarna 506867801

RIM

$

$

Not available

506 82 45-01

Husqvarna 506824501

TIRE

$

$

Not available

506 50 48-04

Husqvarna 506504804

WASHER

$

$

Not available

506 89 02-01

Husqvarna 506890201

BOLT

$

$

Not available

506 92 16-01

Husqvarna 506921601

BEARING

$

$

Not available

738 22 04-19

Husqvarna 738220419

BALL-BEARING 6204-2RS

$26.99

$

In Stock, Qty 11

0

506 80 09-01

Husqvarna 506800901

SLEEVE

Note: TO BE REMOVED WHEN FITTING WHEELWEIGHTS.

$

$

Not available

506 86 21-01

Husqvarna 506862101

NUT

$

$

Not available
