PG 400 - Husqvarna Planetary Floor Grinder (SN: 20142000002 & Above) (2014-06) ELECTRICAL Parts Diagram

Planetary Floor Grinder

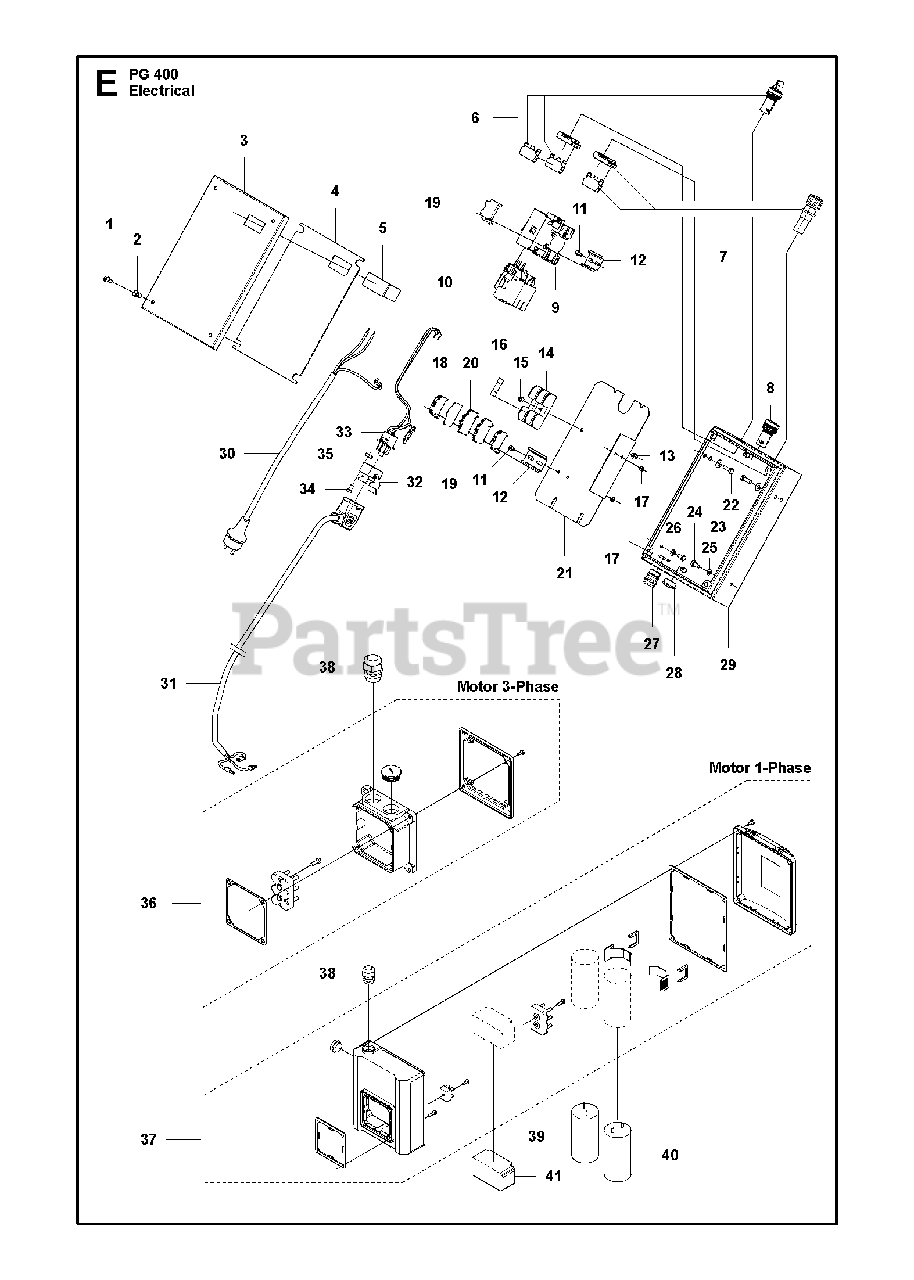

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 724 13 68-51

SCREW CRPANM

$1.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 521 88 66-01

RIVET

$1.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 586 47 43-01

LID

$105.99

$

In Stock, only 1 left!

0

3

Husqvarna Construction 586 47 43-03

LIDHDX version only

$71.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 586 46 70-01

SEALINGAttach with double-sided tape

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 584 29 63-01

HOUR METER

$272.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 586 99 15-01

SWITCH KIT

$199.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 586 99 16-01

SWITCH KIT

$110.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 584 29 71-01

LAMP230V

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 584 29 71-03

LAMP415V

$50.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 585 36 58-03

CONTACTOR400-480V, 50/60Hz

$312.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 585 36 58-01

CONTACTOR200-230V, 50/60Hz

$416.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 584 29 78-02

RELAY3 phase, 400-480V

$218.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 580 62 35-02

PROTECTION3 phase, 220-240V

$251.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 580 62 35-01

PROTECTION1 phase, 220-240V, 60Hz

$307.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 725 53 25-01

SCREW IHSCM

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 522 74 70-01

RAIL

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 731 23 16-01

HEXAGON NUT

$6.49

$

In Stock, Qty 18

0

14

Husqvarna Construction 525 88 26-01

FUSE HOLDER

$56.00

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 725 53 64-55

SCREW IHSCM

$13.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 525 63 81-01

FUSE

$105.99

$

Usually ships in 3-10 days

0

17

Husqvarna 732 25 14-01

HEXAGON LOCKING NUT

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 585 36 61-05

TERMINAL BLOCK

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 585 36 61-03

TERMINAL BLOCK

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 585 36 61-07

TERMINAL BLOCKUS, 1 phase, 100-120V

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 585 61 35-01

TERMINAL BLOCK2pcs for 1ph and 3pcs for 3ph machines

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 585 36 61-01

TERMINAL BLOCKUS, 1 phase, 120V

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 585 59 38-01

PLATE

$32.67

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 725 24 51-71

SCREW EHHM

$1.99

$

In Stock, Qty 5

0

23

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna Construction 725 23 66-71

SCREW EHHM

$0.99

$

In Stock, only 4 left!

0

25

Husqvarna 734 11 52-01

WASHER

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 735 21 53-01

LOCKWASHER

$2.49

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 575 48 98-01

GROMMET

$46.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 587 10 12-01

GROMMETUS, 1-phase

$32.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 586 58 69-01

PLUG

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 586 47 42-01

BOX

$187.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 586 47 42-02

BOXHDX version only

$133.00

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 23 78-01

CABLE3 phase

$193.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 23 78-02

CABLEAUS, 3 phase

$273.00

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 23 78-03

CABLEUS, 3 phase, 240V

$240.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 23 78-05

CABLEJP

$361.67

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 23 68-12

CABLEUS, 1 phase, 230V

$335.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 23 68-08

CABLEBR

$31.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 585 63 81-07

CABLE3 phase

$512.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 585 63 81-10

CABLEUS/CAN, 1 phase

$631.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 587 06 15-01

CONNECTOR

$61.55

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 590 50 35-01

CONNECTOR

$307.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 725 52 24-01

SCREW

$1.99

$

In Stock, Qty 7

0

35

Husqvarna Construction 732 25 10-01

HEXAGON LOCKING NUT

$1.99

$

In Stock, only 1 left!

0

36

Husqvarna Construction 587 17 39-02

ELECTRONIC BOX3 phase

$105.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 587 17 39-01

ELECTRONIC BOX1 phase

$142.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 587 17 42-02

GROMMET3 phase

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 587 17 42-01

GROMMET1 phase

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 587 16 33-01

GROMMET1 phase, US, 120V

$158.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 587 17 45-03

CAPACITOR230V 50/60Hz, run capacitor 45uF

$83.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 587 17 44-04

CAPACITOR230V 50/60Hz, start capacitor 250uF

$101.99

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 587 17 43-04

SWITCH1 ph, 230 V, 60 Hz

$429.99

$

Usually ships in 3-10 days

0
