PG 820 - Husqvarna Planetary Floor Grinder (SN: 0904-1 & Above) (2009-07) CHASSIS / FRAME Parts Diagram

Planetary Floor Grinder

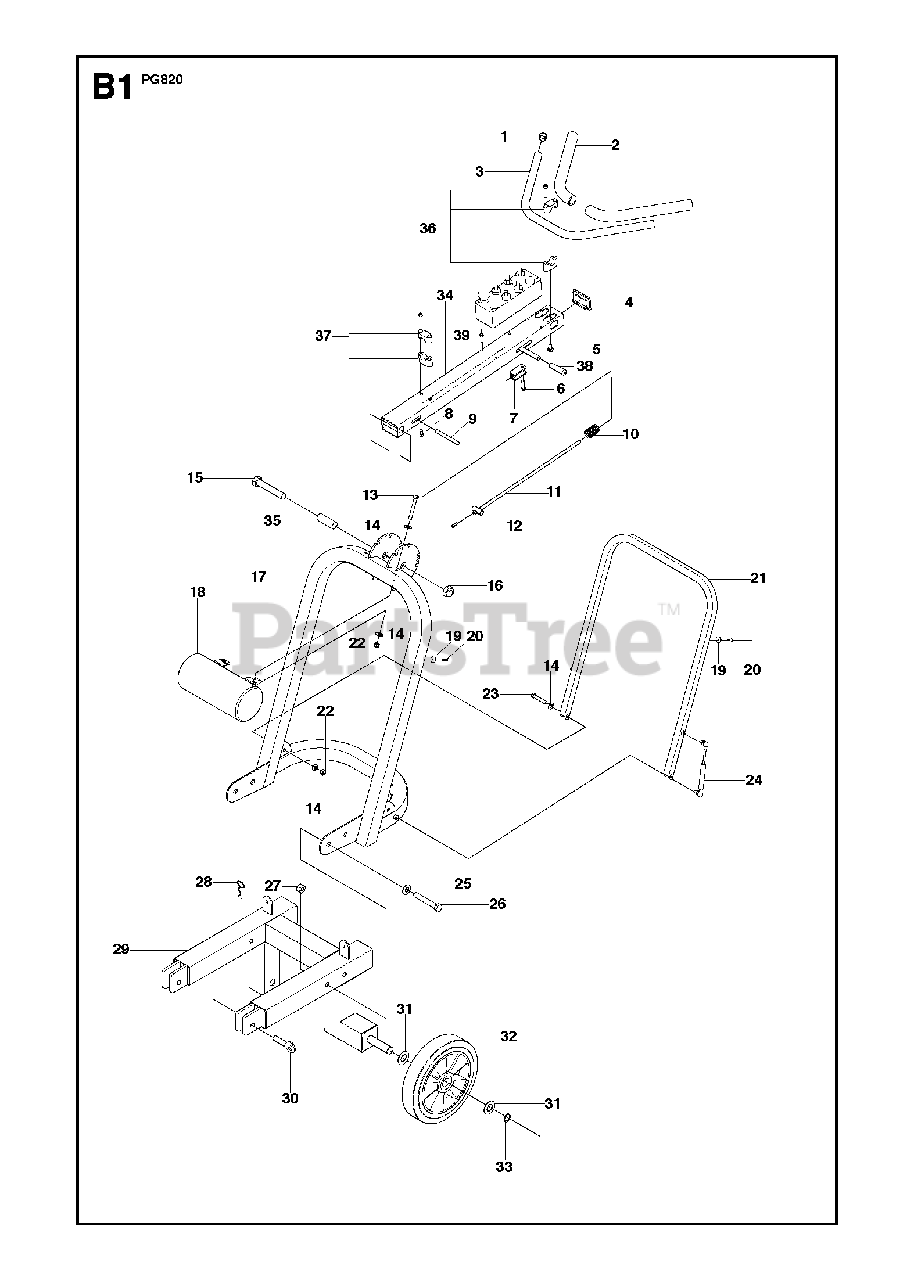

CHASSIS / FRAME Parts Diagram

  • Title

1

Husqvarna Construction 543 04 60-41

EMBOUT REF 320 GL 25/

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 502 54 49-22

RUBBER COVER

$55.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 502 54 49-20

HANDLE TUBE

$53.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 516 05 90-01

HUB CAP

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 725 24 89-76

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna 725 24 55-76

SCREW EHHM

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 502 54 49-05

BRACKET

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 725 54 45-01

SCREW IHSCM

$6.99

$

In Stock, Qty 7

0

9

Husqvarna Construction 516 05 93-01

PEN

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 502 54 49-27

COMPRESSION SPRING

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 516 05 95-01

ROD

$36.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 724 13 64-51

SCREW CRPANM

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 725 25 07-51

SCREW EHHM

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna Construction 504 75 07-01

SCREW

$62.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 504 75 06-01

LOCK NUT

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 502 54 47-01

CHASSIS

$946.17

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 504 73 04-01

WEIGHT

$561.17

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 516 05 96-01

BUMPER

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 521 88 65-01

SCREW

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 502 54 47-07

BAR

$113.99

$

Usually ships in 3-10 days

0

22

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 9

0

23

Husqvarna 725 25 02-51

SCREW EHHM

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 502 54 47-11

GAS SPRING

$228.99

$

Usually ships in 3-10 days

0

25

Husqvarna 734 11 86-01

WASHER

$8.49

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 504 75 13-01

SCREW EHHM

$22.17

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 731 23 24-01

HEXAGON NUT

$

$

Not available

28

Husqvarna 721 68 02-51

SPRING COTTER

$8.49

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 502 54 48-01

CHASSIS

$819.00

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 504 72 97-01

PEN

$238.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 504 75 14-01

WASHER

$15.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 502 54 50-01

WHEEL

$182.07

$

Usually ships in 3-10 days

0

33

Husqvarna 735 31 26-00

CIRCLIP

$3.49

$

In Stock, Qty 13

0

34

Husqvarna Construction 502 54 49-02

HANDLEBAR ASSY

$445.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 516 05 97-01

SLEEVE

$55.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 502 54 49-25

HANDLEBAR

$72.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 502 54 49-26

HANDLEBAR

$221.67

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 502 54 49-23

RUBBER COVER

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 504 75 20-01

SCREW CRCSFT

$3.49

$

Usually ships in 3-10 days
