PG 820 - Husqvarna Planetary Floor Grinder (SN: 0904-1 & Above) (2009-07) GRINDER Parts Diagram

Planetary Floor Grinder

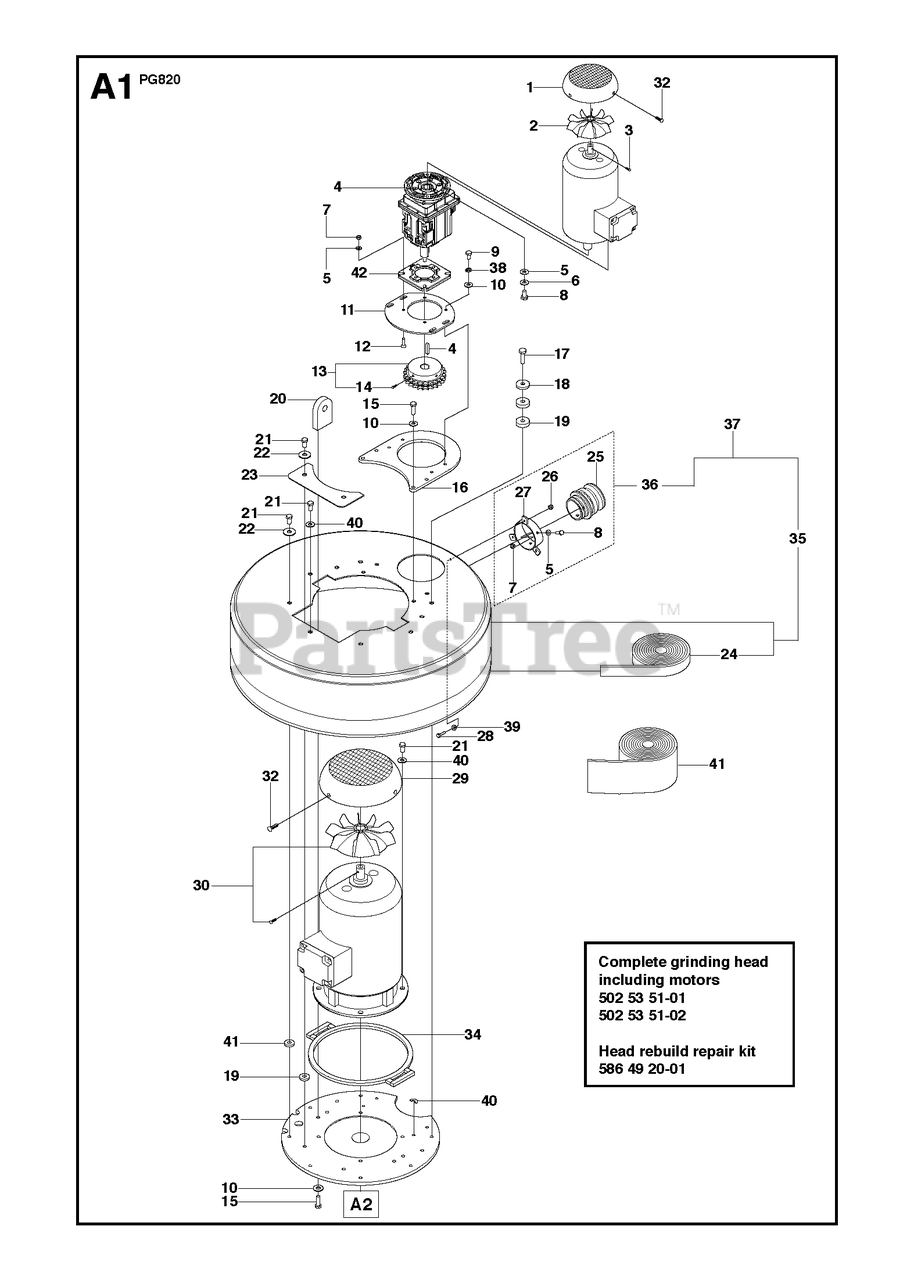

GRINDER Parts Diagram

  • Title

1

Husqvarna Construction 516 05 68-01

COVER

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 516 05 70-01

FAN

$26.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 516 05 71-01

PEN

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 580 99 98-01

GEARBOX ASSY

$730.99

$

Usually ships in 3-10 days

0

5

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 8

0

8

Husqvarna 725 24 53-76

SCREW EHHM

$8.49

$

In Stock, Qty 5

0

9

Husqvarna 725 24 91-76

SCREW EHHM

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna Construction 586 96 48-01

PLATE

$93.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 725 64 53-51

SCREW IHCSFM

$8.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 502 54 24-01

DRIVE SPROCKET

$199.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 728 54 51-05

SCREW IHSETM

$4.14

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 725 24 97-71

SCREW EHHM

$3.49

$

In Stock, only 2 left!

0

16

Husqvarna Construction 586 96 50-01

BRACKET

$

$

Currently unavailable

17

Husqvarna 725 25 02-51

SCREW EHHM

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 504 72 63-04

WASHER

$39.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 504 72 63-03

WASHER

$41.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 504 72 90-01

LIFTING LUG

$205.99

$

In Stock, only 2 left!

0

21

Husqvarna Construction 725 25 34-71

SCREW EHHM

$10.99

$

In Stock, only 2 left!

0

22

Husqvarna 734 11 78-01

WASHER
(Superseded to 532052160)

$

$

Not available

23

Husqvarna Construction 504 72 93-01

COVER PLATE

$60.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 504 74 76-01

STRIP

$

$

Currently unavailable

25

Husqvarna Construction 504 72 98-02

COUPLING

$166.99

$

In Stock, only 2 left!

0

26

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

27

Husqvarna Construction 522 44 83-01

BRACKET

$220.99

$

Usually ships in 3-10 days

0

28

Husqvarna 724 33 70-51

SCREW CRCSFM

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 516 05 72-01

COVER

$234.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 516 05 73-01

FAN

$39.99

$

Usually ships in 3-10 days

0

32

Husqvarna 723 13 20-51

SCREW SLCHM

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 502 55 11-01

PLATE

$2997.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 516 05 78-02

SEAL

$24.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 502 53 85-01

COVER

$273.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 522 44 82-01

PORT

$299.83

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 516 05 79-01

COVER

$1606.57

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

39

Husqvarna Construction 504 74 83-01

WASHER

$22.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 504 74 73-01

WASHER

$6.99

$

In Stock, only 2 left!

0

41

Husqvarna Construction 590 49 92-03

RUBBER SKIRT

$208.99

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 587 04 09-01

MOUNTING PLATE

$105.99

$

Usually ships in 3-10 days

0

Husqvarna Construction 502 53 51-01

GRINDING HEADEU

$40572.00

$

Usually ships in 3-10 days

0

Husqvarna Construction 502 53 51-02

GRINDING HEADUS

$26983.99

$

Usually ships in 3-10 days

0

Husqvarna Construction 586 49 20-01

REPAIR KIT

$2078.99

$

Usually ships in 3-10 days

0
