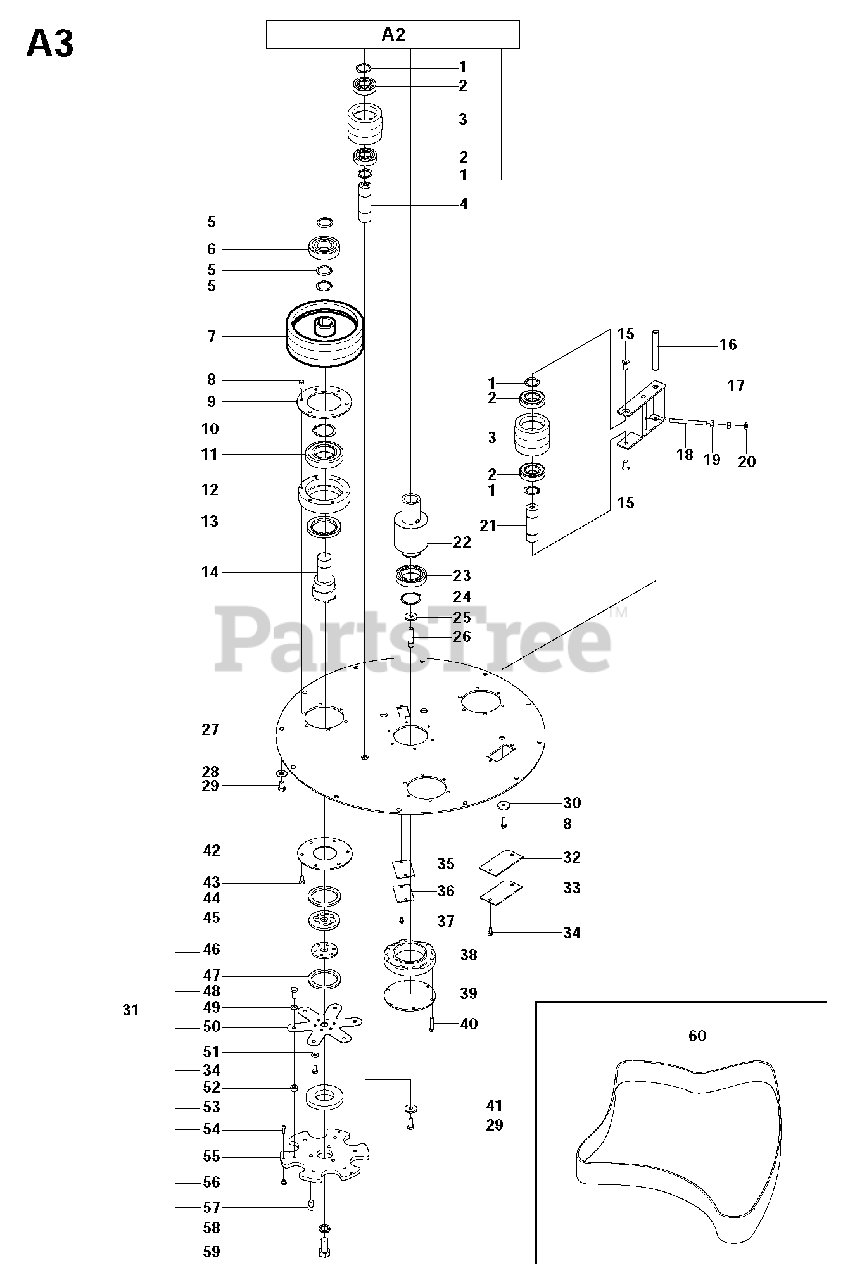

PG 820 - Husqvarna Planetary Floor Grinder (SN: 1108-8 & Before) (2008-09) GRINDING HEAD 3 Parts Diagram

Planetary Floor Grinder

GRINDING HEAD 3 Parts Diagram

  • Title

1

Husqvarna Construction 502 53 92-01

CIRCLIP

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 502 53 91-01

BALL BEARING

$88.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 502 53 68-01

PULLEY

$566.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 502 53 67-01

SHAFT

$398.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 502 53 94-01

CIRCLIP

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 502 53 93-01

BALL BEARING

$96.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 502 53 64-01

PULLEY

$275.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 725 24 51-76

SCREW EHHM

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 502 53 77-01

PLATE

$108.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 502 53 96-01

CIRCLIP

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 502 53 95-01

BALL BEARING

$223.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 502 53 70-01

BEARING HOUSING

$610.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 502 53 97-01

RADIAL SEAL

$67.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 502 53 66-01

PULLEY

$388.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 725 64 93-01

SCREW IHCSFM

$3.23

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 516 05 81-01

SHAFT

$22.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 502 53 82-01

FRAME

$391.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 516 05 82-01

ROD

$

$

Not available

19

Husqvarna Construction 731 23 20-01

HEXAGON NUT

$6.49

$

In Stock, Qty 6

0

20

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna Construction 502 53 69-01

SHAFT

$331.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 502 53 65-01

PULLEY

$193.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 502 53 87-01

BALL BEARING

$103.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 502 53 88-01

CIRCLIP

$27.99

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 504 72 63-03

WASHER

$41.99

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 504 74 88-01

SCREW IHSCM

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 502 53 75-01

BOTTOM PLATE

$302.87

$

Usually ships in 3-10 days

0

28

Husqvarna 734 11 78-01

WASHER
(Superseded to 532052160)

$

$

Not available

29

Husqvarna 725 25 32-71

SCREW EHHM

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 504 72 86-01

WASHER

$

$

Not available

31

Husqvarna Construction 502 53 40-01

SPRING

$709.99

$

In Stock, only 1 left!

0

32

Husqvarna Construction 516 05 84-01

SEAL

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 504 72 78-01

COVER PLATE

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 725 24 49-76

SCREW EHHM
(Superseded to 503200045)

$6.99

$

In Stock, Qty 9

0

35

Husqvarna Construction 516 05 85-01

SEAL

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 504 72 79-01

COVER PLATE

$22.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 725 23 66-71

SCREW EHHM

$0.99

$

In Stock, Qty 5

0

38

Husqvarna Construction 502 53 73-01

BEARING HOUSING

$119.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 502 53 78-01

COVER PLATE

$173.99

$

Usually ships in 3-10 days

0

40

Husqvarna 725 24 60-51

SCREW EHHM
(Superseded to 725246351)

$5.99

$

In Stock, only 3 left!

0

41

Husqvarna Construction 504 72 95-01

WASHER

$6.99

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 504 72 80-01

COVER PLATE

$89.99

$

Usually ships in 3-10 days

0

43

Husqvarna 725 24 53-76

SCREW EHHM

$8.49

$

In Stock, Qty 5

0

44

Husqvarna Construction 502 53 98-01

SEAL

$50.99

$

Usually ships in 3-10 days

0

45

Husqvarna Construction 502 53 40-06

HUB

$100.99

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 502 53 40-04

SPACER PLATE

$67.99

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 502 53 40-05

RUBBER RING

$8.63

$

Usually ships in 3-10 days

0

48

Husqvarna 725 24 93-76

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

49

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna Construction 502 53 42-01

SPRING

$100.99

$

Usually ships in 3-10 days

0

52

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

53

Husqvarna Construction 502 53 40-14

SPACER

$24.99

$

Usually ships in 3-10 days

0

54

Husqvarna Construction 502 53 43-01

RING

$67.99

$

Usually ships in 3-10 days

0

55

Husqvarna Construction 725 53 70-51

SCREW IHSCM

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna Construction 502 53 40-02

PLATE

$144.99

$

Usually ships in 3-10 days

0

57

Husqvarna Construction 502 53 44-01

LOCK

$5.83

$

Usually ships in 3-10 days

0

58

Husqvarna Construction 502 54 23-01

DRIVE CABLE

$2226.99

$

Usually ships in 3-10 days

0

59

Husqvarna Construction 504 74 84-01

SCREW IHSCM

$9.99

$

In Stock, only 3 left!

0

60

Husqvarna Construction 504 74 96-03

LOCKWASHER

$12.99

$

In Stock, Qty 20+

0

50

Husqvarna Construction 504 74 89-01

SCREW EHHM

$22.99

$

Usually ships in 3-10 days

0
