PH 65Y21RHP (961420037-00) - Poulan Pro Walk-Behind Mower (2007-01) Drive Parts Diagram

Walk-Behind Mower

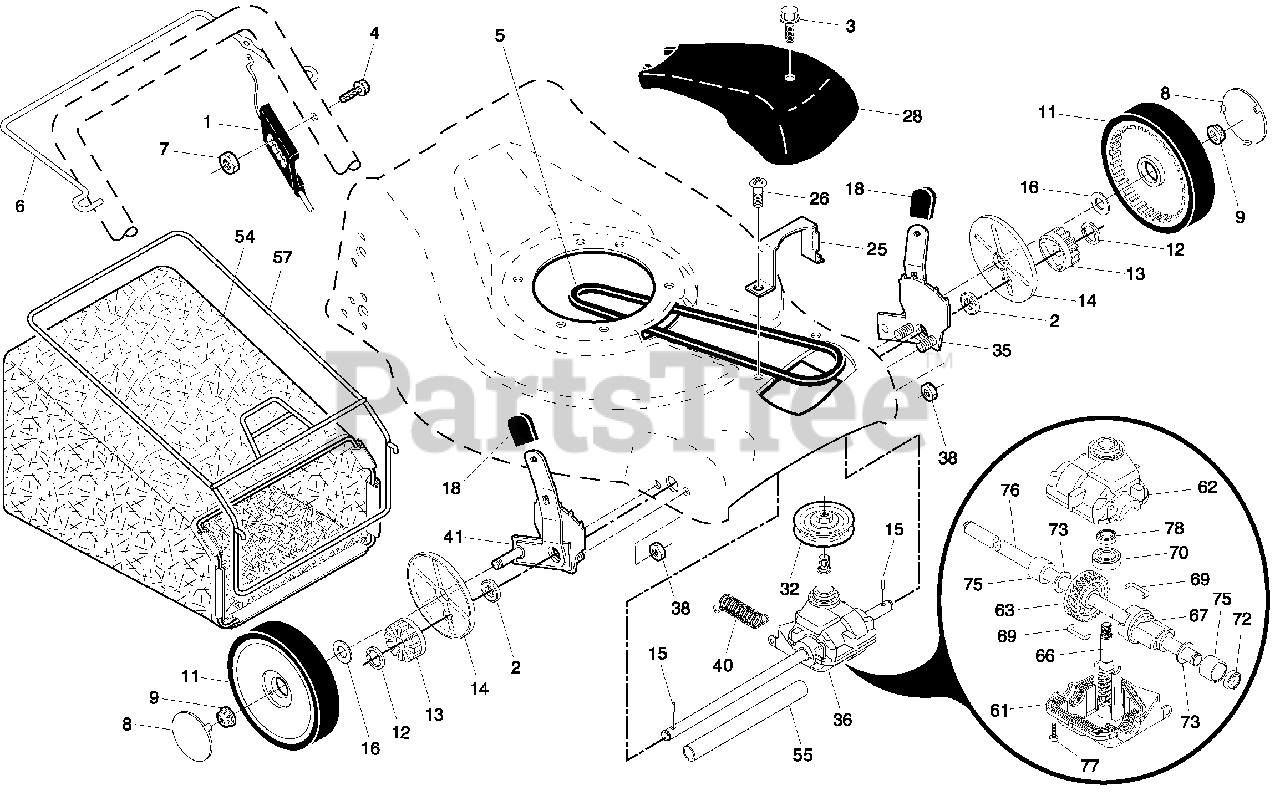

Drive Parts Diagram

  • Title

1

Electrolux/AYP 407816

Drive Control Assembly
(Superseded to 532407816)

$37.99

$

In Stock, only 3 left!

0

2

Electrolux/AYP 167387

Bearing, Wheel Adjuster
(Superseded to 532167387)

$7.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 199687

Screw
(Superseded to 532199687)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 194149

V-Belt
(Superseded to 532194149)

$24.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 194185X421

Bar, Drive Control
(Superseded to 532435281)

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 191730

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 8

0

8

Electrolux/AYP 407793X421

Hubcap
(Superseded to 532438319)

$

$

Not available

9

Murray 145212

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 180775

Wheel & Tire Assembly, Front, 8"
(Superseded to 574048301)

$

$

Not available

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 403849

Pinion, Gear
(Superseded to 532403849)

$6.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 191017

Pawl, Drive
(Superseded to 532404845)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 67725

Washer 1/2 x 1-1/2 x .134
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 701037X421

Selector Knob
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 404843X004

Belt Keeper
(Superseded to 532431711)

$

$

Not available

26

Electrolux/AYP 163409

Screw
(Superseded to 532163409)

$7.49

$

In Stock, Qty 13

0

28

Electrolux/AYP 194406X428

Drive Cover
(Superseded to 532437165)

$15.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 409108

Kit, Wheel Adjuster, LH
(Superseded to 581497908)

Note: (Includes Knob and Bearing)

$17.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 404833

Gear Case Assembly, Complete
(Superseded to 532404833)

$120.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800400

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 194018

Pulley, Drive
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

40

Electrolux/AYP 406558

Spring, Return
(Superseded to 532406558)

$8.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 409109

Kit, Wheel Adjuster, RH
(Superseded to 581497907)

Note: (Includes Knob and Bearing)

$17.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 412214

Grassbag Assembly

$

$

Not available

55

Electrolux/AYP 175739

Driveshaft Cover
(Superseded to 532175739)

$

$

Not available

57

Electrolux/AYP 401802

Frame, Grassbag
(Superseded to 532411950)

$

$

Not available

60

Electrolux/AYP 410726

Case, Upper
(Superseded to 532410726)

$15.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 410949

Shaft, Output
(Superseded to 532410949)

$48.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 183508

Seal, Output Shaft
(Superseded to 532183508)

$6.49

$

In Stock, only 2 left!

0

63

Electrolux/AYP 183511

Bushing
(Superseded to 532183511)

$4.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 183514

Seal, Worm Shaft
(Superseded to 532183514)

$7.49

$

In Stock, only 2 left!

0

66

Electrolux/AYP 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 410729

Gear, 28 Teeth
(Superseded to 532410729)

$9.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 410732

Fixed Dog Clutch

$

$

Not available

69

Electrolux/AYP 410733

Pin
(Superseded to 532412746)

$4.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 410730

Movable Dog Clutch
(Superseded to 532410730)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 183513

Screw, Case
(Superseded to 532183513)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 410734

Case, Lower
(Superseded to 532410734)

$15.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 410731

Spring, Leaf
(Superseded to 532410731)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 410727

Shaft, Worm
(Superseded to 532410727)

$24.99

$

Usually ships in 3-10 days

0
