PHD 200 (59A40037727) - Cub Cadet Yanmar Tractor Post Hole Digger Driveline Version 03 Parts Diagram

Tractor Post Hole Digger

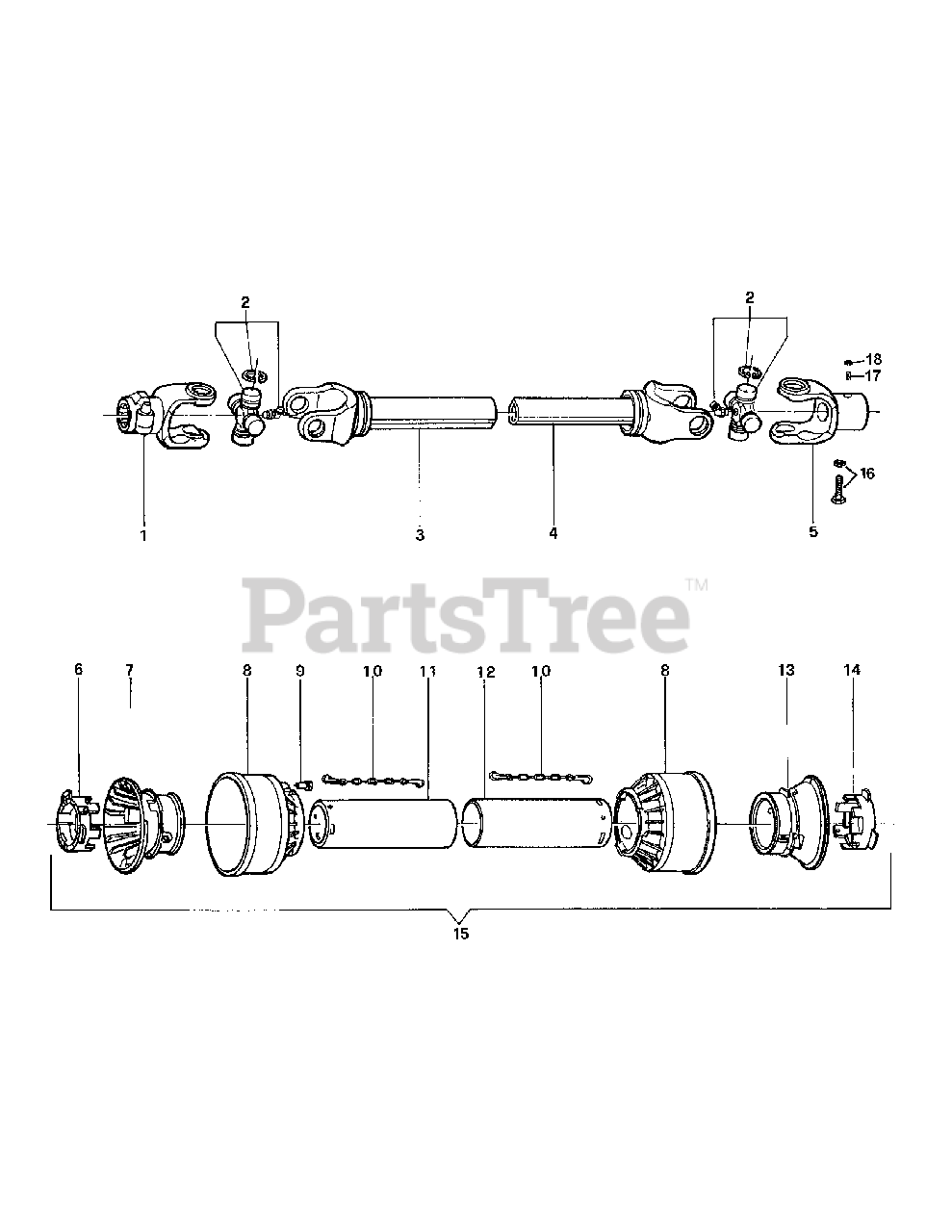

Driveline Version 03 Parts Diagram

  • Title

1

Cub Cadet YS-023-001E

PTO yoke (tractor end)
(Superseded to BF-023-001E)

$

$

Not available

2

Cub Cadet YS-013-130E

Cross and bearing
(Superseded to BF-013-130E)

$

$

Not available

3

Cub Cadet YS-503-318B

Outer tube with yoke

$

$

Not available

4

Cub Cadet YS-503-319B

Inner tube with yoke

$

$

Not available

5

Cub Cadet YS-503-355B

PTO yoke (implement end)

$

$

Not available

6

Cub Cadet YS-503-335B

Outer locking ring

$

$

Not available

7

Cub Cadet YS-503-323B

Outer tube rigid cone
(Superseded to BF-503-323B)

$

$

Not available

8

Cub Cadet YS-503-324B

Outer cone
(Superseded to BF-503-324B)

$

$

Not available

9

Cub Cadet YS-503-325B

Pin
(Superseded to BF-503-325B)

$

$

Not available

10

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

11

Cub Cadet YS-503-356B

Female tube shield

$

$

Not available

12

Cub Cadet YS-503-357B

Male tube shield

$

$

Not available

13

Cub Cadet YS-503-328B

Inner tube rigid cone
(Superseded to BF-503-328B)

$

$

Not available

14

Cub Cadet YS-503-337B

Inner locking ring

$

$

Not available

15

Cub Cadet YS-503-358B

Complete shielding

$

$

Not available

16

Cub Cadet YS-503-254B

Shear bolt and nut 3/8"x3" grade 2

$

$

Not available

17

Cub Cadet YS-501-568B

Set screw 1/4 inch
(Superseded to BF-501-568B)

$

$

Not available

18

Cub Cadet YS-503-425B

Hex nut 1/4 inch

$

$

Not available

Cub Cadet YS-050-0452

Driveline complete PHD200

Note: Not shown

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer shield

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" outer tube

Note: Not shown

$

$

Not available
