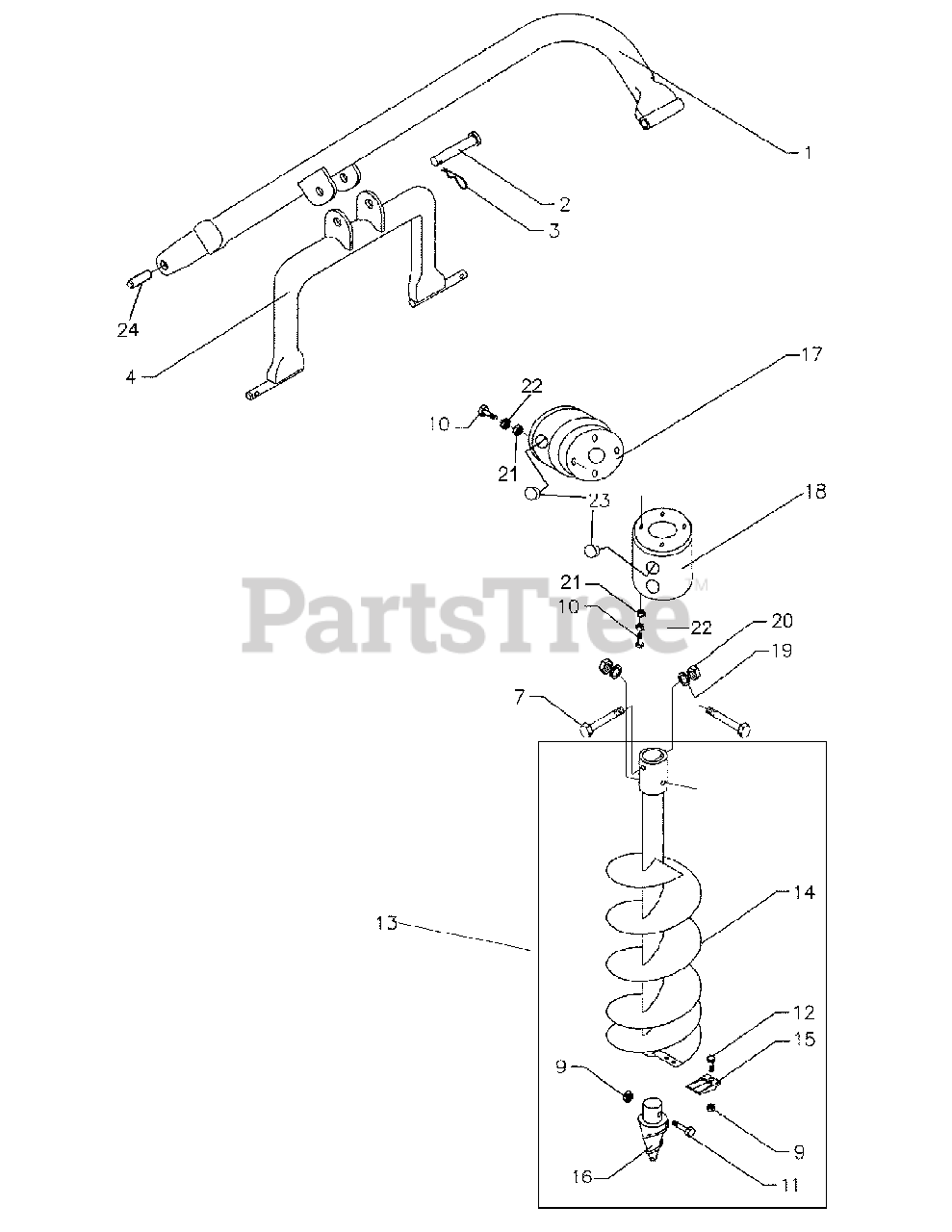

PHD 200 (59A40037727) - Cub Cadet Yanmar Tractor Post Hole Digger Frame Version 03 Parts Diagram

Tractor Post Hole Digger

Frame Version 03 Parts Diagram

  • Title

1

Cub Cadet YS-501-534B

Boom Assembly PHD200
(Superseded to BF-501-534B)

$

$

Not available

2

Cub Cadet YS-501-544B

Pin 1"x6"
(Superseded to BF-501-544B)

$

$

Not available

3

Cub Cadet YS-001-8266

Lynch pin
(Superseded to BF-001-8266)

$

$

Not available

4

Cub Cadet YS-501-535B

Yoke PHD200
(Superseded to BF-501-535B)

$

$

Not available

7

Cub Cadet YS-001-5122

Bolt M12x90

$

$

Not available

9

Cub Cadet YS-003-0064

Stover nut M12 (9" Auger)
(Superseded to BF-003-0064)

$

$

Not available

10

Cub Cadet YS-503-869B

Bolt 5/16"x¾"

$

$

Not available

11

Cub Cadet YS-009-1495

Bolt M12x80
(Superseded to BF-009-1495)

$

$

Not available

12

Cub Cadet YS-001-5255

Bolt M12x30 (9" Auger)
(Superseded to BF-001-5255)

$

$

Not available

13

Cub Cadet YS-209-531

9" Double flighted auger complete 48"

$

$

Not available

15

Cub Cadet YS-501-540B

Cutting knife (9" Auger)

$

$

Not available

16

Cub Cadet YS-501-541B

Auger point - standard

$

$

Not available

16

Cub Cadet YS-503-928B

Auger point - fish tai l

$

$

Not available

17

Cub Cadet YS-001-8038

Gearbox guard

$

$

Not available

18

Cub Cadet YS-001-8032

Auger guard

$

$

Not available

19

Cub Cadet YS-000-1077

Lock washer Ø12
(Superseded to BF-000-1077)

$

$

Not available

20

Cub Cadet YS-000-1106

Hex nut M12
(Superseded to BF-000-1106)

$

$

Not available

21

Cub Cadet YS-160-5021

Flat washer 5/16"

$

$

Not available

22

Cub Cadet YS-160-5017

Lock washer 5/16"

$

$

Not available

23

Cub Cadet YS-000-6647

Cap
(Superseded to BF-000-6647)

$

$

Not available

24

Cub Cadet YS-001-8010

Bushing cat. 2-1

$

$

Not available

Cub Cadet YS-950-356B

Safety decal set post hole digger

Note: Not shown

$

$

Not available

Cub Cadet YS-950-109B

Decal "DANGER - Avoid injury from PTO"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-222B

Decal "DANGER - Rotating parts hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-223B

Decal "DANGER - To prevent serious injury or death #1"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-224B

Decal "DANGER - To prevent serious injury or death #2"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-212B

Decal "DANGER - Rotating auger, stay away"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-213B

Decal "DANGER - Replace shields before using"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-360B

Decal "DANGER - Guard missing do not operate"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-445B

Decal "Cub Cadet Yanmar" Large

Note: Not shown

$

$

Not available

Cub Cadet YS-950-458B

Decal "PHD200"

Note: Not shown

$

$

Not available
