PHD 200 (59A40037727) - Cub Cadet Yanmar Tractor Post Hole Digger Gearbox Version 03 Parts Diagram

Tractor Post Hole Digger

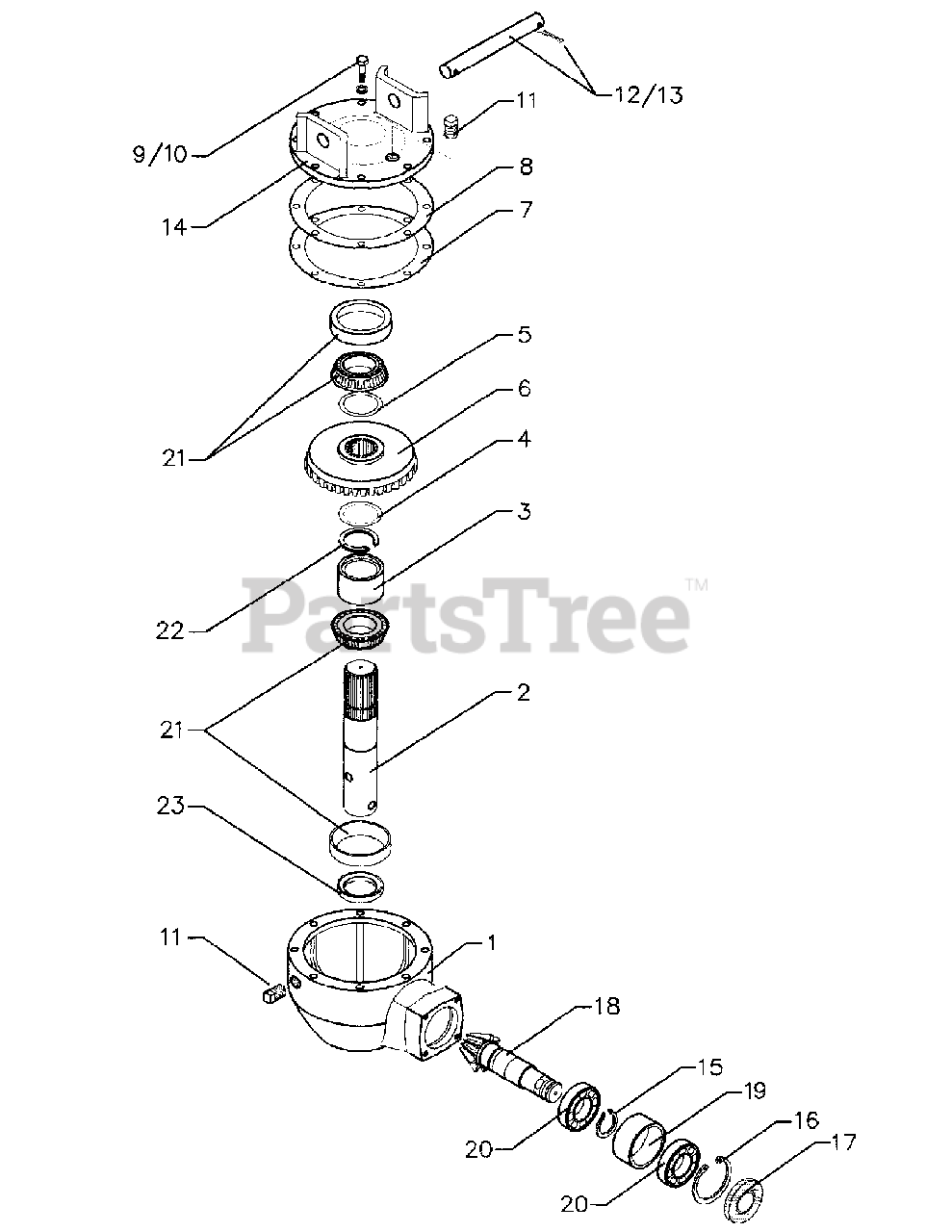

Gearbox Version 03 Parts Diagram

  • Title

1

Cub Cadet YS-502-272B

Housing PHD200
(Superseded to BF-502-272B)

$

$

Not available

2

Cub Cadet YS-502-273B

Output shaft PHD200
(Superseded to BF-502-273B)

$

$

Not available

3

Cub Cadet YS-502-274B

Output bearing spacer PHD200
(Superseded to BF-502-274B)

$

$

Not available

4

Cub Cadet YS-502-251B

Gear adjusting shim (0.30)
(Superseded to BF-502-251B)

$

$

Not available

5

Cub Cadet YS-502-252B

Gear adjusting shim (0.50)
(Superseded to BF-502-252B)

$

$

Not available

6

Cub Cadet YS-502-275B

Output gear (33 teeth) PHD200
(Superseded to BF-502-275B)

$

$

Not available

7

Cub Cadet YS-502-276B

Output cap gasket (0.10) PHD200
(Superseded to BF-502-276B)

$

$

Not available

8

Cub Cadet YS-502-277B

Output cap gasket (0.25) PHD200
(Superseded to BF-502-277B)

$

$

Not available

9

Cub Cadet YS-000-1280

Lock washer Ø10
(Superseded to BF-000-1280)

$

$

Not available

10

Cub Cadet YS-000-1278

Bolt M10x30
(Superseded to BF-000-1278)

$

$

Not available

11

Cub Cadet YS-502-257B

Pipe plug ½"
(Superseded to BF-502-257B)

$

$

Not available

12

Cub Cadet YS-502-258B

Hanger shaft
(Superseded to BF-502-258B)

$

$

Not available

13

Cub Cadet YS-502-259B

Cotter pin
(Superseded to BF-502-259B)

$

$

Not available

14

Cub Cadet YS-502-278B

Hanger cap PHD200
(Superseded to BF-502-278B)

$

$

Not available

15

Cub Cadet YS-004-2122

Retaining ring
(Superseded to BF-004-2122)

$

$

Not available

16

Cub Cadet YS-002-5329

Retaining ring
(Superseded to BF-002-5329)

$

$

Not available

17

Cub Cadet YS-003-0211

Oil seal 35-72-10
(Superseded to BF-003-0211)

$

$

Not available

18

Cub Cadet YS-502-281B

Pinion gear and shaft (11 teeth) PHD200
(Superseded to BF-502-281B)

$

$

Not available

19

Cub Cadet YS-502-266B

Bearing spacer
(Superseded to BF-502-266B)

$

$

Not available

20

Cub Cadet YS-002-5332

Bearing 6207
(Superseded to BF-002-5332)

$

$

Not available

21

Cub Cadet YS-000-4539

Bearing 30210

$

$

Not available

22

Cub Cadet YS-502-269B

Retaining ring
(Superseded to BF-502-269B)

$

$

Not available

23

Cub Cadet YS-502-270B

Output seal 50x70x12
(Superseded to BF-502-270B)

$

$

Not available

Cub Cadet YS-502-282B

Gearbox 540 rpm complete PHD200

Note: Not shown

$

$

Not available
