PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Fuel System Parts Diagram

High Pressure, Stationary Sprayer

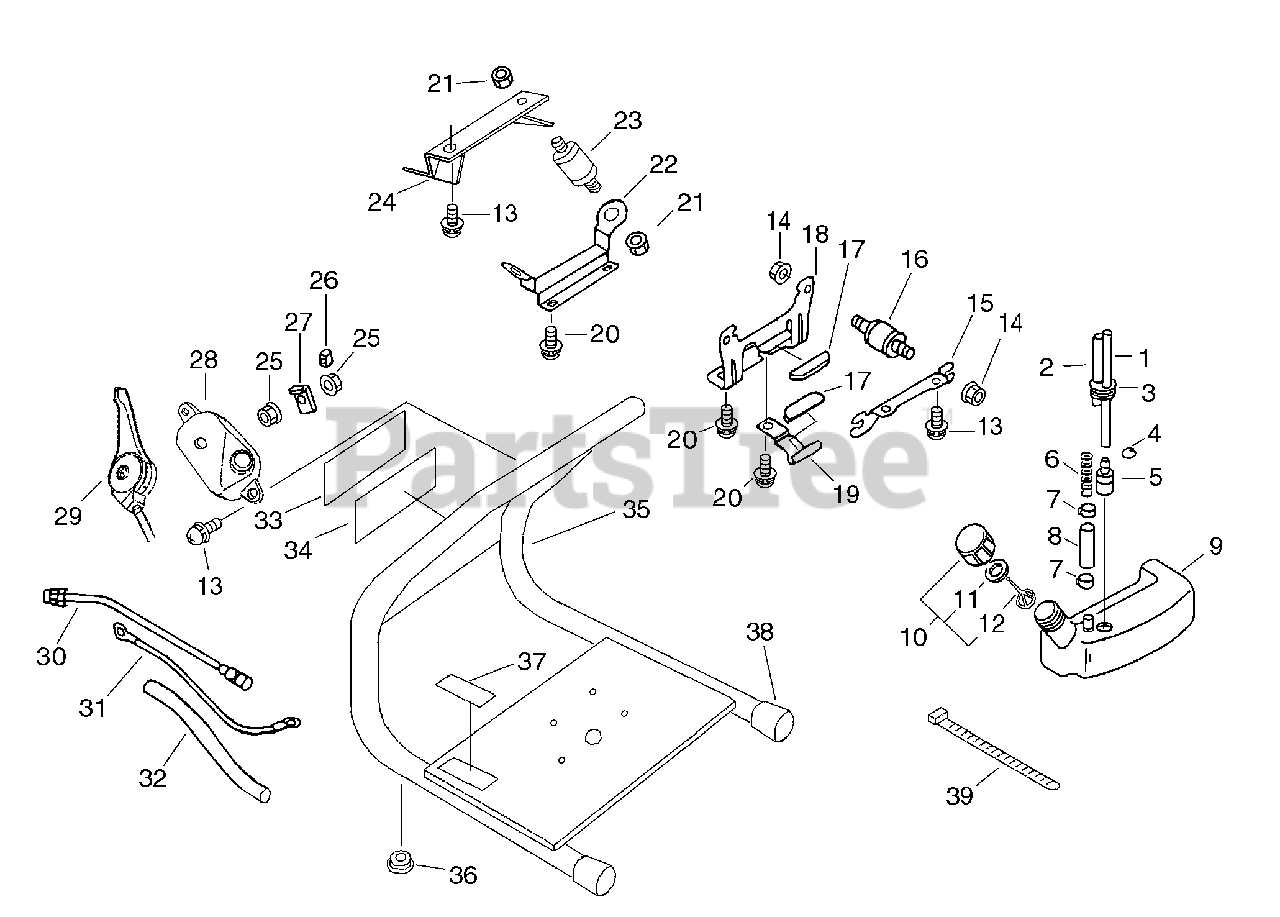

Fuel System Parts Diagram

  • Title

1

Echo 43721015130

PIPE, FUEL 3×6×200

$

$

Not available

2

Echo 13201014010

PIPE, FUEL 3×6×100

$3.49

$

In Stock, Qty 5

0

3

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

6

Echo 13222107410

SPRING, COMPRESSION

$

$

Currently unavailable

7

Echo 13201314010

CLIP 10.5 MM

$3.99

$

Usually ships in 2-4 days

0

8

Echo V471000020

PIPE, FUEL

$

$

Currently unavailable

9

Echo 13101014012

TANK, FUEL

$

$

Currently unavailable

10

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

$7.49

$

In Stock, Qty 9

0

11

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

12

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

13

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

14

Echo 70616019950

NUT, FLANGE

$

$

Currently unavailable

15

Echo 70616018450

BRACKET, ENGINE

$4.99

$

Usually ships in 2-4 days

0

16

Echo 70616017870

CUSHION

$11.99

$

Usually ships in 2-4 days

0

17

Echo 70616016770

CUSHION, FUEL TANK

$3.49

$

Usually ships in 2-4 days

0

18

Echo 70616015430

BRACKET, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

19

Echo 70616021450

BRACKET, FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

20

Echo 90024206014

SCREW 6×14

$0.99

$

In Stock, Qty 7

0

21

Echo 70604054960

NUT

$

$

Currently unavailable

22

Echo 70616023450

PLATE, ANGLE

$14.99

$

Usually ships in 2-4 days

0

23

Echo 70604041870

CUSHION

$13.99

$

Usually ships in 2-4 days

0

24

Echo 70616025450

PLATE, ANGLE

$7.49

$

Usually ships in 2-4 days

0

25

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

26

Echo 70616036870

GROMMET

$1.99

$

Usually ships in 2-4 days

0

27

Echo 70616027050

PLATE, FIXED

$6.49

$

Usually ships in 2-4 days

0

28

Echo 17812314010

BRACKET, THROTTLE

$13.99

$

Usually ships in 2-4 days

0

29

Echo 70616029260

CONTROL, THROTTLE
(Superseded to 70616029261)

$35.99

$

Usually ships in 2-4 days

0

30

Echo 70604047001

SWITCH, STOP

$10.99

$

Usually ships in 2-4 days

0

31

Echo 70616032001

LEAD

$6.49

$

Usually ships in 2-4 days

0

32

Echo V475004041

TUBE

$

$

Currently unavailable

33

Echo X502000550

LABEL - ECHO

$

$

Currently unavailable

34

Echo X543004050

LABEL, MODEL

$

$

Currently unavailable

35

Echo C600000240

FRAME

$106.99

$

Usually ships in 2-4 days

0

36

Echo V145000110

GROMMET

$

$

Currently unavailable

37

Echo 89061713210

LABEL - CAUTION

$

$

Currently unavailable

38

Echo V421000000

CAP, CUSHION

$

$

Currently unavailable

39

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0
