PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Muffler, Intake Parts Diagram

High Pressure, Stationary Sprayer

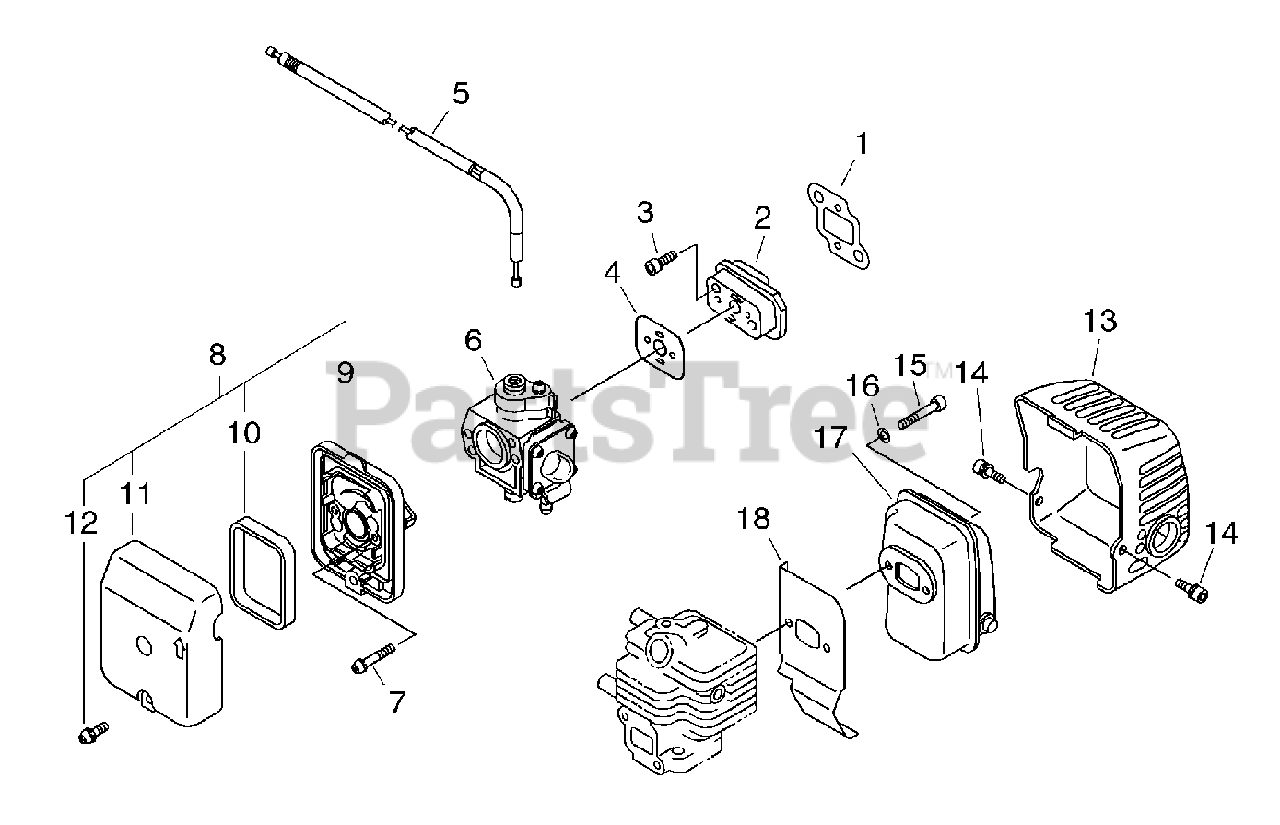

Muffler, Intake Parts Diagram

  • Title

1

Echo 13001055930

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0

2

Echo 13001756431

INSULATOR, INTAKE

$15.99

$

In Stock, only 2 left!

0

3

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 13001056330

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

5

Echo 70613005230

CABLE, THROTTLE

$13.99

$

Usually ships in 2-4 days

0

6

Echo 12420013220

CARBURETOR TK KR8PR-1B

$161.99

$

Usually ships in 2-4 days

0

7

Echo 90024205050

SCREW 5×50

$0.99

$

Usually ships in 2-4 days

0

8

Echo 13030013411

FILTER ASSY, AIR

$25.99

$

Usually ships in 2-4 days

0

9

Echo 13030713410

CASE, AIR FILTER

$14.99

$

Usually ships in 2-4 days

0

10

Echo 13031013410

FILTER, AIR #30

$5.99

$

Usually ships in 2-4 days

0

11

Echo 13030813410

COVER, AIR FILTER

$10.99

$

Usually ships in 2-4 days

0

12

Echo P004003520

SCREW 5×16

$

$

Currently unavailable

13

Echo 14562156530

COVER, MUFFLER

$58.99

$

Usually ships in 2-4 days

0

14

Echo 90010605008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

15

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

16

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 14561062630

MUFFLER

$117.99

$

Usually ships in 2-4 days

0

18

Echo 14551055932

HEAT SHIELD, EXHAUST

$8.49

$

Usually ships in 2-4 days

0
