PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Nozzle Unit Parts Diagram

High Pressure, Stationary Sprayer

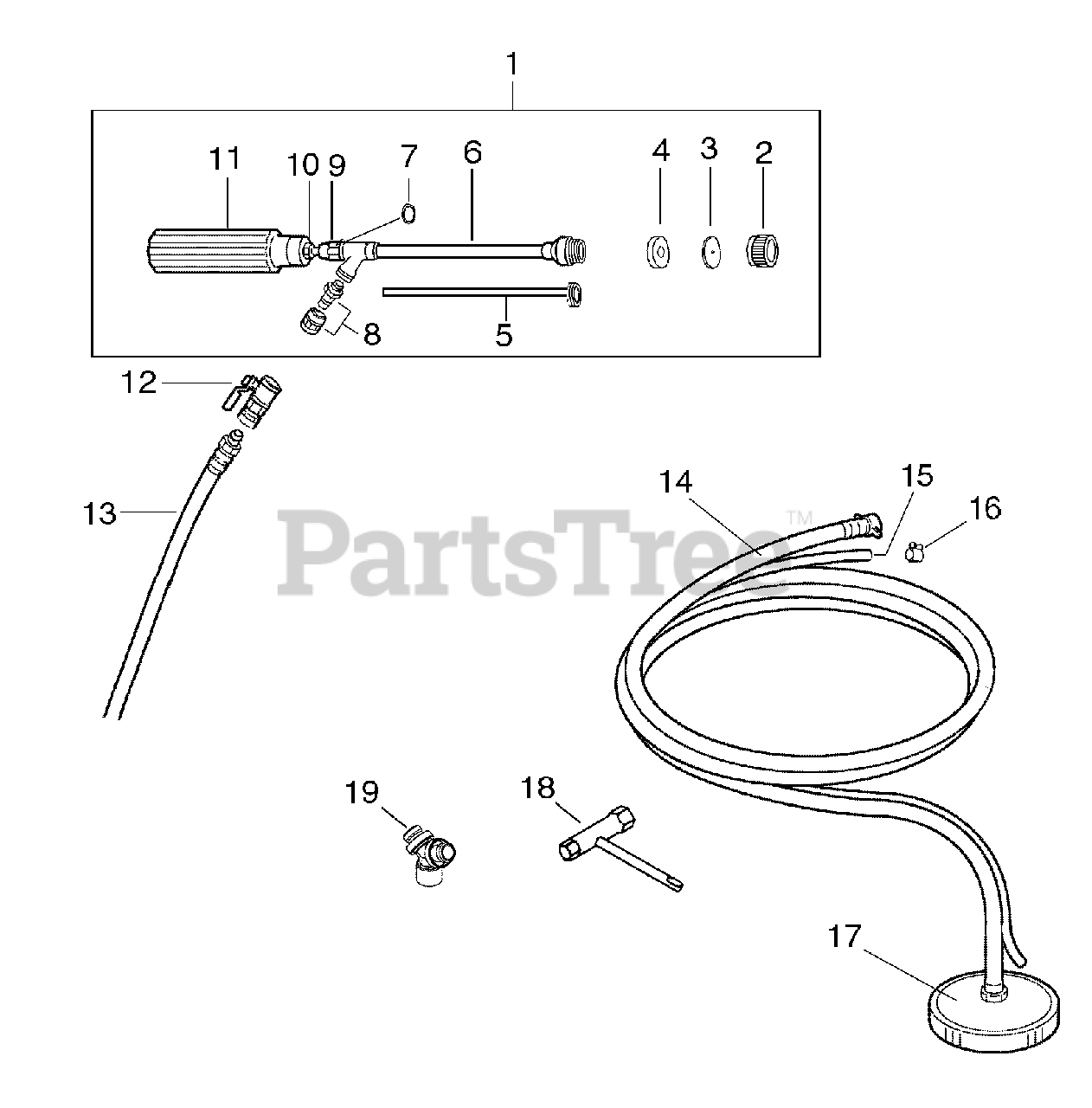

Nozzle Unit Parts Diagram

  • Title

1

Echo K033000070

NOZZLE

$

$

Not available

2

Echo P022034720

CAP

$24.99

$

Usually ships in 2-4 days

0

3

Echo P022034710

DISK, NOZZLE

$9.49

$

Usually ships in 2-4 days

0

4

Echo P022034700

PIPE, PACKING

$9.49

$

Usually ships in 2-4 days

0

5

Echo P022034680

ADJUSTER, NOZZLE

$56.99

$

Usually ships in 2-4 days

0

6

Echo P022034690

PIPE, NOZZLE

$47.99

$

Usually ships in 2-4 days

0

7

Echo P022034670

O-RING

$1.99

$

Usually ships in 2-4 days

0

8

Echo P022034630

COUPLING, HOSE

$67.99

$

Usually ships in 2-4 days

0

9

Echo P022034660

NUT

$13.99

$

Usually ships in 2-4 days

0

10

Echo P022034650

NUT, LOCK

$24.99

$

Usually ships in 2-4 days

0

11

Echo P022034640

GRIP

$26.99

$

Usually ships in 2-4 days

0

12

Echo E245000010

PETCOCK

$13.99

$

Usually ships in 2-4 days

0

13

Echo E260000140

HOSE

$

$

Currently unavailable

K042000230

Echo K042000230

HOSE, 10

$59.99

$

Usually ships in 2-4 days

0

15

Echo V465000320

HOSE

$11.99

$

Usually ships in 2-4 days

0

16

Echo V495000321

BAND

$1.49

$

Usually ships in 2-4 days

0

17

Echo K032000060

STRAINER

$17.99

$

Usually ships in 2-4 days

0

18

Echo 89541003930

T-WRENCH 10×19 L= 130
(Superseded to 89541039130)

$4.49

$

In Stock, only 4 left!

0

19

Echo K531000000

ADAPTOR

$25.99

$

Usually ships in 2-4 days

0
