PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Piston, Cylinder Parts Diagram

High Pressure, Stationary Sprayer

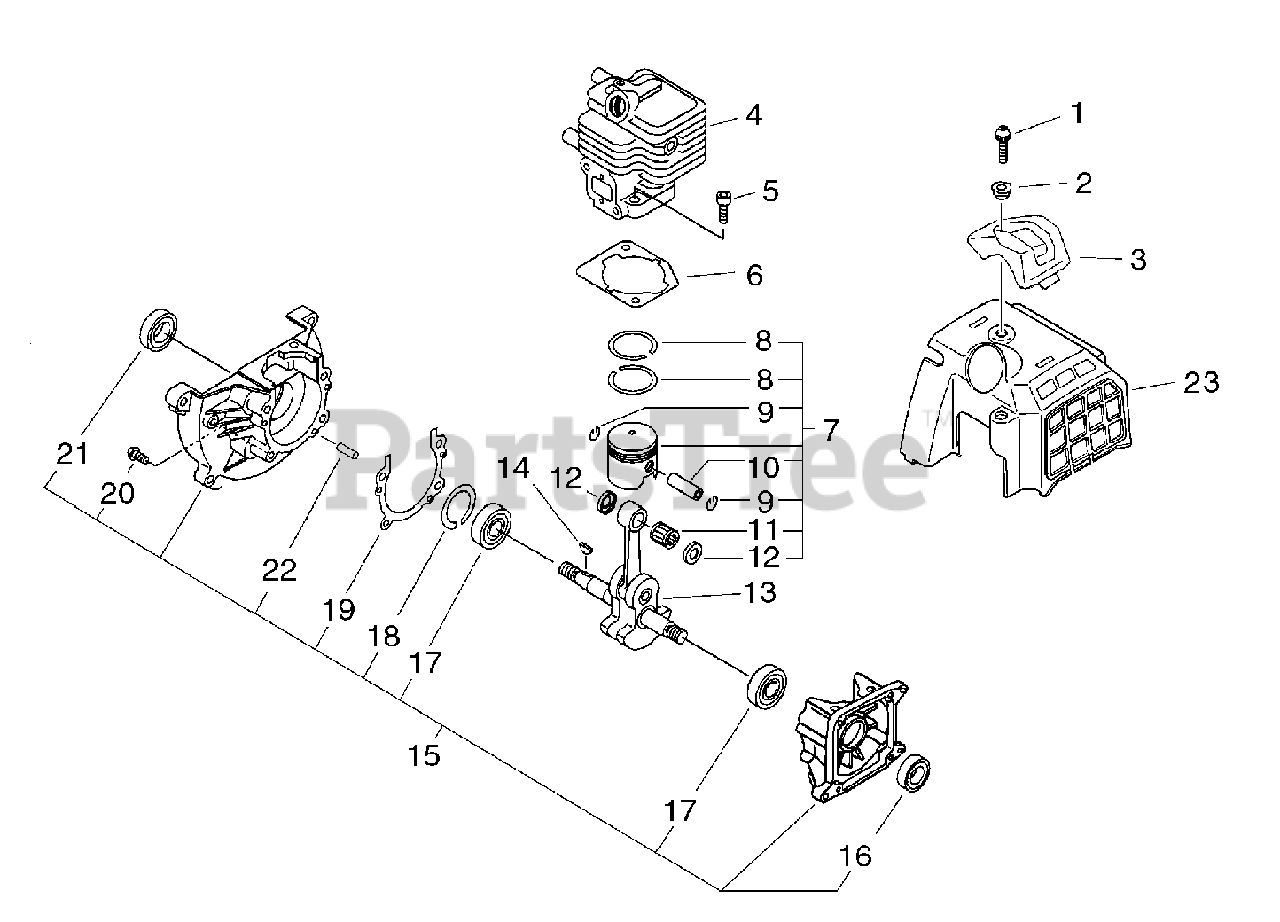

Piston, Cylinder Parts Diagram

  • Title

1

Echo 90023905022

SCREW 5×22

$0.99

$

Usually ships in 2-4 days

0

2

Echo V353000020

COLLAR 5

$1.99

$

In Stock, Qty 20+

0

3

Echo 15990555930

GUARD, TOP

$12.99

$

Usually ships in 2-4 days

0

4

Echo 10101155931

CYLINDER

$193.99

$

Usually ships in 2-4 days

0

5

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

6

Echo 10101055930

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

7

Echo P021014440

PISTON KIT

$103.99

$

Usually ships in 2-4 days

0

8

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

9

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001322330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

11

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$12.99

$

Usually ships in 2-4 days

0

12

Echo 10001455930

WASHER, THRUST

$4.49

$

Usually ships in 2-4 days

0

13

Echo 10010055931

CRANKSHAFT

$278.99

$

Usually ships in 2-4 days

0

14

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

15

Echo P021042750

CRANKCASE KIT

$

$

Currently unavailable

16

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

17

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 7

0

18

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 10024255930

GASKET, CRANKCASE

$4.49

$

In Stock, only 2 left!

0

20

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 10021228230

SEAL, OIL 12

$4.99

$

In Stock, only 2 left!

0

22

Echo V622000090

PIN, LOCATING 4×8

$1.99

$

Usually ships in 2-4 days

0

23

Echo A160000030

COVER, CYLINDER

$28.99

$

Usually ships in 2-4 days

0
