Echo PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Recoil Starter, Flywheel Parts Lookup with Diagrams

1

Echo 17720055931

Starter Asy

$40.99

$

In Stock, Qty 12

2

Echo 17722040630

Spring, Rewind

$14.99

$

In Stock, Qty 10

3

Echo 17721540630

Drum, Starter

$9.99

$

In Stock, Qty 11

4

Echo 17723644330

Screw

$3.49

$

In Stock, Qty 13

5

Echo 17722661830

Rope, Starter

$7.49

$

Usually ships in 2-4 days

6

Echo 17722742030

Guide, Rope

$2.49

$

In Stock, Qty 19

7

Echo 17722827030

Grip, Starter

$5.99

$

In Stock, Qty 20+

8

Echo 90050200008

Nut 8 (3n)

$0.99

$

In Stock, Qty 5

9

Echo 17720240630

Pawl Asy, Starter

(Superseded to A052000030) 

$12.99

$

In Stock, Qty 20+

10

Echo A514000120

Rachet

(Superseded to P022003120) 

$3.49

$

In Stock, Qty 20+

11

Echo 17723440630

Spring, Return

$3.49

$

In Stock, Qty 18

12

Echo P022002100

E-Ring

$0.99

$

In Stock, Qty 20+

13

Echo 90023904014

Screw 4x14

$0.99

$

Usually ships in 2-4 days

14

Echo X502000330

Label,echo

$0.99

$

In Stock, Qty 20+

15

Echo X505002310

Label,caution

$1.99

$

In Stock, Qty 20+

16

Echo 15280156530

Rotor, Magneto

$93.99

$

Usually ships in 2-4 days

17

Echo 90060000008

Washer 8

$0.99

$

In Stock, Qty 7

18

Echo 90060500008

Washer, Spring 8

$0.99

$

In Stock, Qty 20+

19

Echo 90050200008

Nut 8 (3n)

$0.99

$

In Stock, Qty 5

20

Echo 9112804022

Bolt Hsh

$1.49

$

Usually ships in 2-4 days

21

Echo 15611240630

Grommet

$1.49

$

In Stock, only 4 left!

22

Echo 15262655932

Coil, Ignition

$92.99

$

Usually ships in 2-4 days

23

Echo 15011709130

Spacer

$1.49

$

In Stock, only 1 left!

24

Echo 15901203433

Cap, Spark Plug

$6.99

$

In Stock, Qty 20+

25

Echo 15901103432

Coil, Spark Plug

$1.49

$

In Stock, Qty 20+

26

Echo 15901019630

Plug, Spark (BPM-7y)

(Superseded to 99944500071) 

$3.49

$

In Stock, Qty 9

27

Echo 16201055430

Lead

$4.99

$

Usually ships in 2-4 days

28

Echo V451000040

Spring,tension

$4.99

$

Usually ships in 2-4 days

29

Echo V304000010

Washer,circular 6

$2.99

$

Usually ships in 2-4 days

30

Echo 17500955931

Shoe, Clutch

$21.99

$

In Stock, Qty 5

31

Echo V306000020

Washer,Circular 8

$1.99

$

Usually ships in 2-4 days

32

Echo 17504956030

Washer

$1.49

$

In Stock, Qty 20+

33

Echo 17504656030

Shaft, Clutch

$4.99

$

In Stock, Qty 15

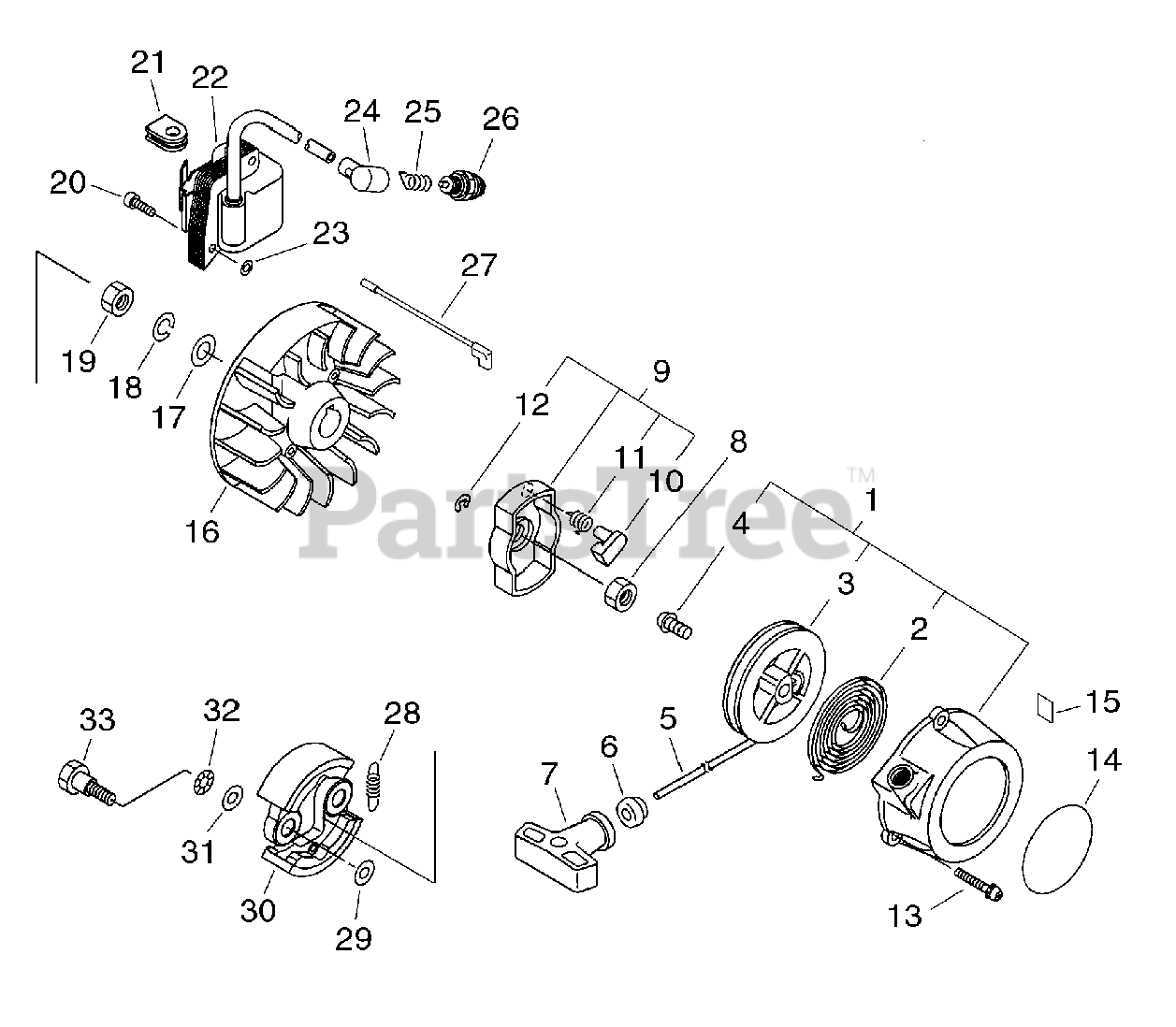

PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Recoil Starter, Flywheel Parts Diagram

Recoil Starter, Flywheel Parts Diagram

Echo 17720055931

Echo 17722040630

Echo 17721540630

Echo 17723644330

Echo 17722661830

Echo 17722742030

Echo 17722827030

Echo 90050200008

Echo 17720240630

Echo A514000120

Echo 17723440630

Echo P022002100

Echo 90023904014

Echo X502000330

Echo X505002310

Echo 15280156530

Echo 90060000008

Echo 90060500008

Echo 90050200008

Echo 9112804022

Echo 15611240630

Echo 15262655932

Echo 15011709130

Echo 15901203433

Echo 15901103432

Echo 15901019630

Echo 16201055430

Echo V451000040

Echo V304000010

Echo 17500955931

Echo V306000020

Echo 17504956030

Echo 17504656030
