PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Regulator Assembly Parts Diagram

High Pressure, Stationary Sprayer

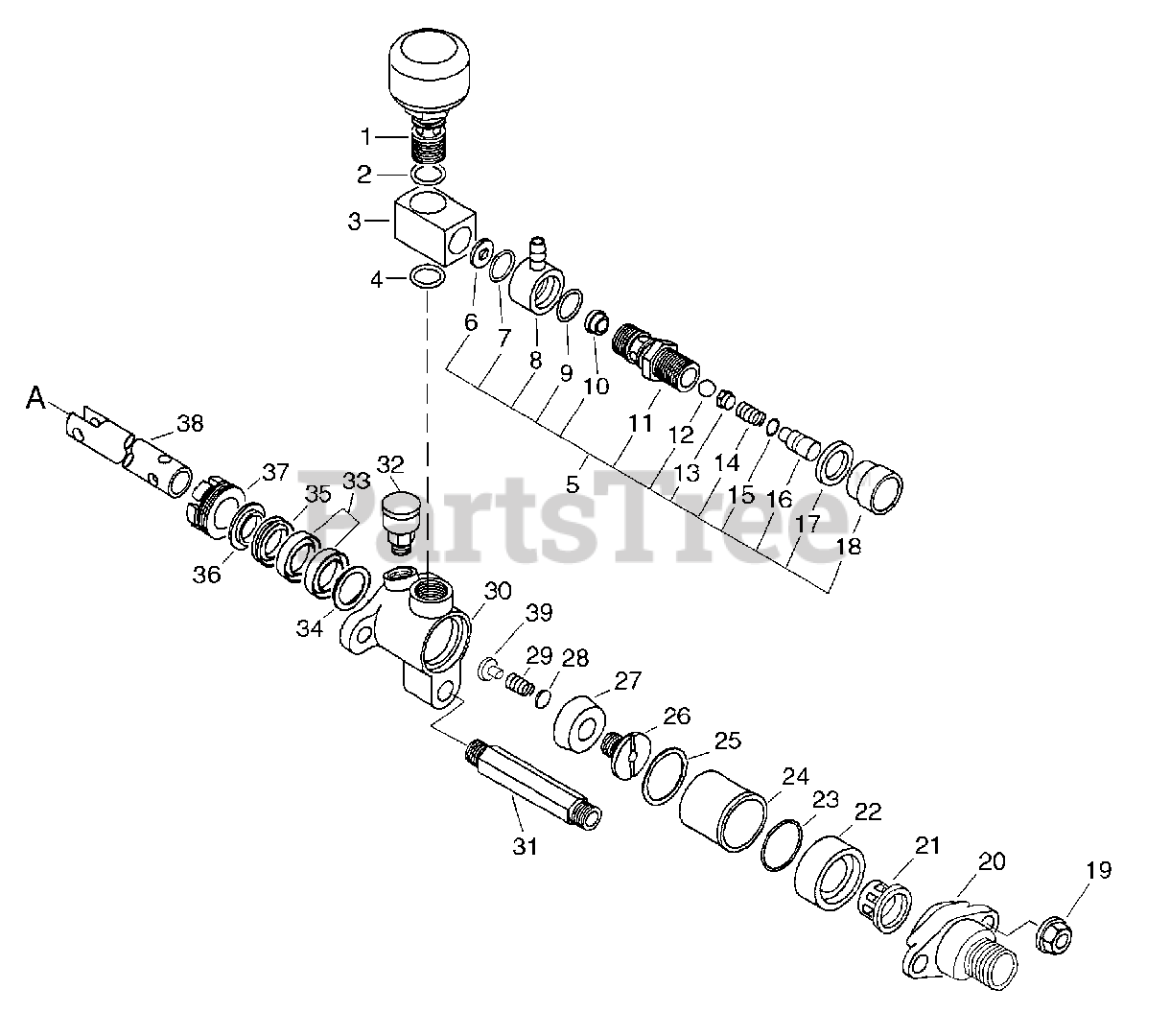

Regulator Assembly Parts Diagram

  • Title

1

Echo 70602056411

CHAMBER, AIR

$114.99

$

Usually ships in 2-4 days

0

2

Echo 70615084970

O-RING

$

$

Currently unavailable

3

Echo 70602055621

CONNECTOR

$34.99

$

Usually ships in 2-4 days

0

4

Echo 70615085970

O-RING

$

$

Currently unavailable

5

Echo 706P2060A20

REGULATOR ASSY
(Superseded to 70602060A22)

$64.99

$

Usually ships in 2-4 days

0

6

Echo 70602061760

WASHER

$2.99

$

Usually ships in 2-4 days

0

7

Echo 70615085970

O-RING

$

$

Currently unavailable

8

Echo 70602064620

CASING, VALVE

$18.99

$

Usually ships in 2-4 days

0

9

Echo 70615084970

O-RING

$

$

Currently unavailable

10

Echo E401000030

SEAT, VALVE

$

$

Currently unavailable

11

Echo 70602065621

CASING, SPRING

$22.99

$

Usually ships in 2-4 days

0

13

Echo 706P2066010

VALVE, BALL

$

$

Currently unavailable

12

Echo 70602067820

HOLDER, SPRING

$13.99

$

Usually ships in 2-4 days

0

14

Echo 70602068010

SPRING, PRESSURE

$6.49

$

Usually ships in 2-4 days

0

15

Echo 70602069970

O-RING

$

$

Currently unavailable

16

Echo 70602070620

SHAFT, REGULATOR

$8.99

$

Usually ships in 2-4 days

0

17

Echo 70602071920

NUT, LOCK

$5.99

$

Usually ships in 2-4 days

0

18

Echo 70602072920

CAP, REGULATOR

$13.99

$

Usually ships in 2-4 days

0

19

Echo 70602052950

NUT

$1.49

$

Usually ships in 2-4 days

0

20

Echo 706P2043420

PIPE, INTAKE

$40.99

$

Usually ships in 2-4 days

0

21

Echo 70602050000

VALVE ASSY

$20.99

$

Usually ships in 2-4 days

0

22

Echo 70602049821

CASING, VALVE

$29.99

$

Usually ships in 2-4 days

0

23

Echo 70602048970

O-RING

$1.99

$

Usually ships in 2-4 days

0

24

Echo 70602047412

SLEEVE

$82.99

$

Usually ships in 2-4 days

0

25

Echo 70602046780

PACKING

$5.49

$

Usually ships in 2-4 days

0

26

Echo 70602035911

SEAT, VALVE

$34.99

$

Usually ships in 2-4 days

0

27

Echo 70602034770

PACKING, PISTON

$20.99

$

Usually ships in 2-4 days

0

28

Echo 70602033710

PLATE

$7.49

$

Usually ships in 2-4 days

0

29

Echo 70602032010

SPRING, VALVE

$4.99

$

Usually ships in 2-4 days

0

30

Echo 70602043421

CYLINDER

$82.99

$

Usually ships in 2-4 days

0

31

Echo 706P2043020

JOINT

$

$

Currently unavailable

32

Echo 70602042040

CUP ASSY, GREASE

$12.99

$

Usually ships in 2-4 days

0

33

Echo 70602040771

PACKING SET

$24.99

$

Usually ships in 2-4 days

0

34

Echo 70602041720

ADAPTOR

$6.99

$

Usually ships in 2-4 days

0

35

Echo 70602039720

PACKING, GREASE

$7.99

$

Usually ships in 2-4 days

0

36

Echo 70602038720

PACKING

$4.49

$

Usually ships in 2-4 days

0

37

Echo 70602037620

NUT

$18.99

$

Usually ships in 2-4 days

0

38

Echo 70602031A13

PLUNGER SET, W/SPRING HOLDER

$50.99

$

Usually ships in 2-4 days

0

39

Echo 70615086060

HOLDER, SPRING

$6.99

$

Usually ships in 2-4 days

0
