PHZ19KA342 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 600000 - 669999) (2006) Deck Group 34" (Cont.) Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

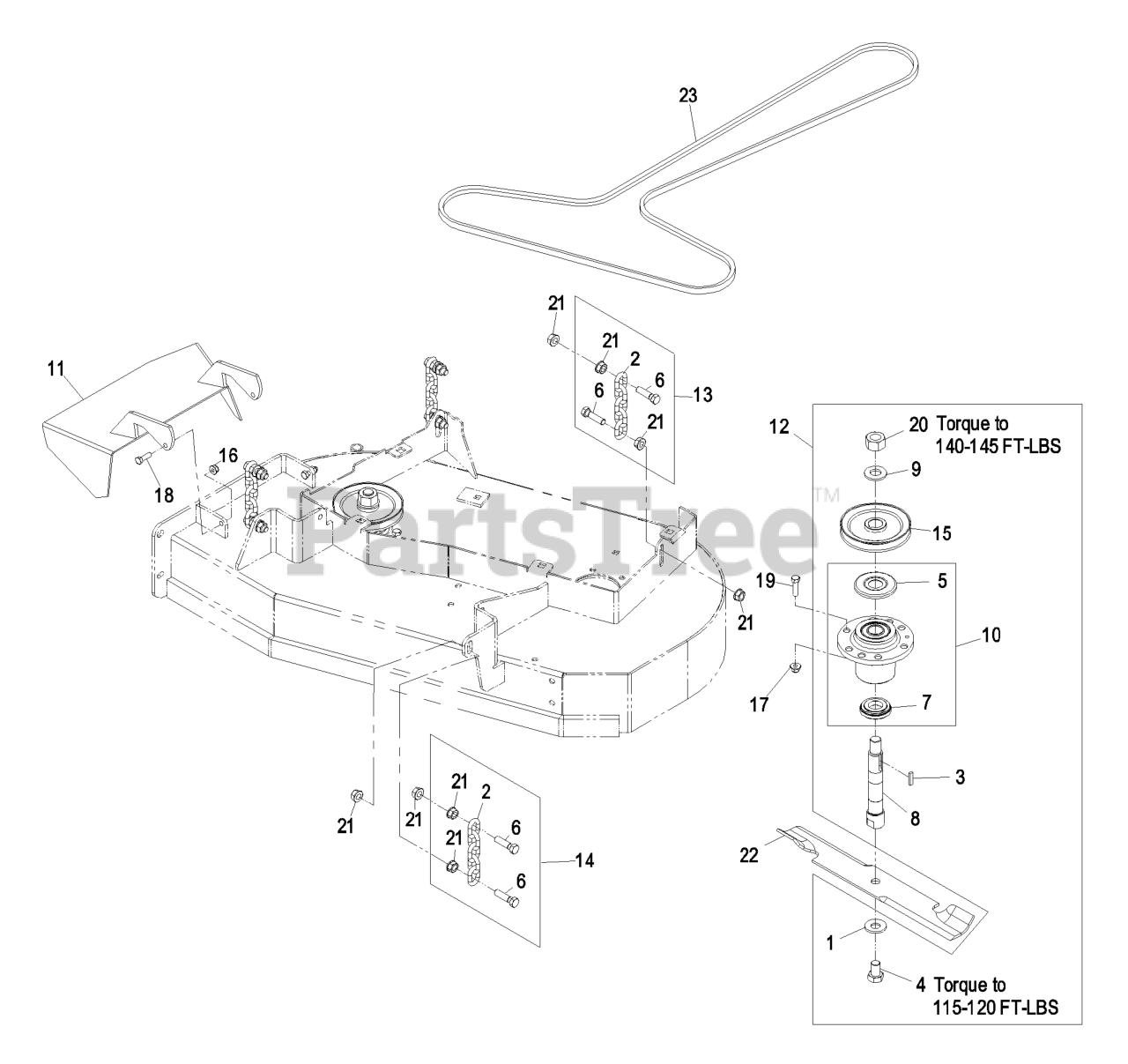

Deck Group 34" (Cont.) Parts Diagram

  • Title

1

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 19

0

2

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 13

0

3

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 16

0

4

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, Qty 19

0

6

Exmark 103-1898

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

0

8

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$103.99

$

In Stock, Qty 6

0

9

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 103-8280

KIT, CUTTER HOUSING

$282.99

$

In Stock, Qty 12

0

11

Exmark 103-9382-01

WLD,CHUTE

$

$

Not available

12

Exmark 109-3522

ASM,CUTTER HOUSING COMPLE

$644.99

$

Usually ships in 3-6 days

0

13

Exmark 103-9792

DECK CHAIN ASM

$14.99

$

In Stock, only 1 left!

0

14

Exmark 103-9817

DECK CHAIN ASM

$15.99

$

In Stock, only 2 left!

0

15

Exmark 103-9953

PULLEY,SPINDLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$80.99

$

Usually ships in 3-6 days

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

20

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item, #21.

$13.99

$

In Stock, only 2 left!

0

21

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

22

Exmark 109-2548

109-2548-S
(Superseded to 109-2548-S)

$31.99

$

In Stock, only 4 left!

0

Exmark 109-2551

109-2551-S
(Superseded to 109-2551-S)

$

$

Not available

Exmark 109-3129

109-3129-S
(Superseded to 109-3129-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK343.

$33.99

$

In Stock, Qty 8

0

Exmark 109-2549

109-2549-S
(Superseded to 109-2549-S)

$31.99

$

Usually ships in 3-6 days

0

23

Exmark 103-9366

BELT,A107.40
(Superseded to 103-9366-SL)

$80.99

$

Usually ships in 3-6 days

0

Exmark 103-9140

PAINT, TOUCH UP

$23.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0

Exmark MK343

DISCONTINUED

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

Usually ships in 3-6 days

0
