PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 720000 - 789999) (2008) Electrical Schematic Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

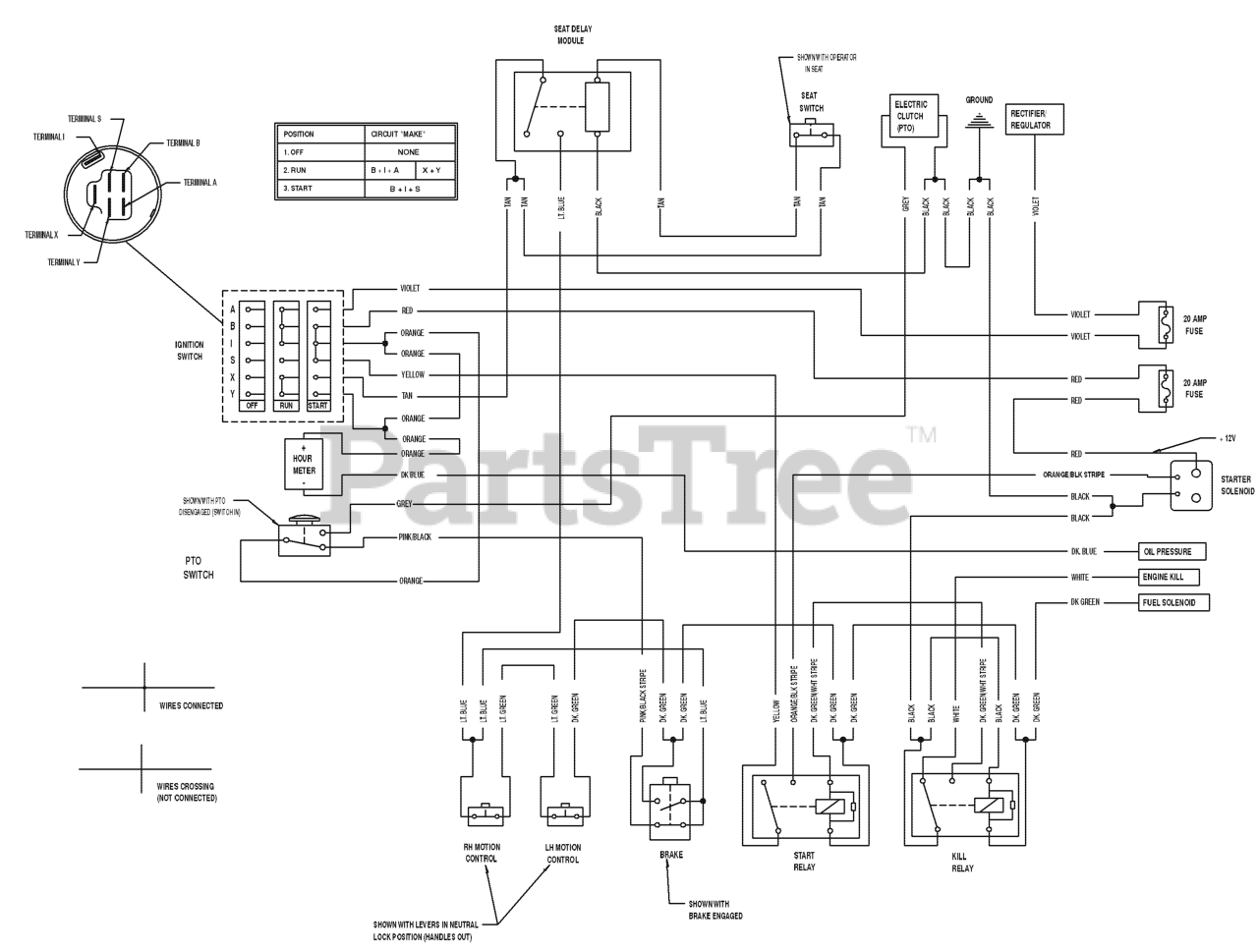

Electrical Schematic Parts Diagram

  • Title

Diagram Only, No Parts List Available

$

$

Not available
