PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 790000 - 820976) (2009) Engine Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

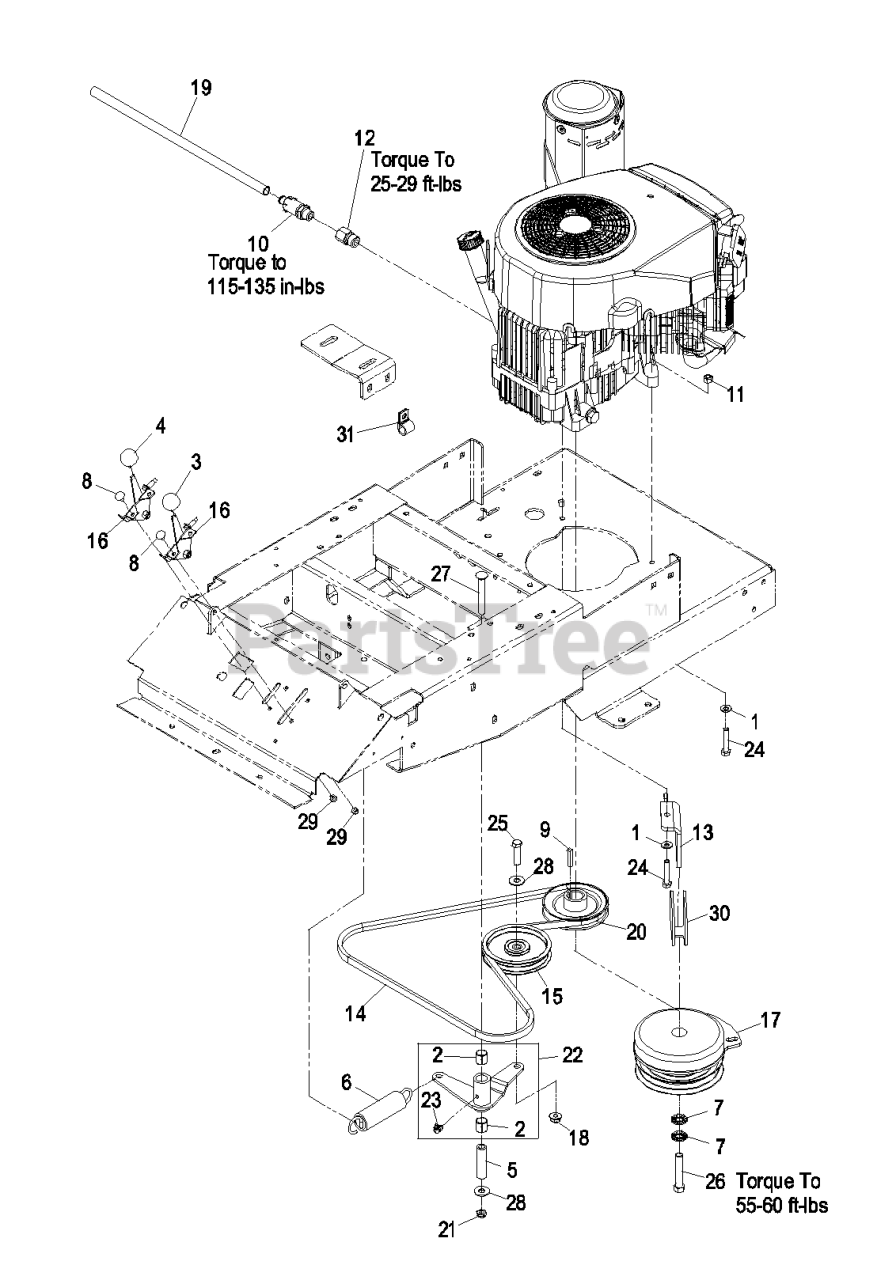

Engine Group Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

3

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 20+

0

4

Exmark 1-513593

KNOB-BALL, BLACK

$5.99

$

In Stock, only 2 left!

0

5

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

6

Exmark 1-603414

SPRING-EXTENSION

$22.99

$

In Stock, Qty 13

0

7

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

9

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, only 3 left!

0

10

Exmark 92-6877

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$43.99

$

In Stock, only 2 left!

0

11

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 103-1966

ADAPTER

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$19.99

$

In Stock, Qty 5

0

13

Exmark 103-9356-03

ROTATION-STOP, CLUTCH

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 112-3823

BELT-V
(Superseded to 112-3823-SL)

$102.99

$

Usually ships in 3-6 days

0

15

Exmark 103-9401

IDLER

$74.99

$

Usually ships in 3-6 days

0

16

Exmark 103-9946

THROTTLE CONTROL ASM

$66.99

$

In Stock, only 1 left!

0

17

Exmark 103-9950

CLUTCH

$520.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 106-7022

TUBE-DRAIN, OIL

Note: Supplied in literature pack.

$9.99

$

In Stock, only 3 left!

0

20

Exmark 109-0393

DISCONTINUED

$

$

Not available

21

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-3119

IDLER HYDRO ASM

$

$

Not available

23

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 19

0

24

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.99

$

In Stock, Qty 20+

0

27

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

28

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

29

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Exmark 109-3765

BUMPER

$7.49

$

Usually ships in 3-6 days

0

31

Exmark 1-603727

CLIP-LOOM

Note: Route throttle and choke cables through clip.

$2.99

$

Usually ships in 3-6 days

0
