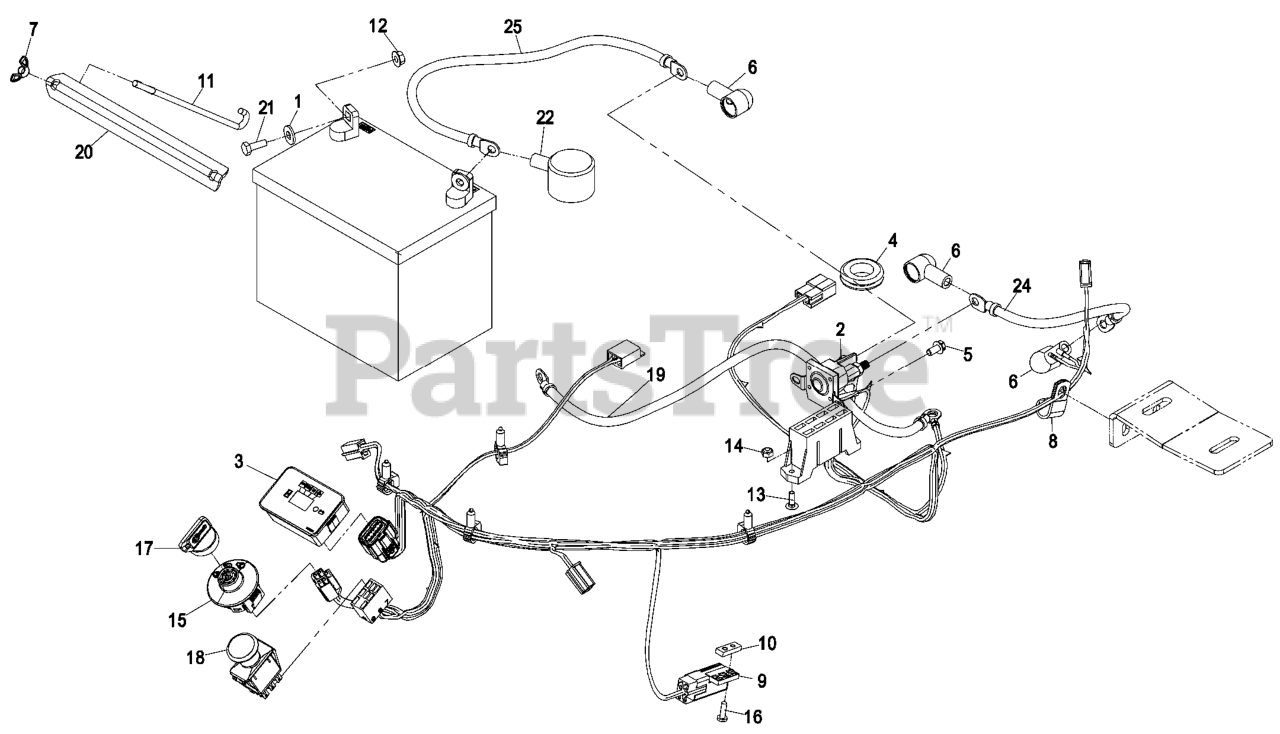

PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 820977 - 919999) (2010) Electrical Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

Electrical Group Parts Diagram

  • Title

1

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

2

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

3

Exmark 112-8650

116-5609
(Superseded to 116-5609)

$149.99

$

In Stock, only 3 left!

0

4

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

5

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

7

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 20+

0

8

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 1-633111

SWITCH

$20.99

$

In Stock, Qty 13

0

10

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 14

0

11

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

12

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

14

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 116-0229

137-4100
(Superseded to 137-4100)

$37.99

$

In Stock, Qty 20+

0

16

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

18

Exmark 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

19

Exmark 103-8355

CABLE-BATTERY, NEGATIVE

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 103-9944-03

ANGLE-BATTERY

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

23

Exmark 114-3515

HARNESS-WIRE

Note: Use dielectric grease on all wiring harness connectors

$318.99

$

Usually ships in 3-6 days

0

24

Exmark 109-7620

POSITIVE STARTER CABLE AS

$23.99

$

In Stock, only 2 left!

0

25

Exmark 109-7653

POSITIVE BATTERY CABLE AS

$34.99

$

In Stock, only 1 left!

0

26

Exmark 109103

FUSE-BLADE, 30 AMP

Note: Not shown

$6.49

$

In Stock, Qty 12

0

27

Exmark 109102

FUSE-BLADE, 25 AMP

Note: Not shown

$5.49

$

In Stock, only 1 left!

0

28

Exmark 218-578

FUSE-BLADE, 10 AMP

Note: Not shown

$2.99

$

In Stock, Qty 6

0
