PHZ19KA443 - Exmark 44" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 600000 - 669999) (2006) Frame Group Parts Diagram

44" Phazer Zero-Turn Mower, 19hp Kawasaki

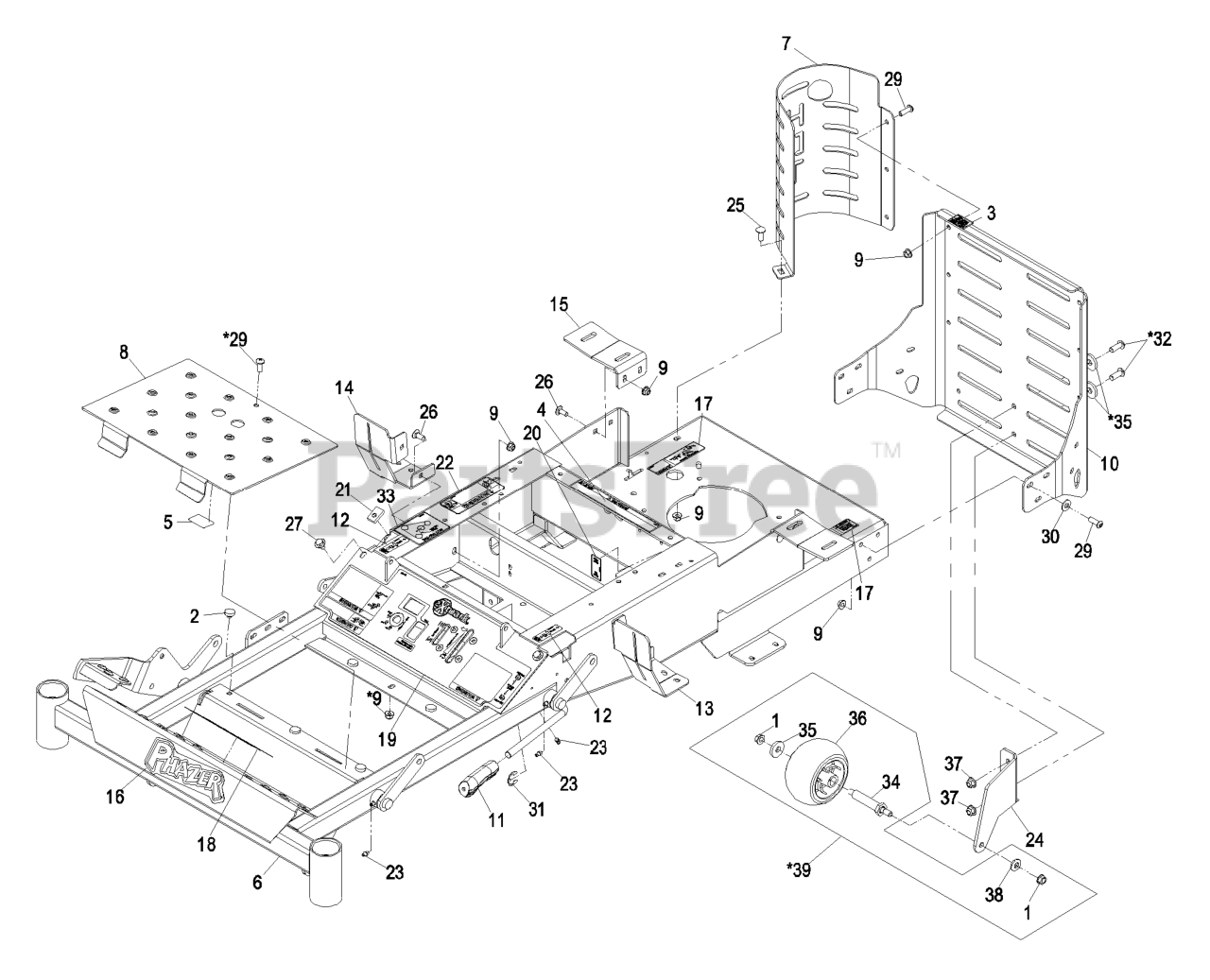

Frame Group Parts Diagram

  • Title

1

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-513746

103-2076
(Superseded to 103-2076)

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 1-513747

DECAL-BATTERY

$6.49

$

In Stock, only 1 left!

0

5

Exmark 1-513748

DECAL-GUARD

$5.49

$

In Stock, Qty 6

0

6

Exmark 109-3125

ASM,PHAZER FRAME W/DECALS

$3904.99

$

Usually ships in 3-6 days

0

7

Exmark 103-9343-03

GUARD-MUFFLER

$201.99

$

In Stock, only 1 left!

0

8

Exmark 109-3127

103-9381-01
(Superseded to 103-9381-01)

$

$

Not available

9

Exmark 104-8300

NUT-HF, NI

Note: Required for Non-Commercial users.

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-3126

REAR GUARD ASM

$345.99

$

In Stock, only 1 left!

0

11

Exmark 109-0375

GRIP-LEVER, BRAKE

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 109-2356

DECAL-CONTROL, MOTION

$

$

Not available

13

Exmark 109-2421-03

MOUNT-TANK, FUEL (LH)

$58.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2422-03

MOUNT-TANK, FUEL (RH)

$

$

Not available

15

Exmark 109-2429-03

BRACKET-FUEL TANK, REAR

$

$

Not available

16

Exmark 109-2466

DECAL,PHAZER

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 109-2467

DECAL,ZT DUMP

$

$

Not available

18

Exmark 109-2490

DECAL-SLOPE, DANGER

$

$

Not available

19

Exmark 109-2494

DECAL,CONSOLE

$

$

Not available

20

Exmark 109-2539

DECAL-RELAY

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 109-2605

STOP-MOTION

$

$

Not available

22

Exmark 109-2862

DECAL-DEVICES, ROTATING

$

$

Not available

23

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

24

Exmark 109-3548-03

BRACKET,REAR TILT

$34.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

26

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

29

Exmark 3274-104

SCREW-HSBH

Note: Required for Non-Commercial users.

$1.99

$

In Stock, Qty 5

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 604259

E-RING

$

$

Not available

32

Exmark 3274-94

SCREW-HSBH

Note: Required for Non-Commercial users.

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 109-2992

DECAL,BELT ROUTING

$8.99

$

Usually ships in 3-6 days

0

34

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

35

Exmark 1-373034

WASHER

Note: Required for Non-Commercial users.

$3.49

$

In Stock, Qty 20+

0

36

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

39

Exmark 103-4051

116-9981
(Superseded to 116-9981)

Note: Required for Non-Commercial users.

$53.99

$

In Stock, Qty 20+

0
