PL 1800 - Billy Goat 18" PLUGR Aerator Parts Assembly Parts Diagram

18" PLUGR Aerator

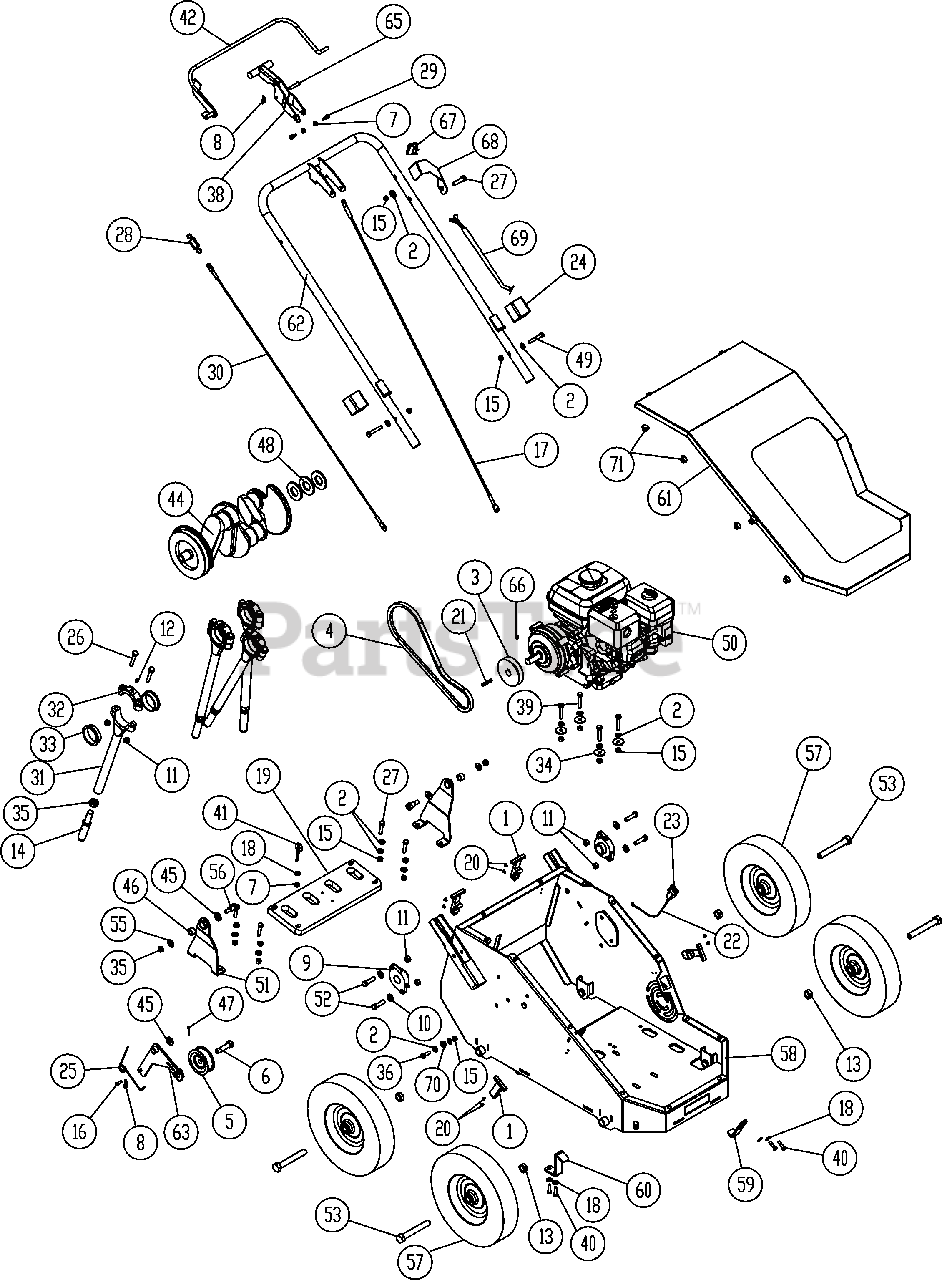

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 381003

RUBBER LATCH KIT

$

$

Not available

2

Billy Goat 8171003

FLAT WASHER 5/16"

$0.99

$

In Stock, Qty 10

0

3

Billy Goat 381018

ENGINE PULLEY 3.5"

$

$

Not available

4

Billy Goat 381019

COGGED V-BELT B 35"

$38.99

$

Usually ships in 2-11 days

0

5

Billy Goat 350114

IDLER PULLEY 2.75" DIA

$40.99

$

In Stock, only 2 left!

0

6

Billy Goat 8041052

SCREWCAP 3/8" - 16 x 1 1/2" GR 5 ZP

$1.49

$

Usually ships in 2-11 days

0

7

Billy Goat 8160001

NYLOCK NUT 1/4"- 20 UNC

$0.99

$

In Stock, Qty 8

0

8

Billy Goat 371275

1/4" RUE RING

$0.99

$

Usually ships in 2-11 days

0

9

Billy Goat 381042

CARTRIDGE BEARING 1" DIA

$28.99

$

In Stock, only 1 left!

0

10

Billy Goat 8171004

3/8" FLAT WASHER

$0.99

$

In Stock, Qty 10

0

11

Billy Goat 8160003

NUTLOCK 3/8-16

$0.99

$

In Stock, Qty 8

0

12

Billy Goat 610363

ZERK FITTING GREASE

$0.99

$

Usually ships in 2-11 days

0

13

Billy Goat 381110

NUT JAM 5/8"-11 2 WAY LOCKNUT ZP
(Superseded to 8143007)

$6.99

$

In Stock, only 3 left!

0

14

Billy Goat 381057

TINE 5/8" DIA
(Superseded to 382244-S)

$43.99

$

In Stock, Qty 6

0

15

Billy Goat 8160002

NUTLOCK 5/16"-18

$0.99

$

In Stock, Qty 10

0

16

Billy Goat 381077

CLEVIS PIN 1/4" X 3/4"

$0.99

$

Usually ships in 2-11 days

0

17

Billy Goat 381089

RETRACTOR PLATE CABLE
(Superseded to 382332)

$70.99

$

Usually ships in 2-11 days

0

18

Billy Goat 8171002

WASHER 1/4" FLAT

$0.99

$

In Stock, Qty 10

0

19

Billy Goat 381097

400 SERIES RETRACTOR PLATE

$142.99

$

Usually ships in 2-11 days

0

20

Billy Goat 381115

STAINLESS RIVET 1/8" X 1/4"

$

$

Not available

21

Billy Goat 9201080

KEY 3/15" SQ X 1 1/4

$

$

Not available

22

Billy Goat 380227

WIRE HARNESS PL HOOD SWITCH

$39.99

$

Usually ships in 2-11 days

0

23

Billy Goat 840058

SWITCH INTERLOCK

$20.99

$

Usually ships in 2-11 days

0

24

Billy Goat 381135

HANDLE LOCK SLEEVE

$

$

Not available

25

Billy Goat 381138

CLUTCH TORSION SPRING

$4.49

$

Usually ships in 2-11 days

0

26

Billy Goat 8041054

SCREWCAP 3/8'-16 X 2"

$0.99

$

In Stock, Qty 6

0

27

Billy Goat 8041030

SCREWCAP 5/16"-18 X 1 1/2"

$0.99

$

Usually ships in 2-11 days

0

28

Billy Goat 381157

EXTENSION SPRING 3/4" X 1" - 3"
(Superseded to 351309)

$8.49

$

Usually ships in 2-11 days

0

29

Billy Goat 381158

SOCKET HEAD SHOULDER BOLT 5/16" X 1/4"

$3.49

$

Usually ships in 2-11 days

0

30

Billy Goat 381168

CLUTCH CABLE 37"
(Superseded to 380221)

$30.78

$

Usually ships in 2-11 days

0

31

Billy Goat 381175

TINE ROD
(Superseded to 380214)

$128.99

$

Usually ships in 2-11 days

0

32

Billy Goat 381176

TINE ROD CAP
(Superseded to 380214)

$128.99

$

Usually ships in 2-11 days

0

33

Billy Goat 380213

JOURNAL BEARING 2"

$20.99

$

In Stock, Qty 5

0

34

Billy Goat 8172020

FENDER WASHER 5/16"

$0.99

$

In Stock, Qty 14

0

35

Billy Goat 8143007

NUT JAM 5/8"-11 ZP

$6.99

$

In Stock, only 3 left!

0

36

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 9

0

37

Billy Goat 381198

RETRACTOR PLATE LATCH

$

$

Currently unavailable

38

Billy Goat 381201

RETRACTOR HANDLE

$125.99

$

Usually ships in 2-11 days

0

39

Billy Goat 8041031

SCREWCAP 5/16"-18 X 1 3/4" HCS ZP

$0.99

$

In Stock, Qty 5

0

40

Billy Goat 8041004

SCREWCAP 1/4"-20 X 3/4" GR 5 HCS ZP

$0.99

$

In Stock, Qty 6

0

41

Billy Goat 381272

EYEBOLT 1/4" - 20

$3.99

$

Usually ships in 2-11 days

0

42

Billy Goat 381288

400 SERIES CLUTCH LEVER

$86.99

$

Usually ships in 2-11 days

0

44

Billy Goat 381296

4 TINE CRANK

$661.99

$

Usually ships in 2-11 days

0

45

Billy Goat 8171006

WASHER 1/2" FLAT

$0.99

$

In Stock, Qty 7

0

46

Billy Goat 381512

BUSHING 1/2" ID X 3/4" OD X 1/2"

$6.49

$

Usually ships in 2-11 days

0

47

Billy Goat 8197031

COTTER PIN 1/8" X 1"

$0.99

$

Usually ships in 2-11 days

0

48

Billy Goat 362205

MACHINERY BUSHING 1" X 1 1/2" X 14 GA

$1.99

$

Usually ships in 2-11 days

0

49

Billy Goat 8041032

SCREWCAP 5/16"-18 X 2" HCS ZP

$0.99

$

In Stock, Qty 10

0

50

Billy Goat 380229

BRIGGS VANGUARD ENGINE W/GEARBOX

$

$

Currently unavailable

51

Billy Goat 381632

RETRACTOR PLATE ARM

$85.99

$

In Stock, only 2 left!

0

52

Billy Goat 8041052

SCREWCAP 3/8"-16 X 1 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

53

Billy Goat 8041151

SCREWCAP 5/8"-11 X 4 1/2" HCS ZP

$5.49

$

In Stock, only 2 left!

0

55

Billy Goat 381757

WASHER 5/16" USS THRU-HARDENED ZINC YELLOW

$0.99

$

Usually ships in 2-11 days

0

56

Billy Goat 381758

SHOULDER BOLT 1/2" X 5/8"

$4.49

$

Usually ships in 2-11 days

0

57

Billy Goat 381768

WHEEL 12" SEMI-PNEUMATIC W/ 5/8" BEARING HUB
(Superseded to 382606)

$239.99

$

Usually ships in 2-11 days

0

58

Billy Goat 381769

400 SERIES FRAME

$1343.99

$

Usually ships in 2-11 days

0

59

Billy Goat 381769-09

UPPER BELT TENSIONER BRACKET

$17.99

$

Usually ships in 2-11 days

0

60

Billy Goat 381769-10

LOWER BELT TENSIONER BRACKET

$19.99

$

Usually ships in 2-11 days

0

61

Billy Goat 381770-WA

COVER WA PL18

$303.99

$

Usually ships in 2-11 days

0

62

Billy Goat 381771

400 SERIES HANDLE

$

$

Currently unavailable

63

Billy Goat 381772

CLUTCH ARM

$126.99

$

Usually ships in 2-11 days

0

64

Billy Goat 381777

PL1800 DECAL KIT

$

$

Currently unavailable

65

Billy Goat 381345

PIN CLEVIS 1/4" X 1 1/8" ZP

$2.99

$

Usually ships in 2-11 days

0

66

Billy Goat 8084106

SCREW SET 5/16"-18 X 5/16" TORQUE TO 22-24 FT-LBS.

$0.99

$

Usually ships in 2-11 days

0

67

Billy Goat 500281

SWITCH LKG RKR

$13.99

$

In Stock, only 2 left!

0

68

Billy Goat 430141

BRACKET MOUNT SWITCH

$

$

Not available

69

Billy Goat 360316

HARNESS WIRE 60"

$27.99

$

Usually ships in 2-11 days

0

70

Billy Goat 350346

NUT 5/16" - 18 SER HEX WSHR FLNG ZP

$0.99

$

Usually ships in 2-11 days

0

71

Billy Goat 380224

RUBBER BUMPER PUSH IN

$0.99

$

Usually ships in 2-11 days

0
