PL 1802 VB - Billy Goat 18" PLUGR Aerator

18" PLUGR Aerator

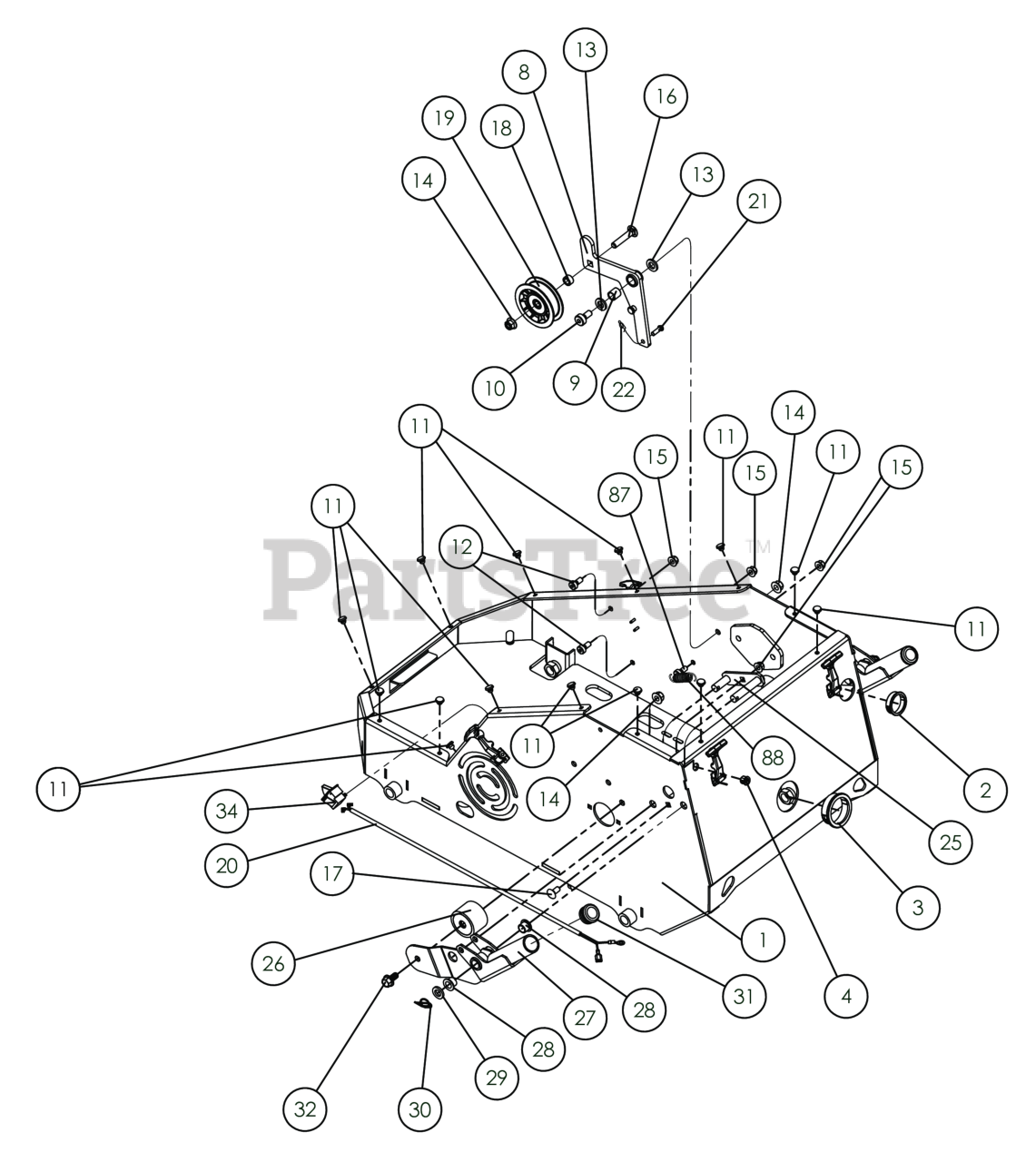

PL 1802 VB - Billy Goat 18" PLUGR Aerator > Parts Diagrams (7) > Parts Assembly A

  • Title
382141-S

1

WA, PL1801 FRAME BOELS W/DECALS

Part# 382141-S

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382240

2

BUSHING, SNAP 1.31" ID

Part# 382240

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382292

3

BUSHING, SNAP 1.81" ID

Part# 382292

OEM Warranty Repair Part for Billy Goat

Currently unavailable

373308

4

BUSHING, SPLIT 0.350" NYLON BLACK

Part# 373308

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382133

8

WA, IDLER ARM PL18

Part# 382133

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382312

9

BRG, SLEEVE Ø.500" X Ø.625" X .625"

Part# 382312

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382259

10

BLT-SLDR,SH.500"X1.00",.375"-16X.63"G-8ZP

Part# 382259

OEM Warranty Repair Part for Billy Goat

Currently unavailable

380224

11

RUBBER BUMPER PUSH IN

Part# 380224

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382322

12

BLT-SLDR,SH.375"X2.25",.313"-18X.50"G-8ZP

Part# 382322

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382258

13

WSHR-NYL, FLT, .500" X .875" X .125"

Part# 382258

OEM Warranty Repair Part for Billy Goat

Currently unavailable

8165003

14

NUT-HEX-NYLK, FLG .375"-16 ZP

Part# 8165003

OEM Warranty Repair Part for Billy Goat

Currently unavailable

8165002

15

NUT-HEX-NYLK, FLG .3125-18 ZP

Part# 8165002

OEM Warranty Repair Part for Billy Goat

Currently unavailable

8024062

16

BOLT CARRIAGE 3/8"-16 X 2" ZP

Part# 8024062

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

8024039

17

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

Part# 8024039

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.78

440228

18

TUBE SPACER 0.625" OD X 0.357" LONG

Part# 440228

OEM Warranty Repair Part for Billy Goat

Currently unavailable

350114

19

PULLEY IDLER 2.75" OD X 3/8" BORE

Part# 350114

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $30.13

380227

20

WIRE HARNESS PL HOOD SWITCH

Part# 380227

OEM Warranty Repair Part for Billy Goat

Currently unavailable

381077

21

CLEVIS PIN, 1/4 X 3/4

Part# 381077

OEM Warranty Repair Part for Billy Goat

Currently unavailable

371275

22

1/4" RUE RING

Part# 371275

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382134

25

WA, ISO MOUNT

Part# 382134

OEM Warranty Repair Part for Billy Goat

Currently unavailable

373257

26

ISOLATOR, VIBRATION HANDLE SC181H

Part# 373257

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382143-S

27

WA, REVOLVER LH BOELS SERVICE

Part# 382143-S

OEM Warranty Repair Part for Billy Goat

Currently unavailable

362254

28

BUSHING .500" ID

Part# 362254

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

382277

29

WSHR-STL,FLT .500"X.875"X.134" MAB ZP

Part# 382277

OEM Warranty Repair Part for Billy Goat

Currently unavailable

382336

30

RING, RUE .500"

Part# 382336

OEM Warranty Repair Part for Billy Goat

Currently unavailable

791056

31

PLUG TUBE INSERT 1.25" O.D.

Part# 791056

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.82

791080

32

SER HEX WASHER 3/8" - 16

Part# 791080

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.82

840058

34

SWITCH INTERLOCK

Part# 840058

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $11.55

360152

87

BOLT SHOULDER 3/8 X 1"

Part# 360152

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.52

351275

88

SPRING IDLER UPPER OS900SP

Part# 351275

OEM Warranty Repair Part for Billy Goat

Currently unavailable
