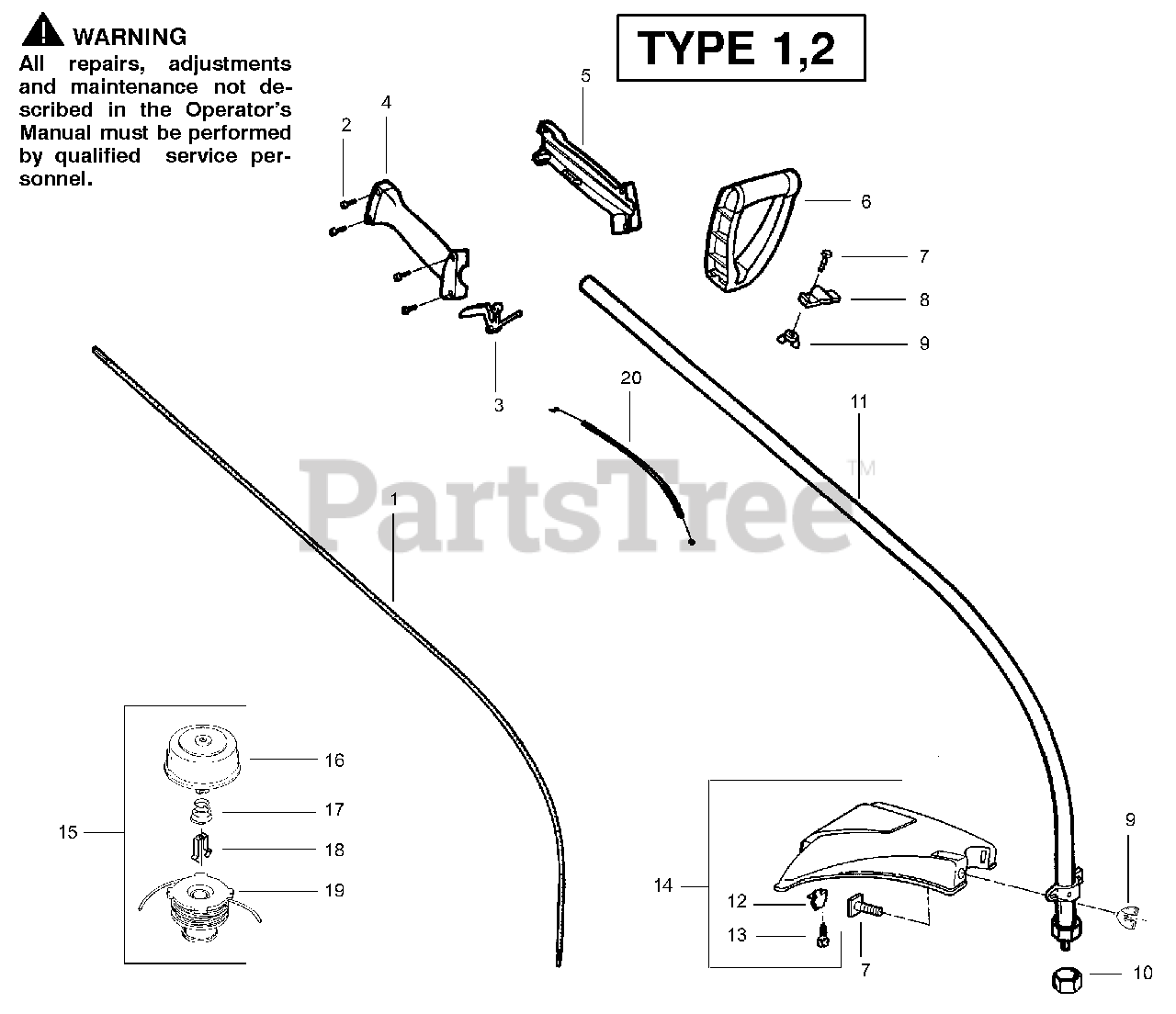

PL 200 - Weed Eater String Trimmer Cutting Head & Driveshaft Parts Diagram

String Trimmer

Cutting Head & Driveshaft Parts Diagram

  • Title

1

Poulan 530053428

Drive Shaft- Flex

$

$

Not available

2

Poulan 530015957

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 7

0

3

Poulan 530036556

Trigger

$3.99

$

In Stock, only 2 left!

0

4

Poulan 530036515

Throttle Hsg. (Right)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530036514

Throttle Hsg. (Left)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530094673

Handle
(Superseded to 530055699)

$11.99

$

Usually ships in 3-10 days

0

7

Poulan 530015820

Bolt-Handle/Shield

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530094847

Clamp-Assist Handle

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530094543

Dust Cup

$

$

Not available

11

Poulan 530071397

Drive Shaft Hsg. Ass'y.

$37.99

$

Usually ships in 3-10 days

0

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 20+

0

14

Poulan 530069666

Shield Kit Ass'y.

Note: (Incl. 12 & 13)

$

$

Not available

15

Poulan 952711547

Cutting Head Ass'y.

Note: (Incl. 16 - 19)

$

$

Not available

16

Poulan 530095773

Hub Ass'y.

$10.99

$

Usually ships in 3-10 days

0

17

Poulan 530053241

Spring-Return

$

$

Not available

18

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 6

0

19

Poulan 952711548

Spool w/Line

$

$

Not available

20

Poulan 530071548

Assy-Throttle Cable

$

$

Not available

Poulan 530088833

Operator's Manual (Type 1)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530086924

Operator's Manual (Type 2)

Note: Not Shown

$

$

Not available

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530055162

Stop Decal

Note: Not Shown

$

$

Not available
