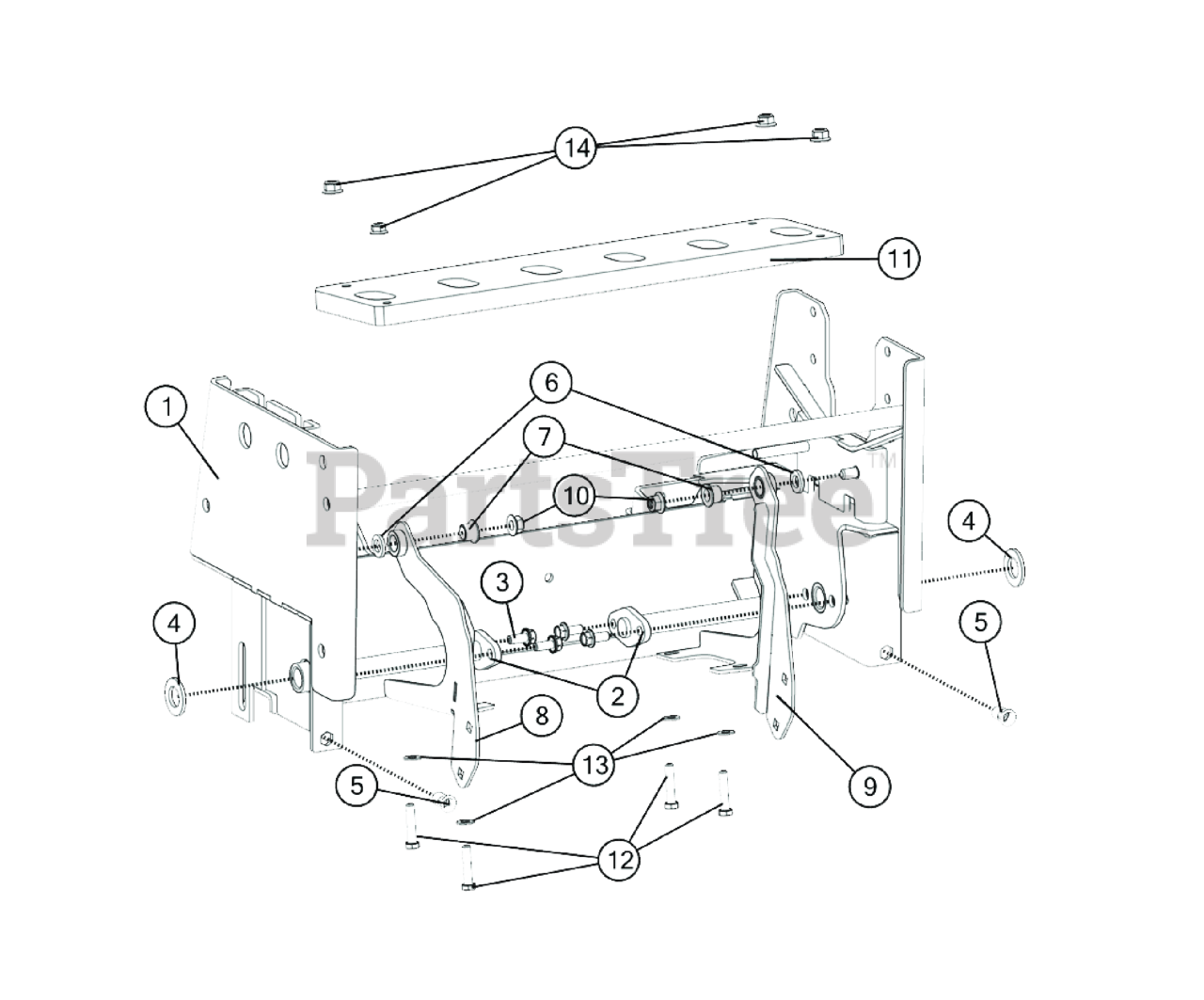

PL 2501 SPV - Billy Goat 25" PLUGR Aerator Parts Assembly A Parts Diagram

25" PLUGR Aerator

Parts Assembly A Parts Diagram

  • Title

1

Billy Goat 382102-S

ASM, PAINTED SUB-FRAME W/ INSERTS

$1067.99

$

Usually ships in 2-11 days

0

2

Billy Goat 382103

WA, AXLE REAR

$58.99

$

Usually ships in 2-11 days

0

3

Billy Goat 351264

SER HEX WASHER FLNG SCREW 5/16"-18 X 3/4"

$0.99

$

In Stock, Qty 10

0

4

Billy Goat 8172015

WASHER 3/4" SAE 13/16"X1.5"X1/8"ZP

$0.99

$

In Stock, Qty 6

0

5

NUT INSERT HEX 5/16"-18, .150-.312 GRIP RANGE

$

$

Not available

6

Billy Goat 382258

WSHR-NYL, FLT, .500" X .875" X .125"

$2.99

$

Usually ships in 2-11 days

0

7

Billy Goat 362254

BUSHING .500" ID

$

$

Not available

8

Billy Goat 382101

WA, TINE GATE ARM RH

$96.99

$

Usually ships in 2-11 days

0

9

Billy Goat 382104

WA, TINE GATE ARM LH

$94.99

$

Usually ships in 2-11 days

0

10

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

In Stock, only 2 left!

0

11

Billy Goat 382227

GATE, 6 TINE

$149.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8041030

SCREWCAP 5/16"-18X1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

13

Billy Goat 8172008

WASHER 5/16" SAE Z/P

$0.99

$

In Stock, Qty 10

0

14

Billy Goat 8165002

NUT-HEX-NYLK, FLG .3125-18 ZP

$0.99

$

Usually ships in 2-11 days

0
