PL 71254KV (80685) - Snapper Walk-Behind Mower, 12.5hp Loop Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 12.5hp

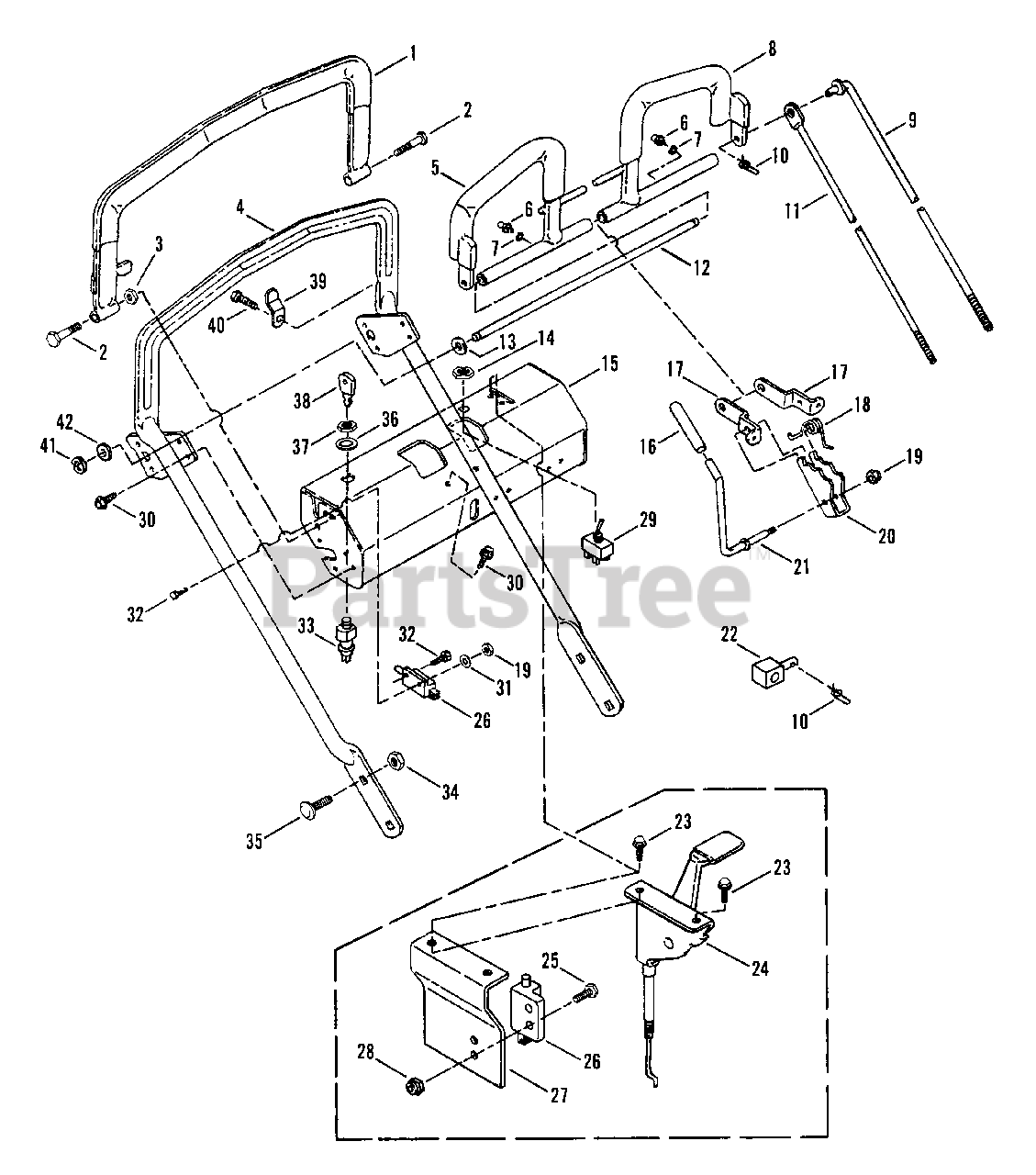

Loop Handle & Control Assemblies Parts Diagram

  • Title

1

Snapper 7040710

BAIL, OPC (With Grip)
(Superseded to 7040710YP)

Note: Was 17162

$119.99

$

Usually ships in 2-12 days

0

2

Snapper 5025010X14

BOLT, 1/4-20 X 1-3/4" GD5 YZ
(Superseded to 5025010X14SM)

Note: Was 91003

$3.99

$

In Stock, only 1 left!

0

2

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7090977

NUT, 1/4-20 Hex
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

3

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 4 left!

0

5

Snapper 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

$5.49

$

In Stock, only 4 left!

0

6

Snapper 5041931

SPACER, .38 X .50 X 1.25
(Superseded to 5041931SM)

$5.99

$

In Stock, only 4 left!

0

7

Snapper 2108765

BOLT-WHEEL 3/8-16X2.781 .750 THRD YELLOW
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

8

Snapper 80003590

WASHER-0500(0.51IDX0.87ODX.06THK) BLK
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1714760

GAUGE WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

12

Snapper 7022166

ROD, Pivot
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

13

Snapper 7091030

WASHER, 1/2 Flat
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 7012686

NUT, 1/2-27 (Special)
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7034457

CONTROL, Console
(Superseded to 7034457YP)

$205.99

$

Usually ships in 2-12 days

0

16

Snapper 7023801

GRIP, Neutral Latch
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

17

Snapper 7033193

BRACKET, Neutral Mounting
(Superseded to 7033193YP)

$23.99

$

Usually ships in 2-12 days

0

18

Snapper 7017323

SPRING, Neutral
(Superseded to 7017323YP)

$9.99

$

Usually ships in 2-12 days

0

19

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7033479

LATCH
(Superseded to 7033479YP)

$39.99

$

Usually ships in 2-12 days

0

21

Snapper 7017322

LEVER, Neutral Latch
(Superseded to 7017322YP)

$18.99

$

Usually ships in 2-12 days

0

22

Snapper 7024607

SWIVEL
(Superseded to 7024607YP)

$8.49

$

In Stock, only 2 left!

0

23

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 12

0

24

Snapper 7024665

CONTROL, Throttle (Kohler)
(Superseded to 7024665YP)

$17.99

$

Usually ships in 2-12 days

0

Snapper 7022354

CONTROL, Throttle (Kawasaki)
(Superseded to 7022354YP)

$28.99

$

Usually ships in 2-12 days

0

25

Snapper 7091631

SCREW, #10-24 x 1/2" Hex Head, Machine
(Superseded to 7091631YP)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 7027225

SWITCH, OPC
(Superseded to 7027225YP)

$9.99

$

Usually ships in 2-12 days

0

27

Snapper 7034459

BRACKET, Reverse Throttle
(Superseded to 7034459YP)

$14.99

$

Usually ships in 2-12 days

0

28

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

29

Snapper 7029715

SWITCH
(Superseded to 7029715YP)

$59.99

$

In Stock, only 2 left!

0

30

Snapper 7091122

SCREW,1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7091098

WASHER, 1/4 Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7077873

SCREW, #12-14 x 1/2" Hex Slotted Head, Self-Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper 7017817

SWITCH, ON-OFF
(Superseded to 7017817YP)

$31.99

$

In Stock, only 2 left!

0

34

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 9

0

35

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

36

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, Qty 6

0

37

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 15

0

39

Snapper 7033889

SPRING, Loop Handle
(Superseded to 7033889YP)

$50.99

$

Usually ships in 2-12 days

0

40

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Head, Self-Tapping
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

41

Snapper 7014341

E-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

42

Snapper 7091030

BUSHING, 1/2" Machine
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0
