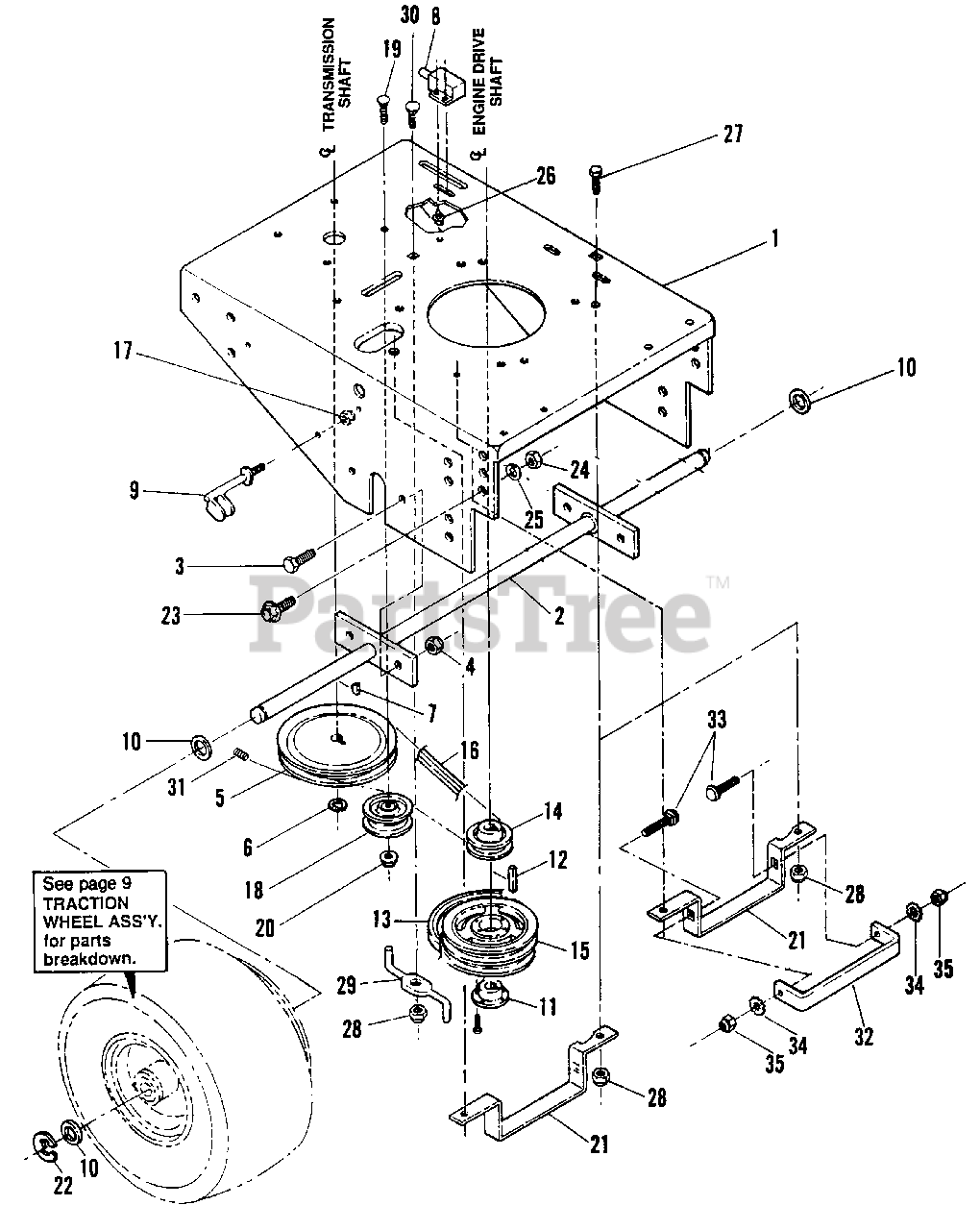

PL 7140KWV (80336) - Snapper Walk-Behind Mower, 14hp Rear Deck, Axle & Transmission Pulley Assemblies Parts Diagram

Walk-Behind Mower, 14hp

Rear Deck, Axle & Transmission Pulley Assemblies Parts Diagram

  • Title

1

Snapper 7040728

REAR DECK WELDMENT

$

$

Currently unavailable

2

Snapper 7047952

AXLE WELDMENT
(Superseded to 7047952YP)

$153.99

$

Usually ships in 2-12 days

0

3

Snapper 7091304

SCREW, 3/8" C x 1", Hex, Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 5

0

4

Snapper 7091299

NUT, 3/8" C, Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7017532

PULLEY, Transmission
(Superseded to 7017532YP)

$71.99

$

Usually ships in 2-12 days

0

6

Snapper 7012763

SNAP RING, 5/8"
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 5

0

7

Snapper 7010211

KEY, Woodruff 09
(Superseded to 7010211YP)

$3.49

$

In Stock, only 3 left!

0

8

Snapper 7019098

SWITCH, Blade
(Superseded to 1723552SM)

$8.49

$

Usually ships in 2-12 days

0

9

Snapper 7040627

SCRAPER, Wheel
(Superseded to 7040627YP)

$42.99

$

Usually ships in 2-12 days

0

10

Snapper 7016561

BUSHING, Axle
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 8

0

11

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

Note: (Includes Bolts)

$50.99

$

Usually ships in 2-12 days

0

12

Snapper 7017033

KEY, Sq. 1/4" x 2 1/2"
(Superseded to 7017033YP)

$5.49

$

In Stock, Qty 5

0

13

Snapper 7029908

BELT, Engine/Deck 36"
(Superseded to 7029908YP)

Note: Was 38624 (Model PMA7360)

$56.99

$

Usually ships in 2-12 days

0

Snapper 7029907

BELT, Engine/Deck 48"
(Superseded to 7029907YP)

Note: Was 22541 (Model PMA7480)

$57.99

$

In Stock, only 3 left!

0

14

Snapper 7017539

PULLEY, Engine/Transmission
(Superseded to 7017539YP)

$63.99

$

Usually ships in 2-12 days

0

15

Snapper 7017337

PULLEY, Engine/Deck

$

$

Not available

16

Snapper 7017334

BELT, Engine/Transmission
(Superseded to 7017334YP)

$49.99

$

In Stock, only 1 left!

0

17

Snapper 7090289

NUT, 3/8" F, Hex.
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

18

Snapper 7019078

PULLEY,Idler
(Superseded to 7019078YP)

$42.99

$

In Stock, only 1 left!

0

19

Snapper 7091810

BOLT, 3/8C x 1-3/4" Grade 5 Carriage
(Superseded to 703879)

Note: Was 91158

$3.99

$

In Stock, Qty 13

0

20

Snapper 7091299

NUT, 3/8C Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7033420

BELT GUIDE, Engine
(Superseded to 7033420YP)

Note: (Model PMA7360)

$110.99

$

Usually ships in 2-12 days

0

Snapper 7033428

BELT GUIDE, Engine

Note: (Model PMA7480)

$

$

Not available

22

Snapper 7012730

E-RING, 1"
(Superseded to 7012730YP)

$3.99

$

In Stock, only 2 left!

0

23

Snapper 7090622

BOLT, 1/2" C x 1- 1/4", Hex. Flange
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7091316

NUT, 1/2" C
(Superseded to 703340)

Note: Was 90258

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 7090254

WASHER, 1/2" Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7077873

SCREW, #12 - 14 x 1/2" Lg. Hex Fig. Self-Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7091318

BOLT, 5/16 x 3/4" Hex
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 19

0

28

Snapper 7091298

NUT, 5/16" Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 10

0

29

Snapper 7033341

BELT KEEPER
(Superseded to 7033341YP)

$12.99

$

Usually ships in 2-12 days

0

30

Snapper 7091303

BOLT, 5/16" x 1" Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 16

0

31

Snapper 7077680

SETSCREW, 1/4-20 x 5/16" Knurled Cup Point w/ patch lock

$

$

Not available

32

Snapper 7024288

SUPPORT, Belt
(Superseded to 7024288YP)

Note: (PMA7480 Models)

$13.99

$

Usually ships in 2-12 days

0

33

Snapper 7090496

BOLT, 1/4C x 1" Grade 2 Carriage
(Superseded to 7090496YP)

Note: (PMA7480 Models)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7090574

LOCKWASHER, 1/4" Int/External Tooth

Note: (PMA7480 Models)

$

$

Not available

35

Snapper 7076978

NUT, 1/4C Nyloc
(Superseded to 703232)

Note: (PMA7480 Models)

$4.49

$

In Stock, Qty 20+

0
