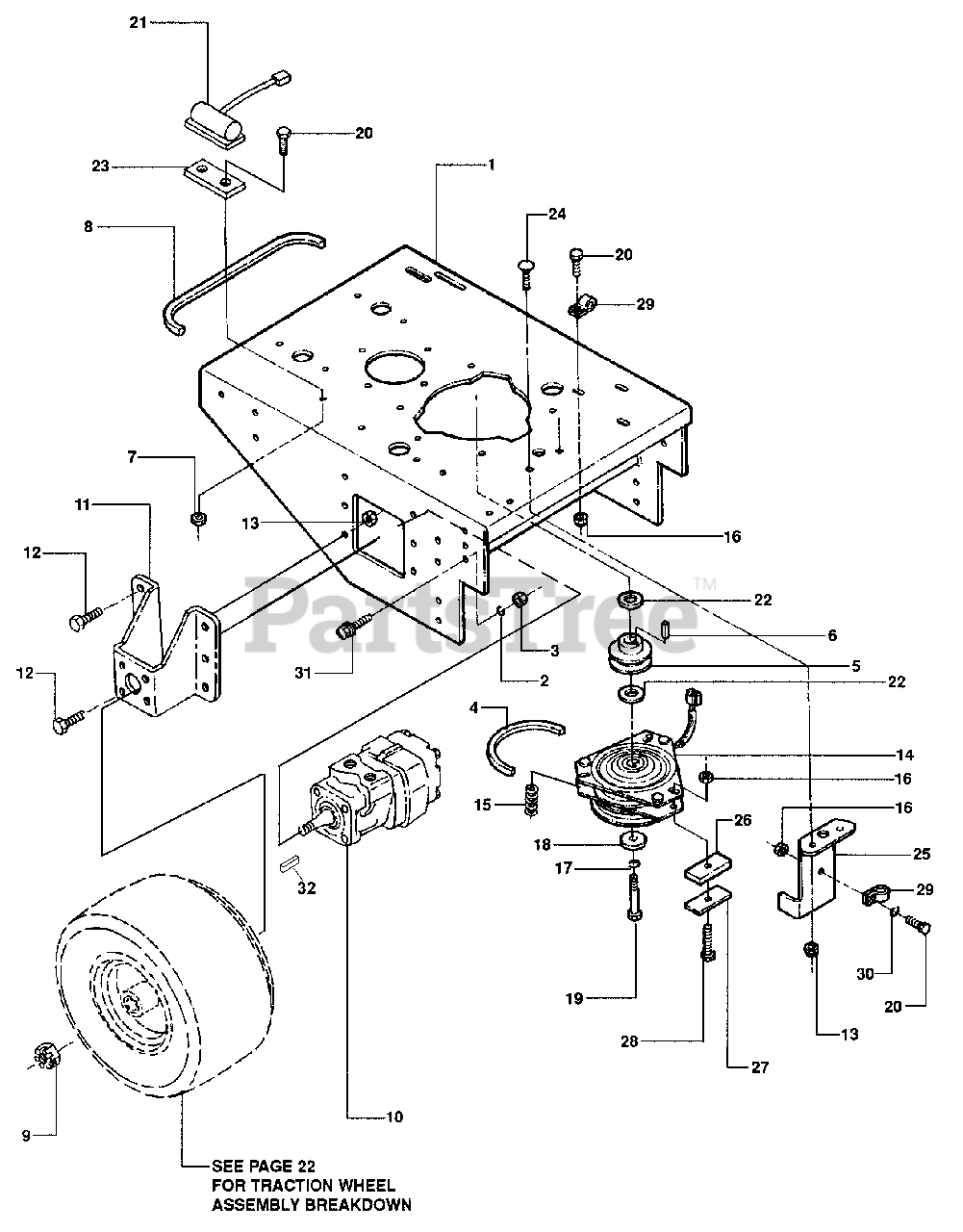

PL 7H1404KV (80683) - Snapper Walk-Behind Mower, 14hp Rear Deck Assembly Parts Diagram

Walk-Behind Mower, 14hp

Rear Deck Assembly Parts Diagram

  • Title

1

Snapper 7026922

WELDMENT, Rear Deck

$

$

Currently unavailable

2

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$8.49

$

In Stock, only 1 left!

0

4

Snapper 7029908

BELT, Engine/Deck,
(Superseded to 7029908YP)

Note: 36" Model

$58.99

$

Usually ships in 2-12 days

0

Snapper 7029907

BELT, Engine/Deck,
(Superseded to 7029907YP)

Note: 48" Model

$71.99

$

In Stock, only 3 left!

0

Snapper 7027346

BELT, Engine/Deck,
(Superseded to 7027346YP)

Note: 52" Model

$66.99

$

Usually ships in 2-12 days

0

5

Snapper 7027132

PULLEY, Engine/Hydro 4"
(Superseded to 7027132YP)

$92.99

$

Usually ships in 2-12 days

0

6

Snapper 7019188

KEY, 1/4" Square Tapered
(Superseded to 7019188YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7091298

NUT 5/16-18 Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7029615

BELT, Engine/Hydro
(Superseded to 7029615YP)

$61.99

$

In Stock, only 2 left!

0

9

Snapper 7027194

NUT, Wheel Locking
(Superseded to 7027194YP)

$82.99

$

Usually ships in 2-12 days

0

10

Snapper 7027128

WHEEL MOTOR

Note: (White #502-885-1110)

$

$

Currently unavailable

11

Snapper 7026907

WHEEL MOUNT

$

$

Not available

12

Snapper 7091304

SCREW, 3/8-16 X 1" Hex Head
(Superseded to 703407)

Note: Was 90563

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7029678

CLUTCH, Electric
(Superseded to 7029678YP)

Note: (1" Bore, Warner #5215-13)

$615.99

$

Usually ships in 2-12 days

0

15

Snapper 7014950

SPRING, Coil
(Superseded to 7014950YP)

$9.49

$

Usually ships in 2-12 days

0

16

Snapper 7090854

NUT, 3/8-24 Hex Lock
(Superseded to 703901)

$3.49

$

In Stock, only 4 left!

0

17

Snapper 7091301

WASHER, 7/16" Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7016147

SPACER
(Superseded to 7091807SM)

$

$

Not available

19

Snapper 7091029

SCREW, M10-1.5 X 55mm Hex Head Cap
(Superseded to 7091029YP)

$4.99

$

Usually ships in 2-12 days

0

Snapper 7027266

BOLT, 7/16F X 3"
(Superseded to 7027266SM)

Note: (Briggs & Stratton Only)

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 7091318

SCREW, 5/16-18 X 3/4"
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7027235

CAPACITOR

Note: (Kawasaki Engines Only)

$

$

Currently unavailable

22

Snapper 7073011

BUSHING, 1.5" O.D. X 1" I.D.

Note: Was 27264

$

$

Not available

23

Snapper 7026978

MOUNT, Capacitor
(Superseded to 7026978YP)

Note: (Kawasaki Engines Only)

$7.99

$

Usually ships in 2-12 days

0

24

Snapper 7027181

BOLT, 3/8-16 X 1-1/4" Carriage

$

$

Not available

25

Snapper 7027233

BRACKET, Clutch
(Superseded to 7027233YP)

$187.99

$

Usually ships in 2-12 days

0

26

Snapper 7029704

BUMPER, Electric Clutch
(Superseded to 7029704YP)

$25.99

$

In Stock, only 1 left!

0

27

Snapper 7034448

SUPPORT, Electric Clutch Bumper
(Superseded to 7034448YP)

$

$

Not available

28

Snapper 7027168

BOLT, 5/16-18 X 1"
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 27261

"J" CLIP, Clutch

$

$

Currently unavailable

30

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7090622

BOLT, 1/2-13 X 1-1/4" Hex Flange Lock
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7012830

Key, 3/16" Square x 3/4" Long
(Superseded to 2001022MA)

$4.99

$

In Stock, Qty 11

0
