PL 7H140KW (80483) - Snapper Walk-Behind Mower, 14hp Hose Assembly Parts Diagram

Walk-Behind Mower, 14hp

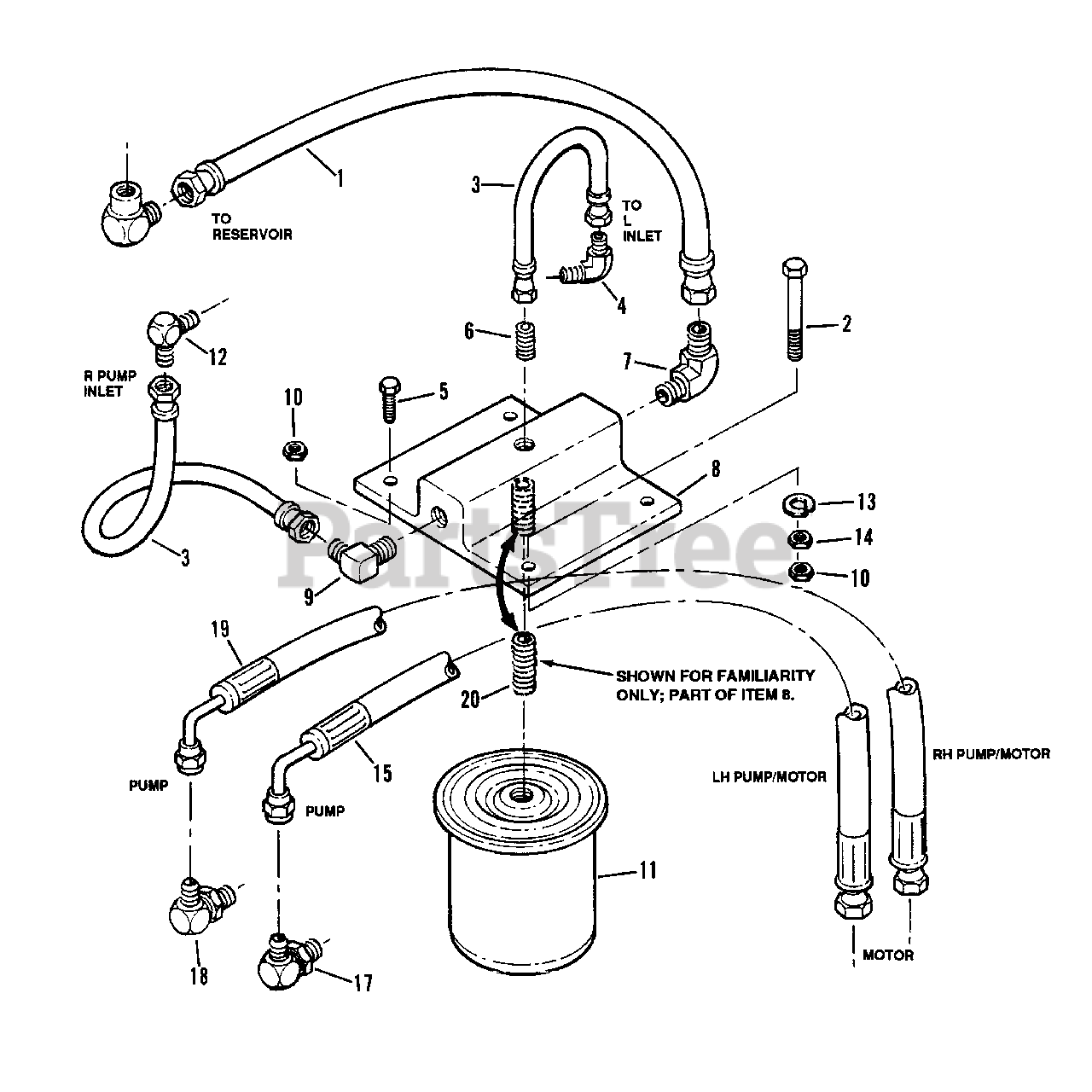

Hose Assembly Parts Diagram

  • Title

1

Snapper 7027118

16" HOSE, 1/2"

$

$

Not available

2

Snapper 7027221

SCREW, 3/8-16 x 3 1/2"
(Superseded to 7027221YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7027116

9" HOSE
(Superseded to 7027116YP)

$25.99

$

In Stock, only 2 left!

0

4

Snapper 7027110

FITTING, 90 Degree with "O" Ring
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7091304

SCREW, 3/8-16 x 1"
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 5

0

6

Snapper 7027104

FITTING, Straight
(Superseded to 7027104YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7027106

FITTING, 90 Degree
(Superseded to 7027106YP)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7027123

OIL FILTER MOUNT
(Superseded to 7027123YP)

Note: Was 27165 (Includes item 20)

$107.99

$

Usually ships in 2-12 days

0

9

Snapper 7027105

FITTING, 45 Degree
(Superseded to 7027105YP)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7027164

OIL FILTER
(Superseded to 7027164YP)

Note: Nelson P/N 85437-D

$

$

Not available

12

Snapper 7027109

FITTING, 90 Degree

$

$

Not available

13

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

14

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 5

0

15

Snapper 7027119

HOSE, PUMP/MOTOR, Left Hand
(Superseded to 7027119YP)

$275.99

$

Usually ships in 2-12 days

0

?16

Snapper 7027108

FITTING, Straight with "O" Ring
(Superseded to 7027108YP)

$41.99

$

Usually ships in 2-12 days

0

17

Snapper 7027113

FITTING, 45 Degree with "O" Ring
(Superseded to 7027113YP)

$28.99

$

In Stock, only 1 left!

0

18

Snapper 7027112

FITTING, 90 Degree with "O" Ring
(Superseded to 7027112YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper 7027120

HOSE, PUMP/MOTOR, Right Hand
(Superseded to 7027120YP)

$128.99

$

Usually ships in 2-12 days

0

20

Snapper 7027200

FITTING, Straight 1", #12 Thread

$

$

Currently unavailable

Snapper 7061207

PP 12.50 KW-Pistol

Note: BACKSIDE IDLER KIT

$

$

Currently unavailable

Snapper 7061208

PP 140 KMV-Pistol

Note: BACKSIDE IDLER KIT

$

$

Currently unavailable

Snapper 7061209

PL1250KW-Loop

Note: BACKSIDE IDLER KIT

$

$

Currently unavailable

Snapper 7061210

PL140KWV-Loop

Note: BACKSIDE IDLER KIT

$

$

Currently unavailable
