PL 7H1804BVE (80719) - Snapper Walk-Behind Mower, 18hp Wiring Diagram - Main Harness Parts Diagram

Walk-Behind Mower, 18hp

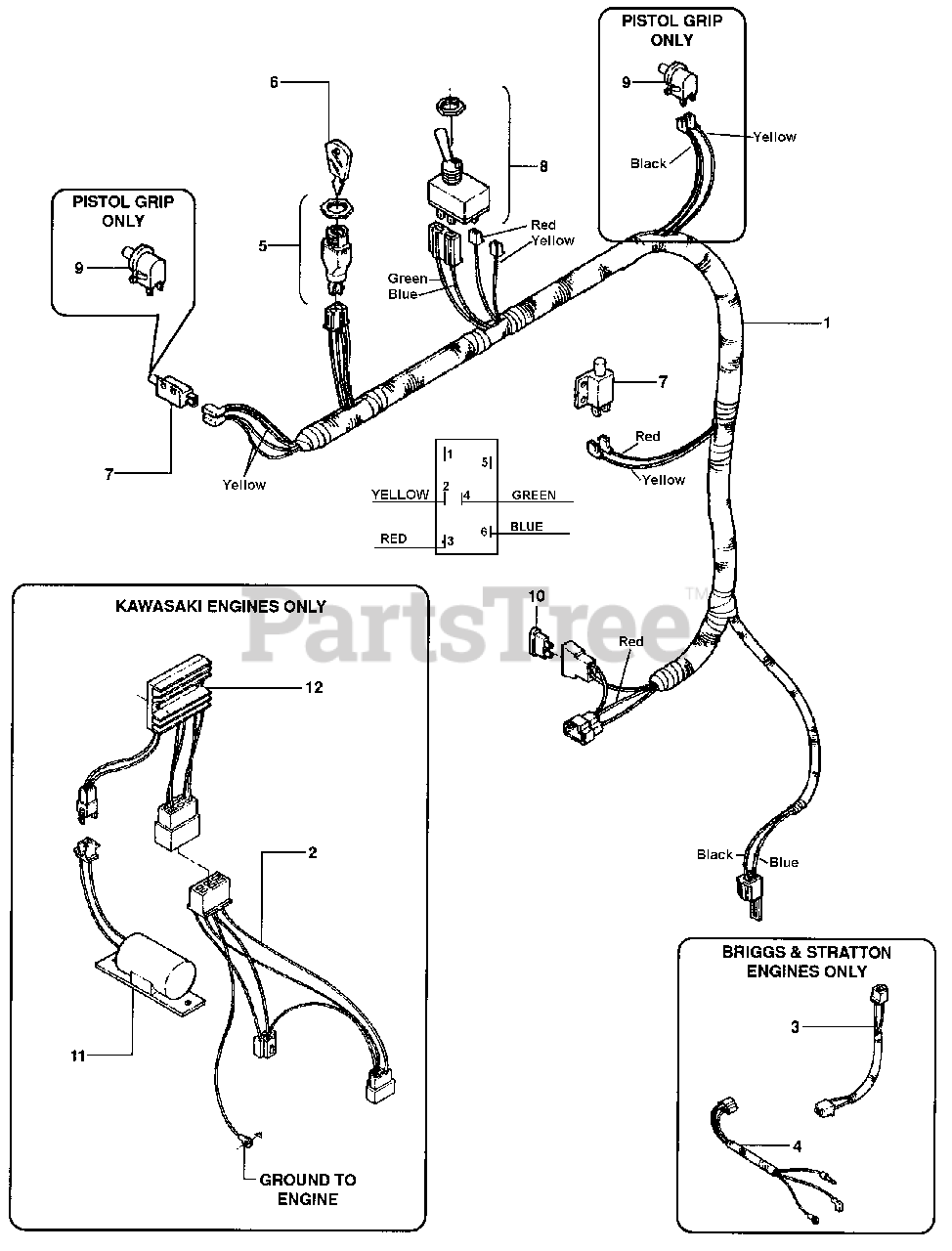

Wiring Diagram - Main Harness Parts Diagram

  • Title

1

Snapper 7027207

HARNESS, Main Wire (Pistol Grip)

$

$

Not available

Snapper 7027258

HARNESS, Main Wire (Loop Handle)

$

$

Currently unavailable

2

Snapper 7027226

PIGTAIL, Engine (Kawasaki)
(Superseded to 7027226YP)

$21.99

$

Usually ships in 2-12 days

0

3

Snapper 7027259

PIGTAIL, Clutch (Briggs & Stratton Only
(Superseded to 7027259YP)

$52.99

$

Usually ships in 2-12 days

0

4

Snapper 7027260

PIGTAIL, Engine (Briggs & Stratton Only)

$

$

Not available

5

Snapper 7017817

KEYSWITCH
(Superseded to 7017817YP)

$31.99

$

In Stock, only 2 left!

0

6

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 12

0

7

Snapper 7027225

SWITCH, OPC & Neutral NC
(Superseded to 7027225YP)

$

$

Not available

8

Snapper 7029715

SWITCH, Blade Control
(Superseded to 7029715YP)

$59.99

$

In Stock, only 2 left!

0

9

Snapper 7023354

SWITCH, OPC (Pistol Grip) NC
(Superseded to 7023354YP)

Note: Was 17590

$12.99

$

Usually ships in 2-12 days

0

10

FUSE, 15A

$

$

Not available

11

Snapper 7027215

CAPACITOR

$

$

Currently unavailable

12

Snapper 27214

MODULE (Kawasaki)

$

$

Currently unavailable
