Plow - BCS America Front Plow Attachment Front Plow (SN: 10000 & Above) Parts Diagram

Front Plow Attachment

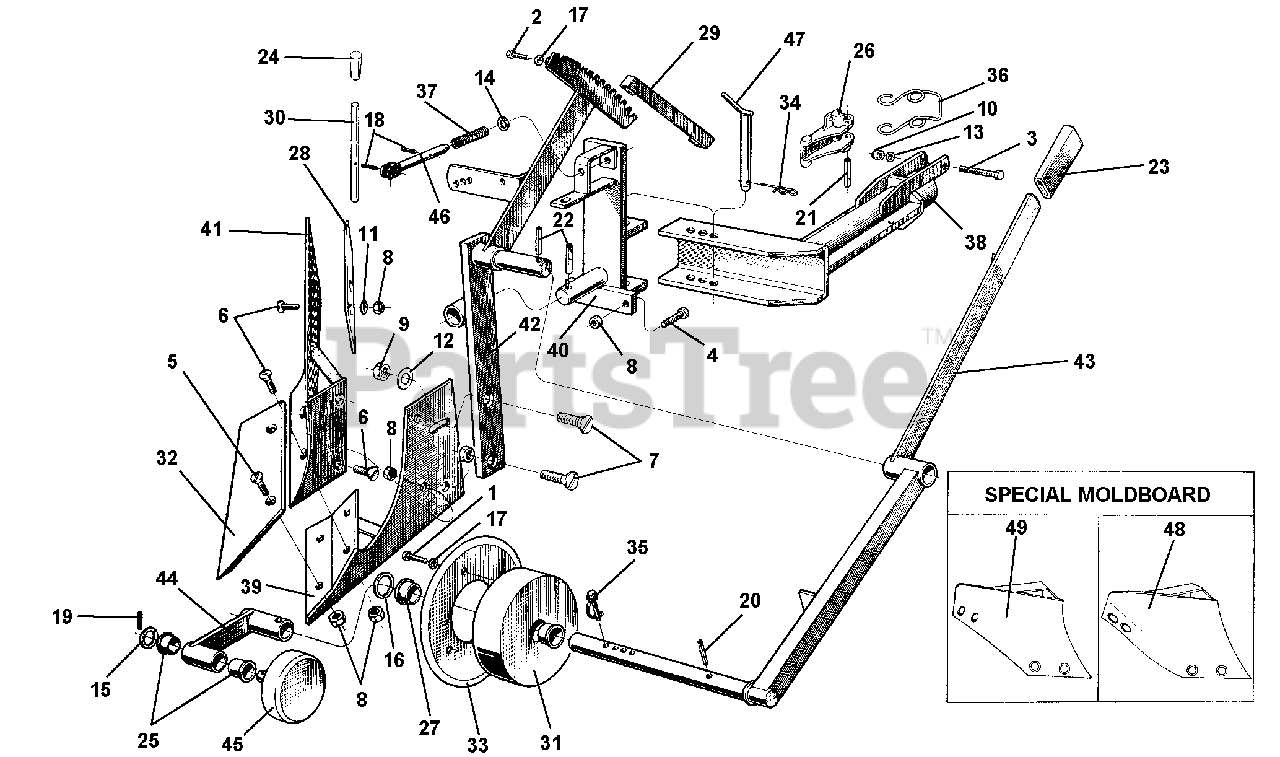

Front Plow (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.12149

SCREW M8 X 12

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12156

SCREW M8 X 60

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12211

SCREW M10 X 30

$1.49

$

In Stock, Qty 8

0

5

BCS America 31131100

SCREW M10 X 22

$4.99

$

Usually ships in 5-8 days

0

6

BCS America 311.31105

SCREW M10 X 25

$

$

Currently unavailable

7

BCS America 311.31116

SCREW M12 X 35

$

$

Currently unavailable

8

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

9

BCS America 31211120

NUT M12

$1.49

$

In Stock, Qty 5

0

10

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

11

BCS America 314.11105

FLAT WASHER 10.5 X 21

$1.49

$

In Stock, only 1 left!

0

12

BCS America 31411130

WASHER, FLAT 13

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 314.14084

WASHER, FLAT

$0.99

$

Usually ships in 5-8 days

0

14

BCS America 31415120

WASHER, FLAT

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 314.15164

WASHER, FLAT

$1.99

$

Usually ships in 5-8 days

0

16

BCS America 31415250

WASHER, FLAT 25

$2.49

$

Usually ships in 5-8 days

0

17

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

18

BCS America 34211040

PIN, LOCKING 4 X 20

$1.49

$

Usually ships in 5-8 days

0

19

BCS America 342.11063

PIN, LOCKING

$1.49

$

Usually ships in 5-8 days

0

20

BCS America 342.11064

PIN, LOCKING 6 X 40

$1.49

$

Usually ships in 5-8 days

0

21

BCS America 342.11084

PIN

$1.99

$

Usually ships in 5-8 days

0

22

BCS America 342.11101

PIN

$2.49

$

Usually ships in 5-8 days

0

23

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

24

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

25

BCS America 552.43904

BUSHING

$16.99

$

Usually ships in 5-8 days

0

26

BCS America 552.50638

LEVER

$17.99

$

Usually ships in 5-8 days

0

27

BCS America 552.50938

BUSHING

$

$

Currently unavailable

28

BCS America 561.50901

PLATE

$

$

Currently unavailable

29

BCS America 561.50929

LEVER PROTECTOR

$

$

Currently unavailable

30

BCS America 561.50942

ADJUSTING LEVER

$

$

Currently unavailable

31

BCS America 561.50947

SKIM COULTER

$

$

Currently unavailable

32

BCS America 563.50923

SHARE

$

$

Currently unavailable

33

BCS America 563.50948

DISC

$

$

Currently unavailable

34

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

35

BCS America 580.50512

SAFETY PIN

$15.99

$

Usually ships in 5-8 days

0

36

BCS America 580.50639

HOOK

$27.99

$

Usually ships in 5-8 days

0

37

BCS America 580.50946

SPRING

$

$

Currently unavailable

38

BCS America 590.50902

PLOW COUPLING

$

$

Currently unavailable

39

BCS America 590.50908

MOLDBOARD SUPPORT

$

$

Currently unavailable

40

BCS America 590.50909

CENTRAL SUPPORT COUPLING

$

$

Currently unavailable

41

BCS America 590.59015

MOLDBOARD

$

$

Currently unavailable

42

BCS America 590.50916

CENTRAL SUPPORT

$

$

Currently unavailable

43

BCS America 590.50924

LEVER

$

$

Currently unavailable

44

BCS America 590.5093

WHEEL SUPPORT

$

$

Currently unavailable

45

BCS America 590.50935

WHEEL

$

$

Currently unavailable

46

BCS America 590.50939

FORK PIN

$

$

Currently unavailable

47

BCS America 590.50943

COUPLING PIN

$

$

Currently unavailable

48

BCS America 590.5096

SPECIAL MOLDBOARD

$

$

Currently unavailable

49

BCS America 590.50964

SPECIAL MOLDBOARD

$

$

Currently unavailable
