PM 40 (6210700x116NA) - McCulloch 21" Snow Thrower (2007) Drive Components Parts Diagram

21" Snow Thrower

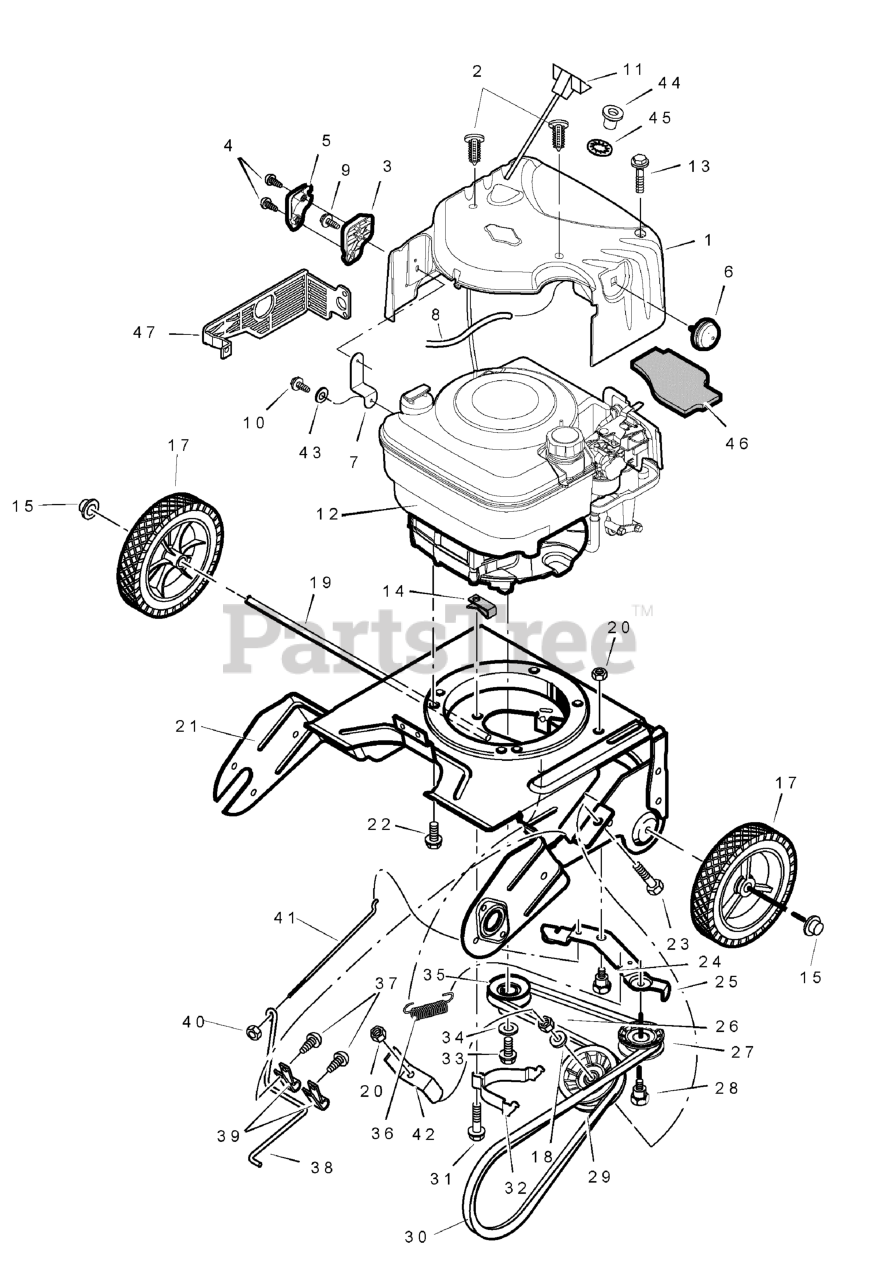

Drive Components Parts Diagram

  • Title

1

Murray 1501812MA

Cover, Engine

$103.99

$

Usually ships in 2-12 days

0

2

Murray 26X316MA

Screw, #8x1.25

$4.49

$

In Stock, only 2 left!

0

3

Murray 1501814MA

Base, Chute Rod

$7.99

$

In Stock, only 1 left!

0

4

Murray 26X292MA

Screw, #10-14x.62

$7.49

$

Usually ships in 2-12 days

0

5

Murray 1501815MA

Cover, Chute

$12.99

$

In Stock, only 2 left!

0

6

Murray 790221

Primer-Carburetor
(Superseded to 793382)

$10.99

$

In Stock, Qty 5

0

7

Murray 1501813MA

Bracket, Engine Chute

$4.99

$

Usually ships in 2-12 days

0

8

Murray 1259MA

Hose, Primer 5 3/4 Inches

$7.99

$

In Stock, only 2 left!

0

9

Murray 780212MA

Screw

$3.99

$

Usually ships in 2-12 days

0

10

Murray 578408MA

Screw

$3.99

$

Usually ships in 2-12 days

0

11

Murray 1501724MA

Grip, Standard Recoil
(Superseded to 691915)

$6.49

$

In Stock, Qty 12

0

12

Engine

Note: (1205020354E1)

$

$

Not available

13

Murray 01X215MA

Bolt, #10-24x1.75

$3.99

$

Usually ships in 2-12 days

0

14

Murray 578109MA

Retainer

$6.49

$

In Stock, Qty 8

0

15

Murray 711627MA

Nut, Push Cap

$

$

Not available

17

Murray 1740063MA

Tire & Rim
(Superseded to 760714MA)

$24.99

$

Usually ships in 2-12 days

0

18

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0

19

Murray 762280MA

Axle

$28.99

$

In Stock, only 1 left!

0

20

Murray 71111MA

Nut, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

21

Murray 1502011E201MA

Frame, Motor Box

$512.99

$

Usually ships in 2-12 days

0

22

Murray 47792MA

Bolt, 3/8-16x1.00

$3.99

$

Usually ships in 2-12 days

0

23

Murray 71007MA

Screw
(Superseded to 703589)

$4.49

$

In Stock, Qty 12

0

24

Murray 009X48MA

Bolt, Shoulder .375-16x.640

$7.49

$

Usually ships in 2-12 days

0

25

Murray 762254MA

Bracket, Idler Arm

$19.99

$

Usually ships in 2-12 days

0

26

Murray 71044MA

Nut

$3.49

$

Usually ships in 2-12 days

0

27

Murray 762257MA

Pulley, Idler V-Belt

$18.99

$

Usually ships in 2-12 days

0

28

Murray 762258MA

Bolt, Shoulder

$7.49

$

Usually ships in 2-12 days

0

29

Murray 762256MA

Pulley, Flat Idler

$

$

Not available

30

Murray 37X131MA

Belt

$63.99

$

Usually ships in 2-12 days

0

31

Murray 315312MA

Screw, 1/4-14x1.25

$3.49

$

Usually ships in 2-12 days

0

32

Murray 762267MA

Guide, Belt

$6.49

$

Usually ships in 2-12 days

0

33

Murray 910828MA

Screw, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

34

Murray 71060MA

Washer, Sptlk .31x.58
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Murray 762255MA

Pulley, 2.50 4L .75ID

$19.99

$

Usually ships in 2-12 days

0

36

Murray 165X143MA

Spring, Extension

$6.49

$

Usually ships in 2-12 days

0

37

Murray 26X263MA

Screw, 1/4-20

$4.99

$

In Stock, only 1 left!

0

38

Murray 762288MA

Arm, Brake

$9.99

$

Usually ships in 2-12 days

0

39

Murray 762285MA

Clamp

$3.99

$

Usually ships in 2-12 days

0

40

Murray 312300MA

Nut, 10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

41

Murray 762287MA

Rod, Adjustment

$9.99

$

Usually ships in 2-12 days

0

42

Murray 762380MA

Guide, Belt/Brace

$31.99

$

Usually ships in 2-12 days

0

43

Murray 018X35MA

Washer, Lock

$3.49

$

Usually ships in 2-12 days

0

44

Murray 1501919MA

Guide, Rope

$3.99

$

Usually ships in 2-12 days

0

45

Murray 028X84MA

Washer

$3.49

$

Usually ships in 2-12 days

0

46

Murray 1501920MA

Seal, Foam

$9.49

$

Usually ships in 2-12 days

0

47

Murray 1502130MA

Guard, Muffler

$19.99

$

Usually ships in 2-12 days

0
