PMA 7482 (80368) - Snapper 48" Pro Mower Deck Assembly 48" Mower Deck Assembly Parts Diagram

48" Pro Mower Deck Assembly

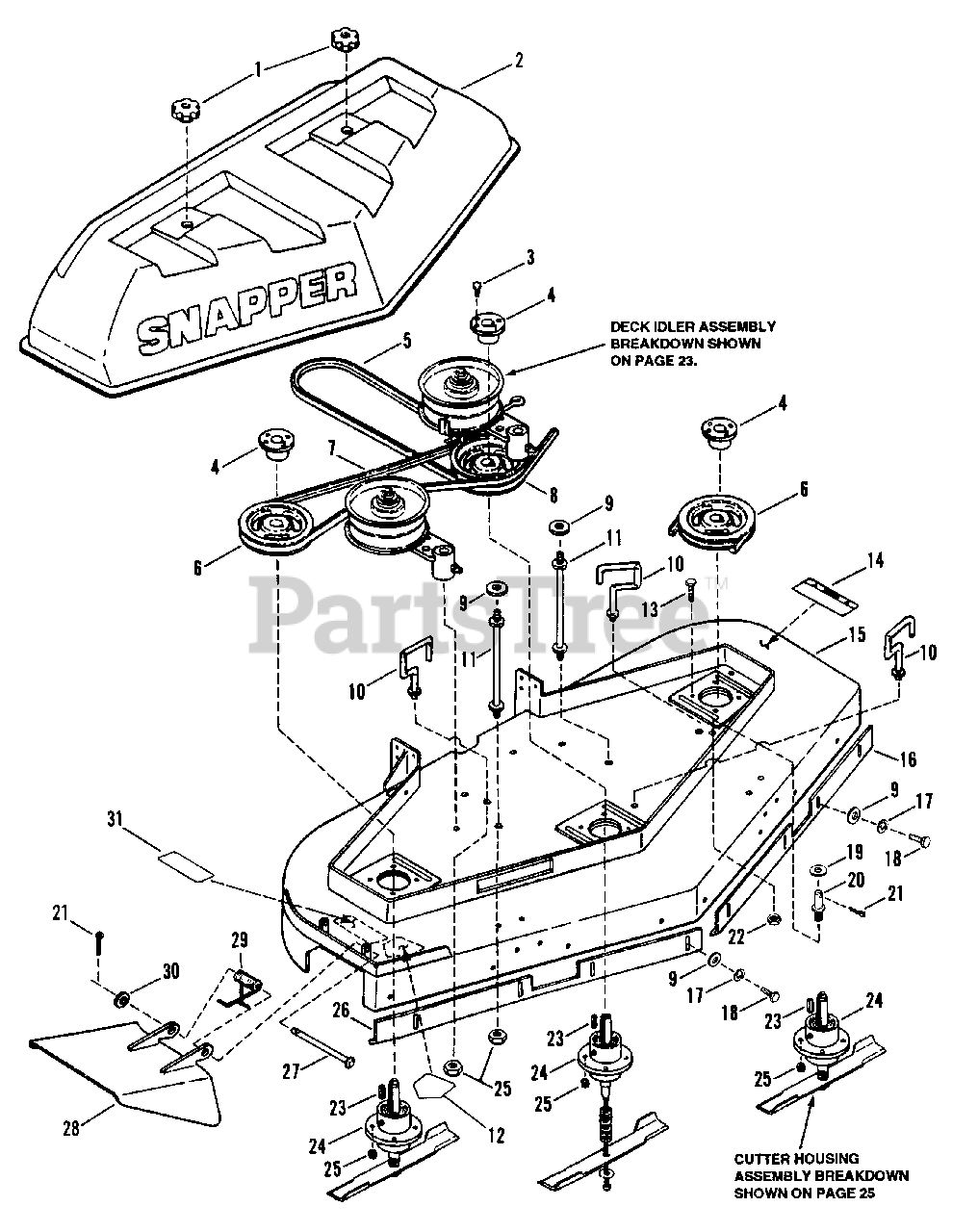

48" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7023735

KNOB, Hood
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7017874

HOOD
(Superseded to 7017874YP)

$378.99

$

Usually ships in 2-12 days

0

3

Snapper 7090643

BOLT, 1/4-20 x 7/8" Hex Head Cap
(Superseded to 7090643YP)

$

$

Not available

4

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 7029907

BELT, Engine To Deck
(Superseded to 7029907YP)

Note: (Series 2) (Was 22541 on Series 1)

$57.99

$

In Stock, only 3 left!

0

6

Snapper 7017336

PULLEY, Cutter Blade Drive
(Superseded to 7017336YP)

$90.99

$

Usually ships in 2-12 days

0

7

Snapper 7019205

BELT, Blade, 48" Deck
(Superseded to 7019205YP)

$56.99

$

Usually ships in 2-12 days

0

8

Snapper 7017337

PULLEY, Cutter Blade Drive (Double Groove)

$

$

Not available

9

Snapper 7091047

WASHER, 13/32" I.D. x 1-1/2" O.D.

$

$

Not available

10

Snapper 7024285

GUIDE, Belt
(Superseded to 7024285YP)

Note: (Series 2)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7033417

GUIDE, Belt
(Superseded to 7033417YP)

Note: (Series 1)

$23.99

$

Usually ships in 2-12 days

0

11

Snapper 7022890

STUD, Hood Mount
(Superseded to 7022890YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 20+

0

13

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: Was 76941

$3.99

$

In Stock, only 3 left!

0

14

Snapper 7073647

DECAL, Caution
(Superseded to 7073647YP)

Note: Was 24156

$7.99

$

Usually ships in 2-12 days

0

15

Snapper 7041571

WELDMENT, 48" Deck

Note: (Series 2)(Was 40980 on Series 1)

$

$

Currently unavailable

16

Snapper 7032957

SKIRT, Front, Left Hand, 48" Deck

$

$

Not available

17

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

18

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7015464

STUD, Clutch Link
(Superseded to 7015464YP)

Note: (Series 1)

$7.49

$

In Stock, only 1 left!

0

20

Snapper 7027899

STUD

Note: (Series 2)

$

$

Currently unavailable

21

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

23

Snapper 7017033

KEY, Spindle
(Superseded to 7017033YP)

$5.49

$

In Stock, Qty 5

0

24

Snapper 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

$569.99

$

Usually ships in 2-12 days

0

25

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 10

0

26

Snapper 7032958

SKIRT, Front, Right Hand, 48" Deck

$

$

Currently unavailable

27

Snapper 7024124

ROD, Chute Pivot
(Superseded to 7024124YP)

$13.99

$

Usually ships in 2-12 days

0

28

Snapper 7040659

DEFLECTOR, Chute, 48" Deck
(Superseded to 7040659YP)

$128.99

$

Usually ships in 2-12 days

0

29

Snapper 7024125

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

30

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0
