PNE651GKA48200 - Exmark 48" Pioneer E-Series Zero-Turn Mower, Kawasaki FR (SN: 316000000 - 399999999) (2016) Fuel Tank Assembly Parts Diagram

48" Pioneer E-Series Zero-Turn Mower, Kawasaki FR

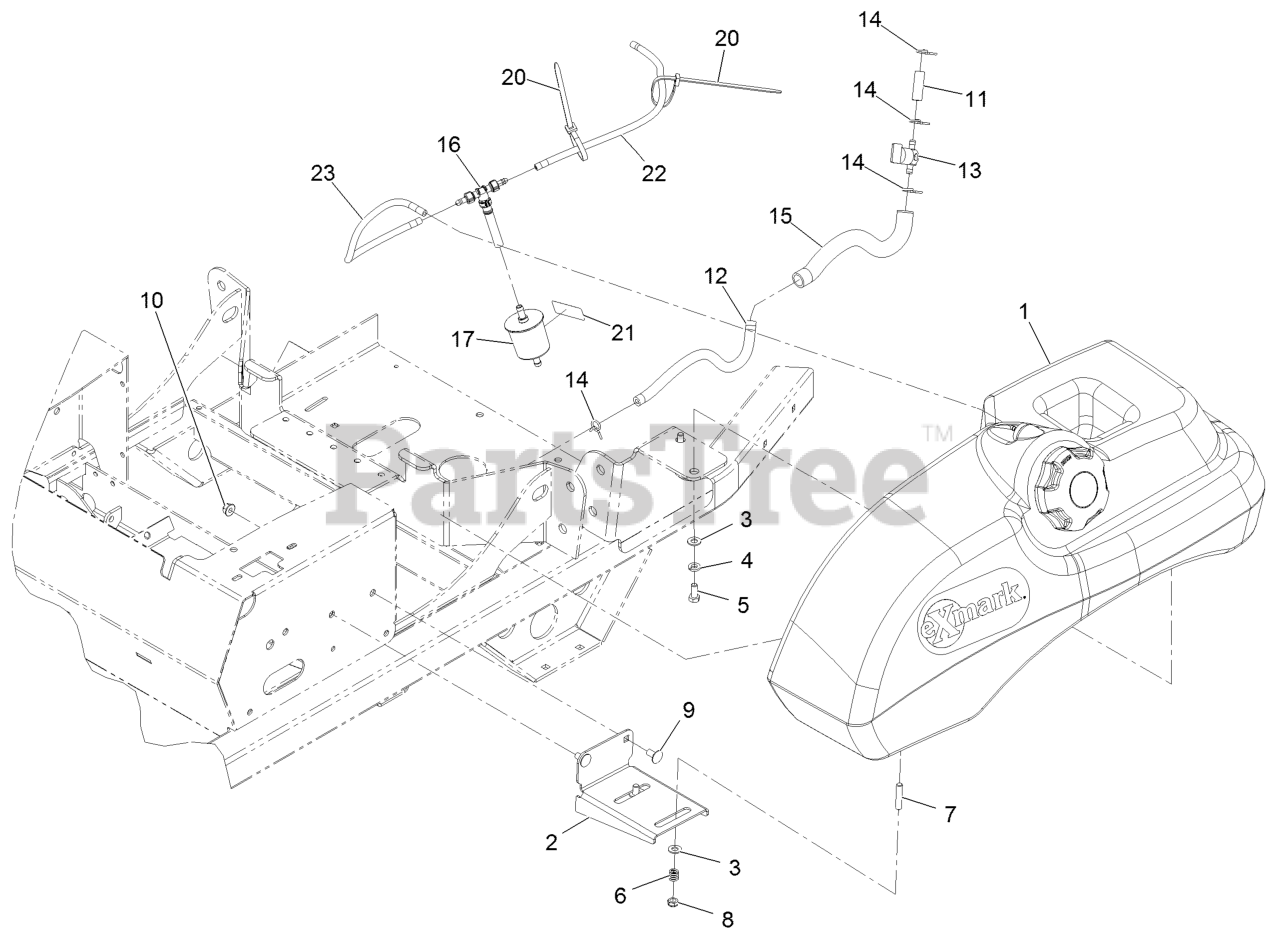

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 116-4610

ASM-FUEL TANK

$937.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3495-03

BRACKET-TANK AND FENDER

$

$

Not available

3

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

5

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

7

Exmark 1-633023

STUD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$6.99

$

In Stock, only 2 left!

0

8

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 14

0

11

Exmark 106-9492

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

12

Exmark 109-0282

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

14

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-4515

CONDUIT-FUEL LINE

$6.99

$

Usually ships in 3-6 days

0

16

Exmark 116-5464

TEE AND CHECK

$49.99

$

In Stock, only 2 left!

0

17

Exmark 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 20+

0

20

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 10

0

21

Exmark 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 116-4800

HOSE,EMISSIONS

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 116-4801

HOSE-EMISSIONS

$8.99

$

Usually ships in 3-6 days

0
