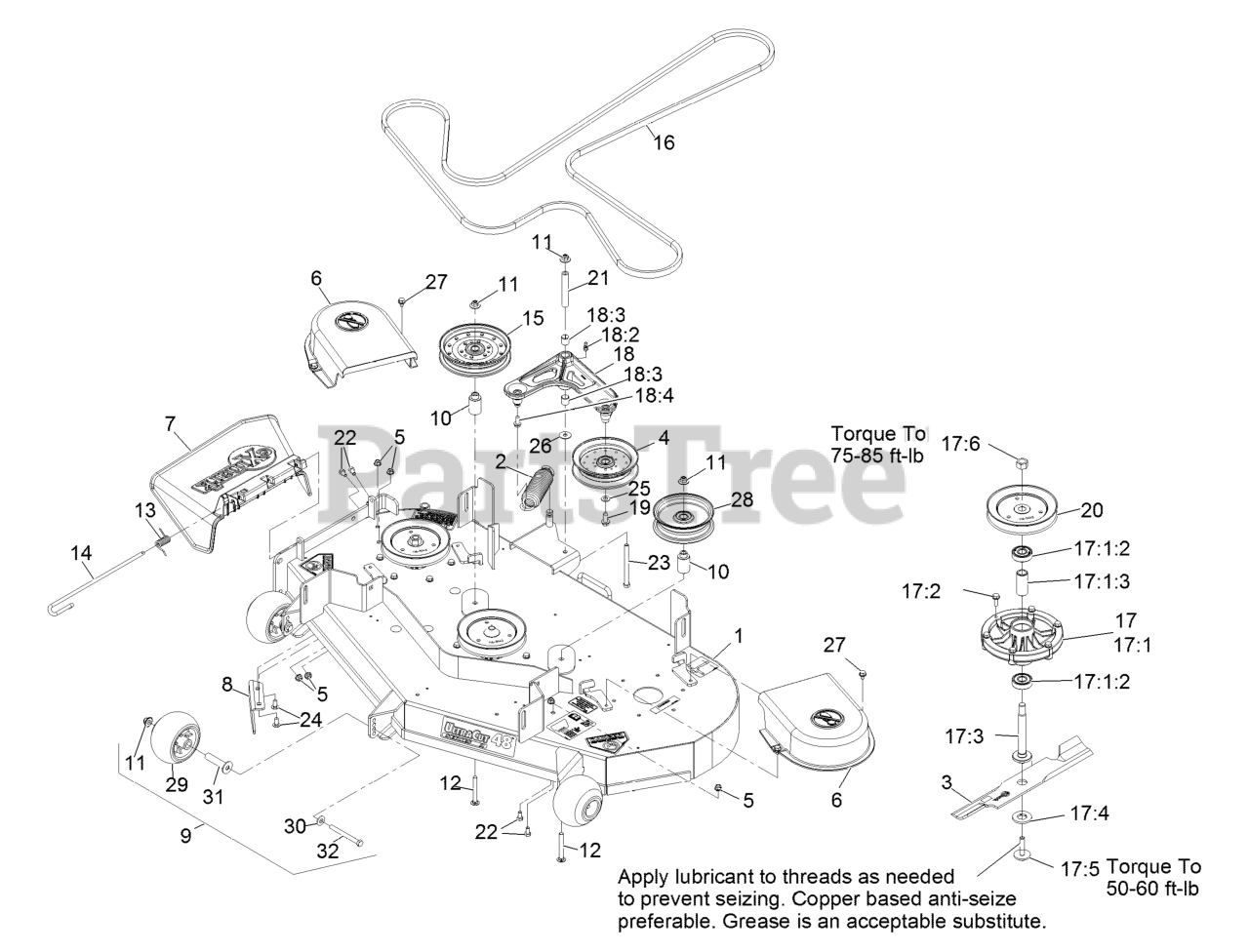

PNE651KA482 - Exmark 48" Pioneer E-Series Zero-Turn Mower, Kawasaki FR651V (SN: 314000000 - 314999999) (2014) Deck Assembly Parts Diagram

48" Pioneer E-Series Zero-Turn Mower, Kawasaki FR651V

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-5047

ASM-482 DECK W/DECALS

$

$

Not available

2

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 15

0

3

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$33.99

$

In Stock, Qty 9

0

3

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$36.99

$

In Stock, Qty 20+

0

3

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$36.99

$

In Stock, Qty 20+

0

3

Exmark 109-6389

109-6389-S
(Superseded to 109-6389-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 13

0

3

Exmark 116-5177

116-5177-S
(Superseded to 116-5177-S)

$34.99

$

In Stock, only 4 left!

0

4

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$64.99

$

In Stock, only 1 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 109-3449

SHIELD-BELT

$40.99

$

In Stock, Qty 10

0

7

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$64.99

$

In Stock, only 2 left!

0

8

Exmark 109-5498-03

BAFFLE-DISCHARGE

$

$

Not available

9

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$55.99

$

In Stock, Qty 20+

0

10

Exmark 109-6572

BUSHING-IDLER

$16.99

$

In Stock, only 2 left!

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, only 2 left!

0

13

Exmark 109-6886

SPRING-TORSION

$9.49

$

In Stock, Qty 8

0

14

Exmark 109-8854

PIN-CHUTE

$17.99

$

In Stock, only 3 left!

0

15

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$71.99

$

In Stock, Qty 6

0

16

Exmark 116-3455

BELT-B154.88
(Superseded to 116-3455-SL)

$168.99

$

In Stock, only 2 left!

0

17

Exmark 116-5138

CUTTER HOUSING ASM

$204.99

$

In Stock, only 3 left!

0

17:1

Exmark 116-5137

HOUSING-CUTTER

$183.99

$

In Stock, only 1 left!

0

17:1:2

Exmark 116-4004

BEARING

$21.99

$

In Stock, Qty 11

0

17:1:3

Exmark 116-4876

SPACER-BEARING

$8.49

$

In Stock, only 3 left!

0

17:2

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

17:3

Exmark 109-7431

SPINDLE-HEX PILOT

$44.99

$

In Stock, only 3 left!

0

17:4

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 20+

0

17:5

Exmark 116-0005

BOLT-BLADE, SEM

$8.49

$

In Stock, Qty 16

0

17:6

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

18

Exmark 126-0976

IDLER ARM ASM

$120.99

$

In Stock, only 3 left!

0

18:2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 5

0

18:3

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

18:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

19

Exmark 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 12

0

20

Exmark 116-5043

SHEAVE,BLADE DRIVE 5.90

$70.99

$

In Stock, only 2 left!

0

21

Exmark 116-5111

BUSHING

$35.99

$

In Stock, only 4 left!

0

22

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

23

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

24

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

27

Exmark 9266934

SCREW

$9.49

$

In Stock, only 4 left!

0

28

Exmark 116-4669

IDLER-PULLEY, FLAT

$84.99

$

In Stock, Qty 5

0

29

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, only 1 left!

0

30

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

31

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

32

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 12

0
