PNS20KA443 - Exmark 44" Pioneer S-Series Zero-Turn Mower, 20hp Kawasaki (SN: 920000 - 999999) (2011) Deck Assembly Parts Diagram

44" Pioneer S-Series Zero-Turn Mower, 20hp Kawasaki

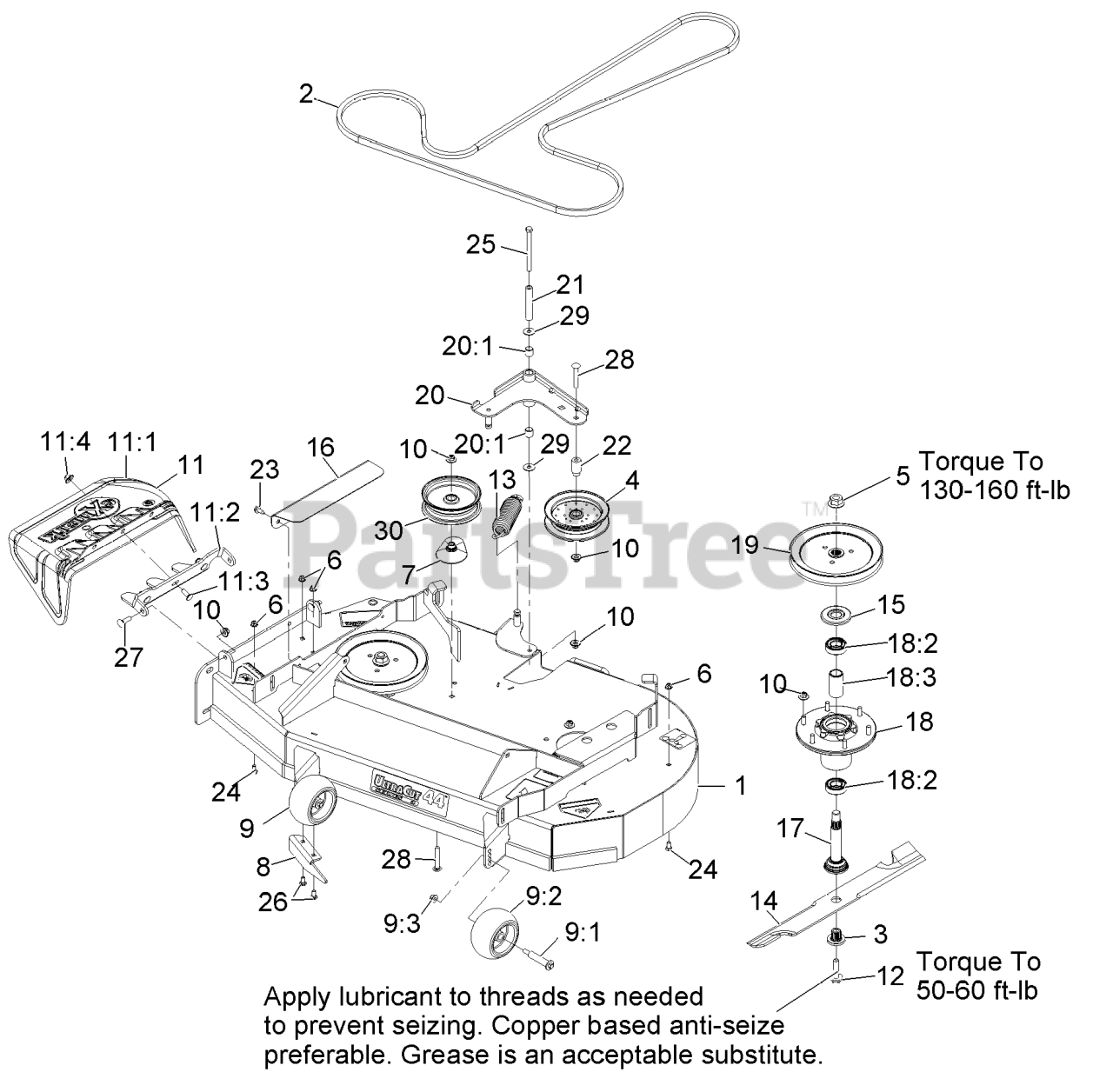

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-3194

ASM-DECK W/DECALS 44

$2638.99

$

In Stock, only 1 left!

0

2

Exmark 1-413093

BELT - V, B

$137.99

$

In Stock, only 2 left!

0

3

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

4

Exmark 103-8743

126-9196
(Superseded to 126-9196)

$63.99

$

In Stock, Qty 20+

0

5

Exmark 104-0753

NUT-FLANGE

$4.49

$

In Stock, Qty 9

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

8

Exmark 109-5498-03

BAFFLE-DISCHARGE

$26.99

$

Usually ships in 3-6 days

0

9

Exmark 109-6388

ANTI-SCALP ROLLER KIT

$42.99

$

In Stock, Qty 20+

0

9:1

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

9:2

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

9:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, Qty 12

0

11:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, only 4 left!

0

11:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

11:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

11:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

13

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 20+

0

14

Exmark 116-1037

Blade-Notched, 22.25

$

$

Currently unavailable

14

Exmark 116-1047

Blade-Mulch, 22.25

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$

$

Currently unavailable

15

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

16

Exmark 116-2828-01

COVER,BELT

$20.99

$

Usually ships in 3-6 days

0

17

Exmark 116-3342

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, only 3 left!

0

18

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 11

0

18:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

18:3

Exmark 116-3312

SPACER-BEARING

$9.99

$

In Stock, Qty 9

0

19

Exmark 116-4589

SHEAVE-BLADE DRIVE, 8.40

$111.99

$

In Stock, only 1 left!

0

20

Exmark 116-4693

126-0976
(Superseded to 126-0976)

$106.99

$

In Stock, Qty 20+

0

20:1

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

21

Exmark 116-5111

BUSHING

$33.99

$

In Stock, Qty 5

0

22

Exmark 116-4714

BUSHING-IDLER

$16.99

$

In Stock, only 3 left!

0

23

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

24

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 4 left!

0

26

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 12

0

28

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

30

Exmark 99-8912

116-4669
(Superseded to 116-4669)

$82.99

$

In Stock, Qty 20+

0
