PNS600KA443 - Exmark 44" Pioneer S-Series Zero-Turn Mower, Kawasaki FX600V (SN: 312000000 - 312999999) (2012) Deck Assembly Parts Diagram

44" Pioneer S-Series Zero-Turn Mower, Kawasaki FX600V

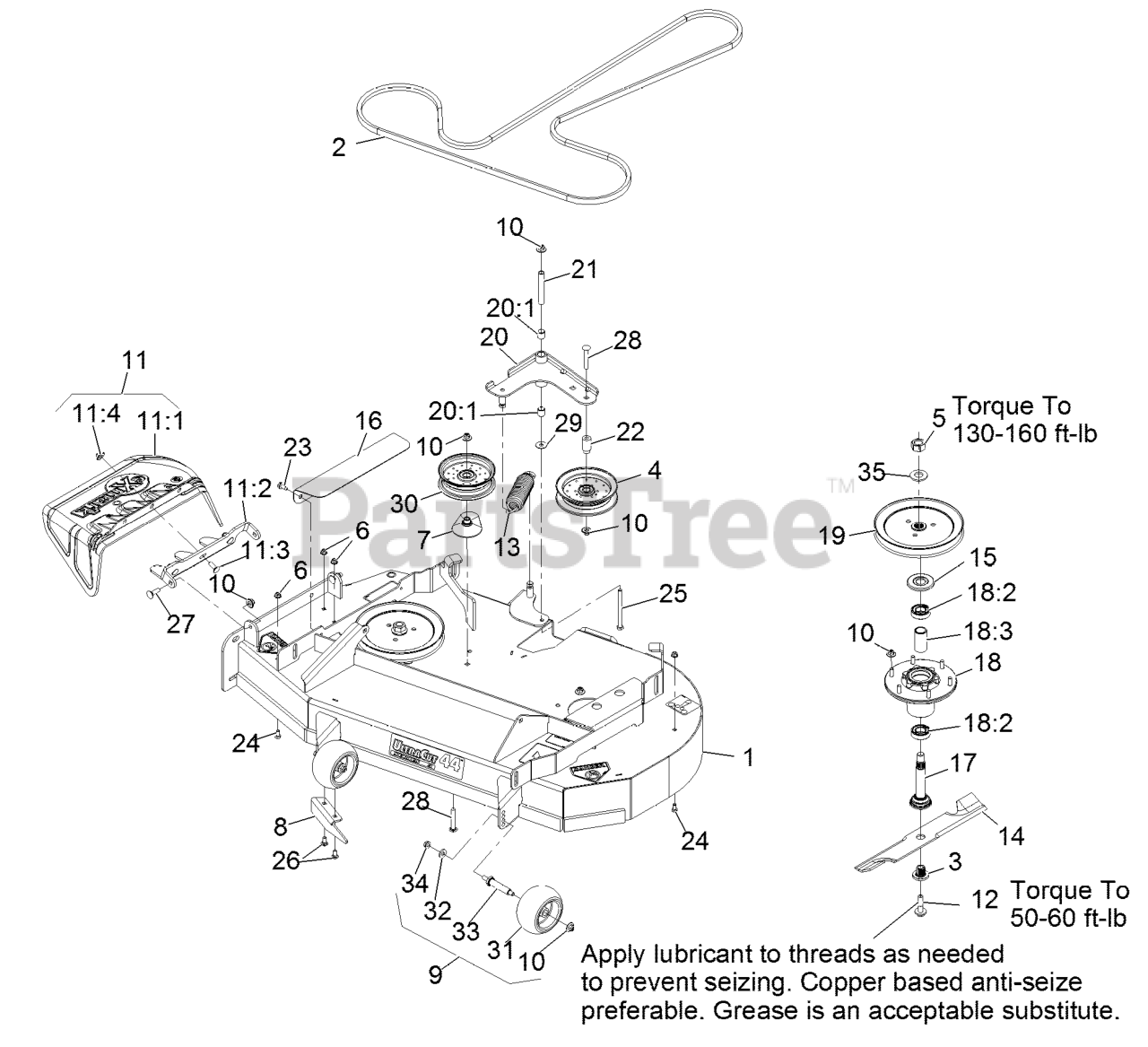

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-3194

ASM-DECK W/DECALS 44

$2743.99

$

In Stock, only 1 left!

0

2

Exmark 1-413093

BELT - V, B

$152.99

$

In Stock, only 2 left!

0

3

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 5

0

4

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$64.99

$

In Stock, Qty 8

0

5

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-2872

SPACER-PULLEY

$23.99

$

In Stock, only 4 left!

0

8

Exmark 109-5498-03

BAFFLE-DISCHARGE

$

$

Not available

9

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$55.99

$

In Stock, Qty 20+

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-7188

ASM,DISCHARGE CHUTE

$125.99

$

In Stock, only 1 left!

0

11:1

Exmark 109-2738

CHUTE,DISCHARGE

$88.99

$

In Stock, Qty 8

0

11:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$59.99

$

In Stock, only 3 left!

0

11:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

13

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 14

0

14

Exmark 116-1047

Blade-Mulch, 22.25

$

$

Currently unavailable

14

Exmark 116-1037

Blade-Notched, 22.25

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$

$

Currently unavailable

15

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, only 3 left!

0

16

Exmark 116-2828-01

COVER,BELT

$23.99

$

Usually ships in 3-6 days

0

17

Exmark 116-3342

ASM-SPINDLE AND SEAL

$94.99

$

In Stock, only 2 left!

0

18

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 16

0

18:2

Exmark 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 6

0

18:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

0

19

Exmark 116-4589

SHEAVE-BLADE DRIVE, 8.40

$132.99

$

Usually ships in 3-6 days

0

20

Exmark 116-4693

126-0976
(Superseded to 126-0976)

$120.99

$

In Stock, only 3 left!

0

20:1

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

21

Exmark 116-5111

BUSHING

$35.99

$

In Stock, only 4 left!

0

22

Exmark 116-4714

BUSHING-IDLER

$17.99

$

In Stock, only 2 left!

0

23

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

24

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

25

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

26

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

28

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

30

Exmark 116-4669

IDLER-PULLEY, FLAT

$84.99

$

In Stock, Qty 5

0

31

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

32

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

33

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$41.99

$

In Stock, Qty 16

0

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0
