PNS680KC523 - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kohler CV680 (SN: 313000000 - 313999999) (2013) Caster Wheel Assembly No. 103-5189 Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kohler CV680

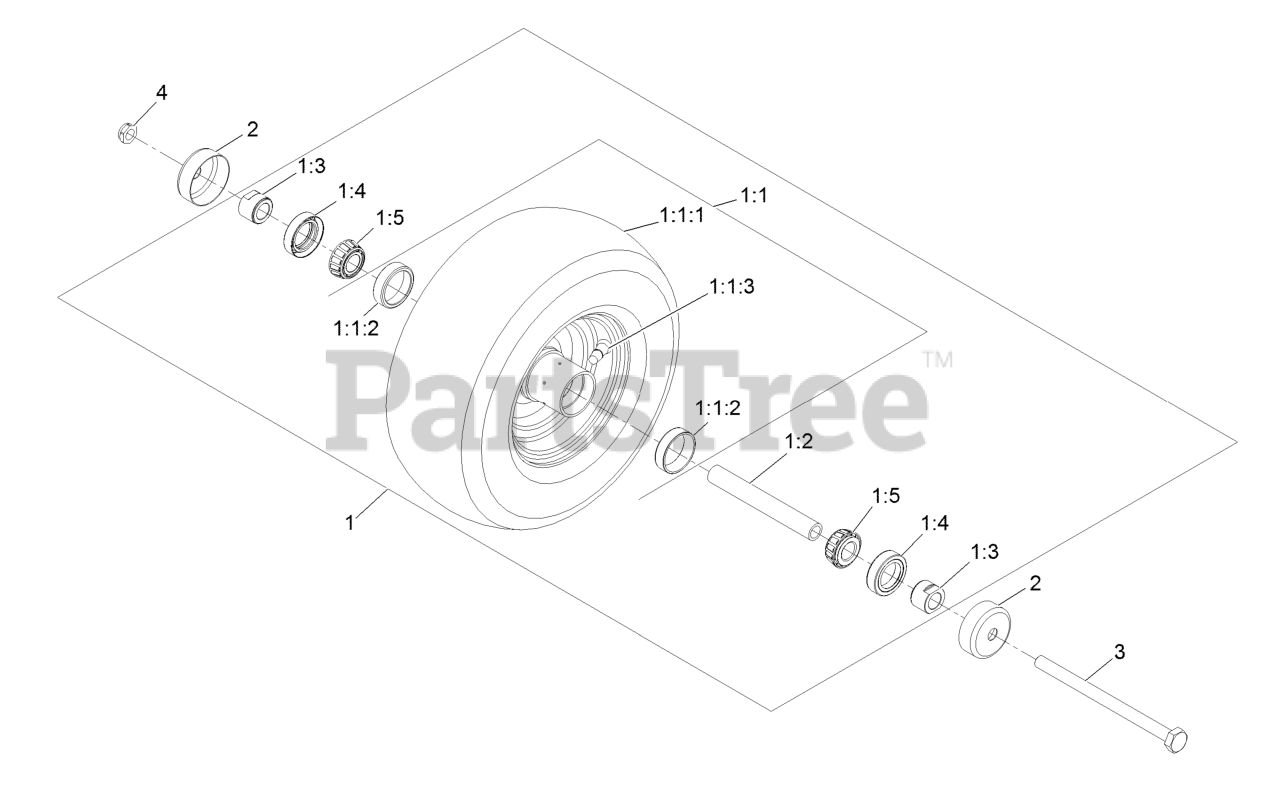

Caster Wheel Assembly No. 103-5189 Parts Diagram

  • Title

1

Asm, Wheel And Brg 13x5.00-6

Note: Not serviced separately

$

$

Not available

1:1

Asm, Wheel And Tire 13x5.00-6

Note: Not serviced separately

$

$

Not available

1:1:1

Exmark 1-633002

TIRE

$104.99

$

Usually ships in 3-6 days

0

1:1:2

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

1:1:3

Exmark 5108

VALVE

$7.49

$

In Stock, Qty 8

0

1:2

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$17.99

$

In Stock, only 2 left!

0

1:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, only 3 left!

0

1:4

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 13

0

1:5

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

3

Exmark 325-36

SCREW-HH

$12.99

$

In Stock, Qty 12

0

4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0
