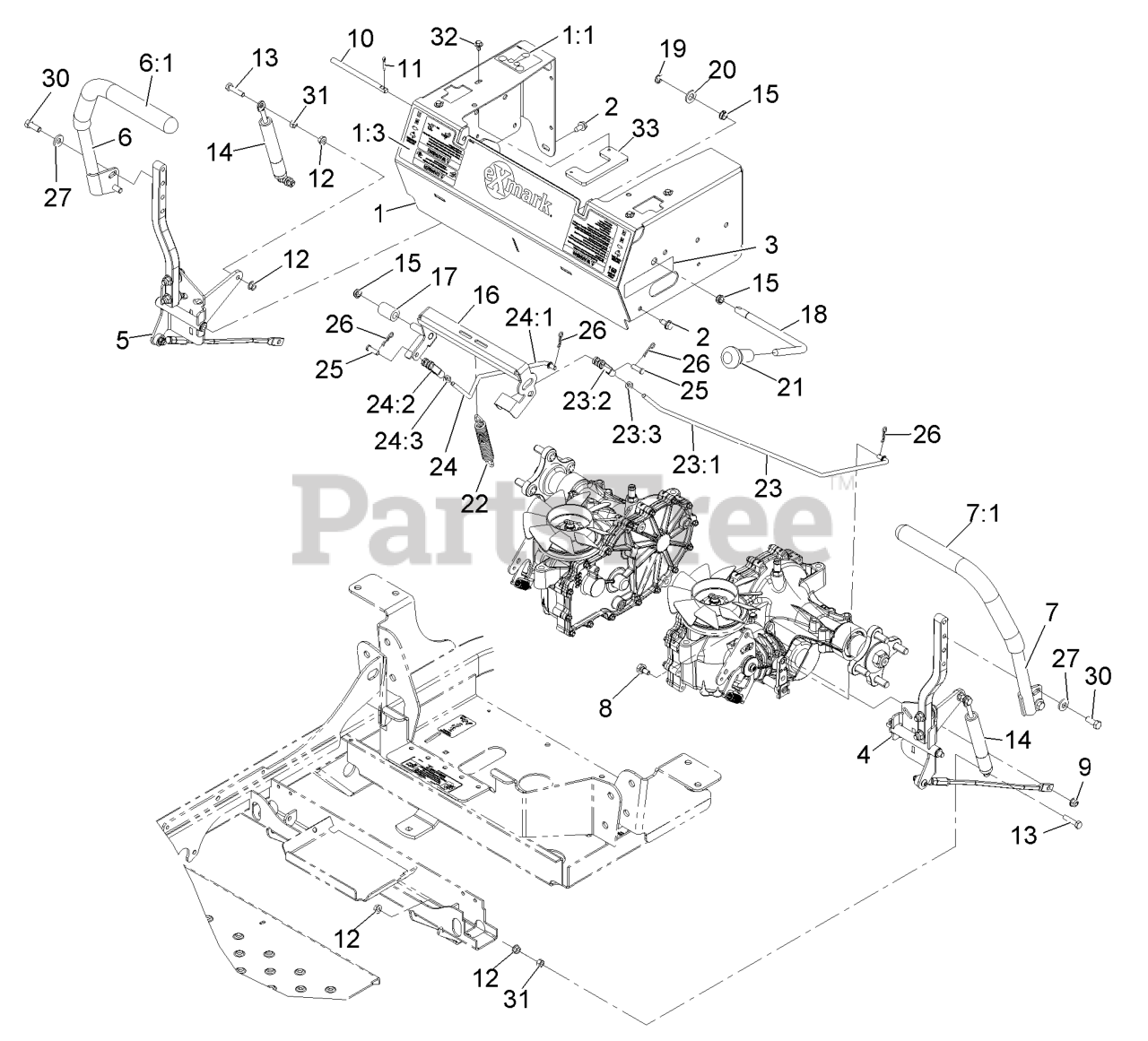

PNS720KC523SS - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kohler ZT720 (SN: 314000000 - 314999999) (2014) Motion Control Assembly Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kohler ZT720

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 116-3188

ASM-MOT CTRL FRM W/DCL

$

$

Not available

1:1

Exmark 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

1:3

Exmark 116-4430

116-8668
(Superseded to 116-8668)

$

$

Not available

2

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

3

Exmark 116-3884

DECAL-S-SERIES

$8.49

$

In Stock, only 2 left!

0

4

Motion Control Asm-Lh

Note: Not serviced separately

$

$

Not available

5

Motion Control Asm-Rh

Note: Not serviced separately

$

$

Not available

6

Exmark 119-3486

RH HANDLE ASM

$86.99

$

In Stock, only 1 left!

0

6:1

Exmark 108-6187

GRIP

$30.99

$

In Stock, only 2 left!

0

7

Exmark 119-3485

LH HANDLE ASM

$86.99

$

In Stock, only 2 left!

0

7:1

Exmark 108-6187

GRIP

$30.99

$

In Stock, only 2 left!

0

8

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, only 2 left!

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

10

Exmark 109-3705

PIN-CONTROL PIVOT

$19.99

$

In Stock, only 1 left!

0

11

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

12

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 8

0

14

Exmark 109-5957

DAMPER-MOTION CONTROL

$90.99

$

In Stock, only 2 left!

0

15

Exmark 116-1393

BUSHING,SNAP

$5.99

$

Usually ships in 3-6 days

0

16

Exmark 116-6233

ASM-BRAKE CENTER ARM

$

$

Not available

17

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

18

Exmark 116-3155

HANDLE,BRAKE

$

$

Not available

19

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

20

Exmark 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

Exmark 106-7952

KNOB

$23.99

$

In Stock, only 2 left!

0

22

Exmark 88-6130

SPRING-DECK, ENGAGEMENT

$14.99

$

In Stock, only 2 left!

0

23

Exmark 116-1165

BRAKE LINKAGE ASM-LH

$

$

Not available

23:1

Exmark 116-1167

LINKAGE,BRAKE LH

$59.99

$

Usually ships in 3-6 days

0

23:2

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

23:3

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-1166

BRAKE LINKAGE ASM-RH

$127.99

$

Usually ships in 3-6 days

0

24:1

Exmark 116-1168

LINKAGE-BRAKE, RH

$59.99

$

Usually ships in 3-6 days

0

24:2

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

24:3

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

26

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

27

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

30

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

32

Exmark 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

33

Exmark 109-6214

STOP-MOTION CONTROL

$42.99

$

Usually ships in 3-6 days

0
