PNS720KC523SS - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kohler ZT720 (SN: 314000000 - 314999999) (2014) Seat W/Tracks Assembly No. 126-2802 Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kohler ZT720

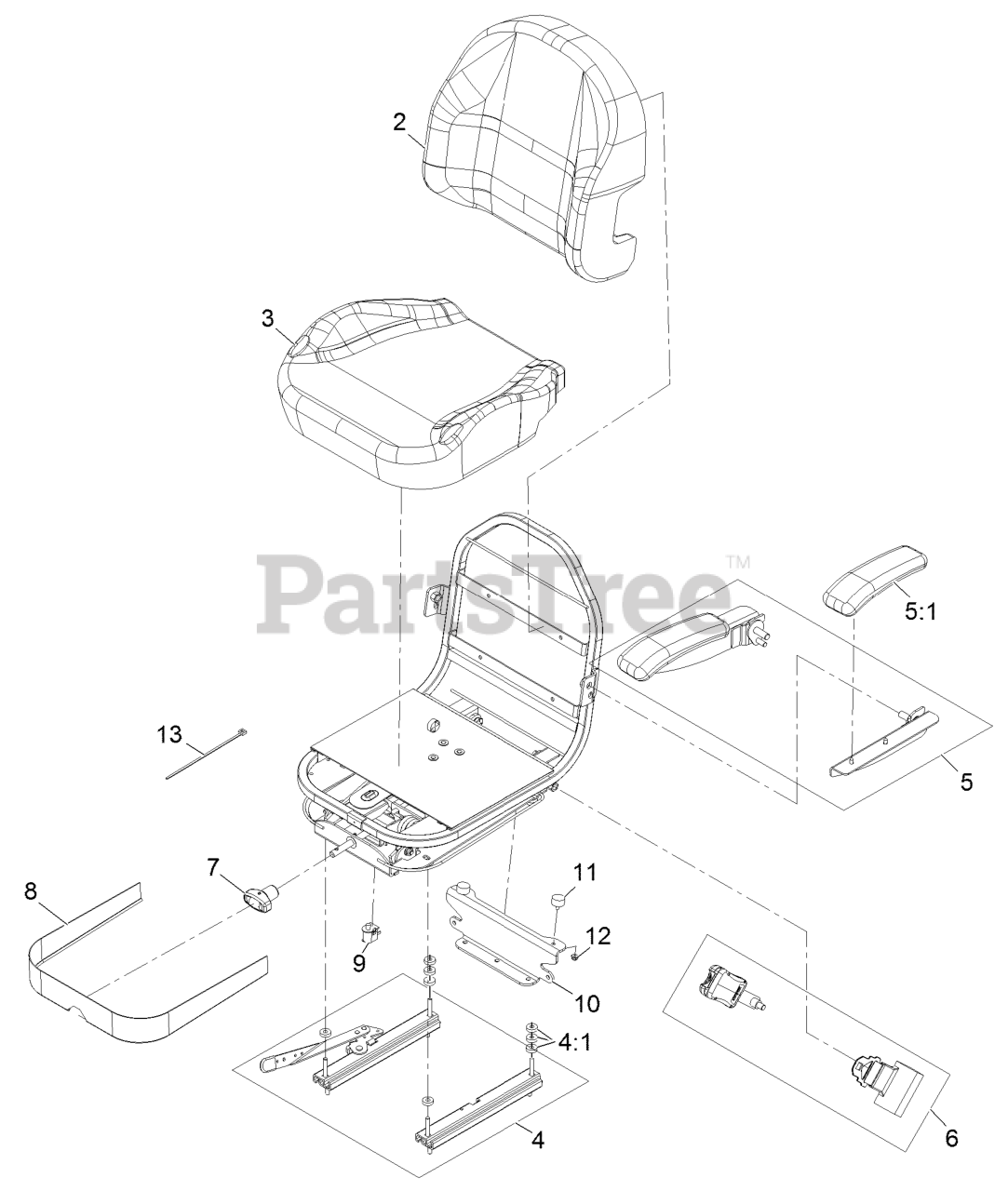

Seat W/Tracks Assembly No. 126-2802 Parts Diagram

  • Title

2

Exmark 126-3505

COVER-SEAT BACK

$223.99

$

Usually ships in 3-6 days

0

3

Exmark 130-0848

COVER-CUSHION

$217.99

$

Usually ships in 3-6 days

0

4

Exmark 126-3501

KIT-TRACK-SEAT 4"

$200.99

$

Usually ships in 3-6 days

0

4:1

Exmark 26-4840

5-0652

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2058

ARMREST KIT

$211.99

$

Usually ships in 3-6 days

0

5:1

Exmark 110-4163

CUSHION-REST, ARM

$100.99

$

Usually ships in 3-6 days

0

6

Exmark 126-3504

130-0845
(Superseded to 130-0845)

$331.99

$

Usually ships in 3-6 days

0

7

Exmark 130-0846

KNOB-ADJUSTER

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 126-3506

COVER-SKIRT W/FASTENERS

$96.99

$

Usually ships in 3-6 days

0

9

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, only 4 left!

0

10

Exmark 126-0480-01

PLATE-SEAT SUPPORT

$51.99

$

Usually ships in 3-6 days

0

11

Exmark 240-14

BUMPER-RUBBER

$16.99

$

Usually ships in 3-6 days

0

12

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 9

0
