PNS730GKA604A3 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX (SN: 315000000 - 315999999) (2015) Fuel Tank Mounting Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX

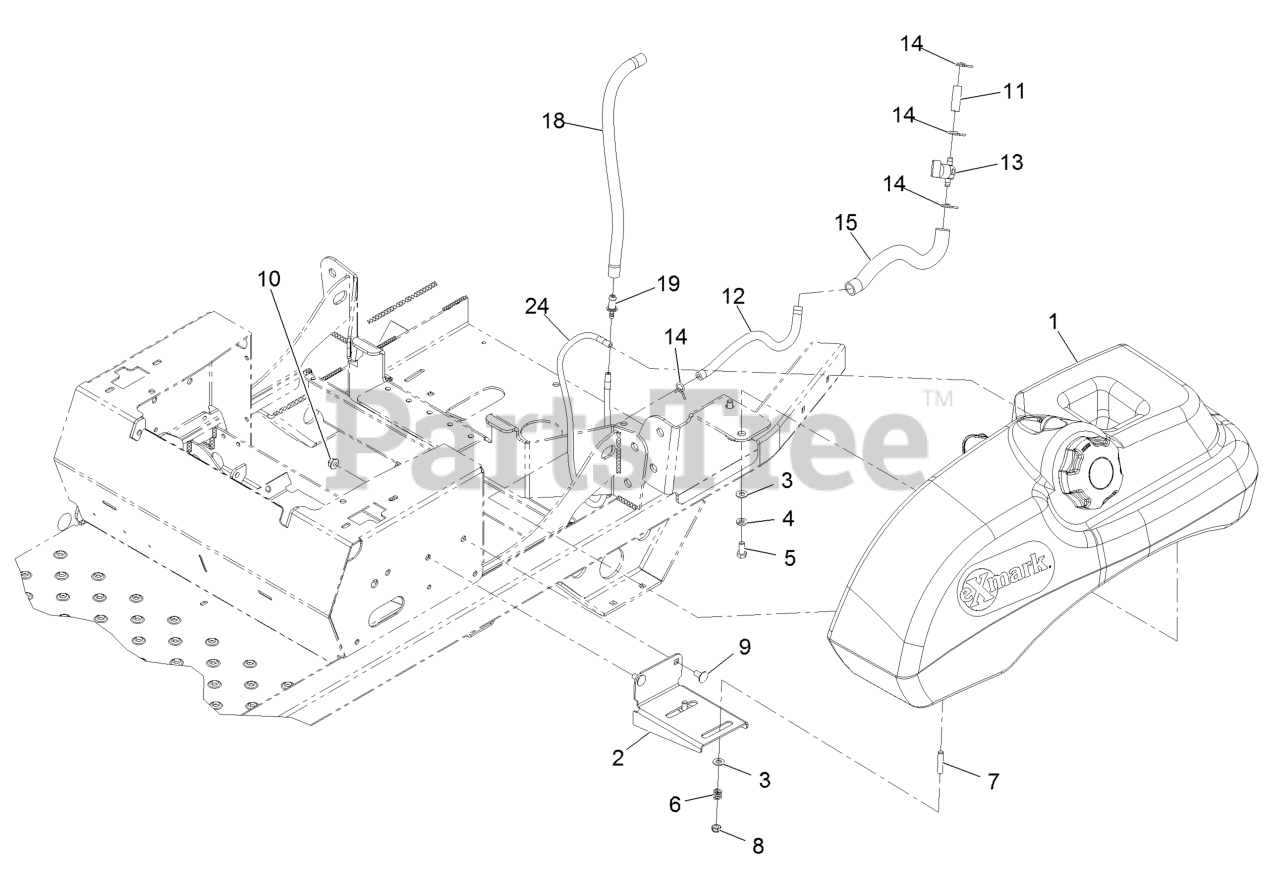

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4610

ASM-FUEL TANK

$937.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3495-03

BRACKET-TANK AND FENDER

$

$

Not available

3

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

5

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

7

Exmark 1-633023

STUD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.99

$

In Stock, only 2 left!

0

8

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 14

0

11

Exmark 106-9492

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

12

Exmark 109-0282

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

14

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-4515

CONDUIT-FUEL LINE

$6.99

$

Usually ships in 3-6 days

0

18

Exmark 116-4344

HOSE-FUEL

$13.99

$

In Stock, only 1 left!

0

19

Exmark 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 116-4802

HOSE,EMISSIONS

$

$

Not available
