PNS740GKC60400 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740 (SN: 316000000 - 399999999) (2016) Hydraulic Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740

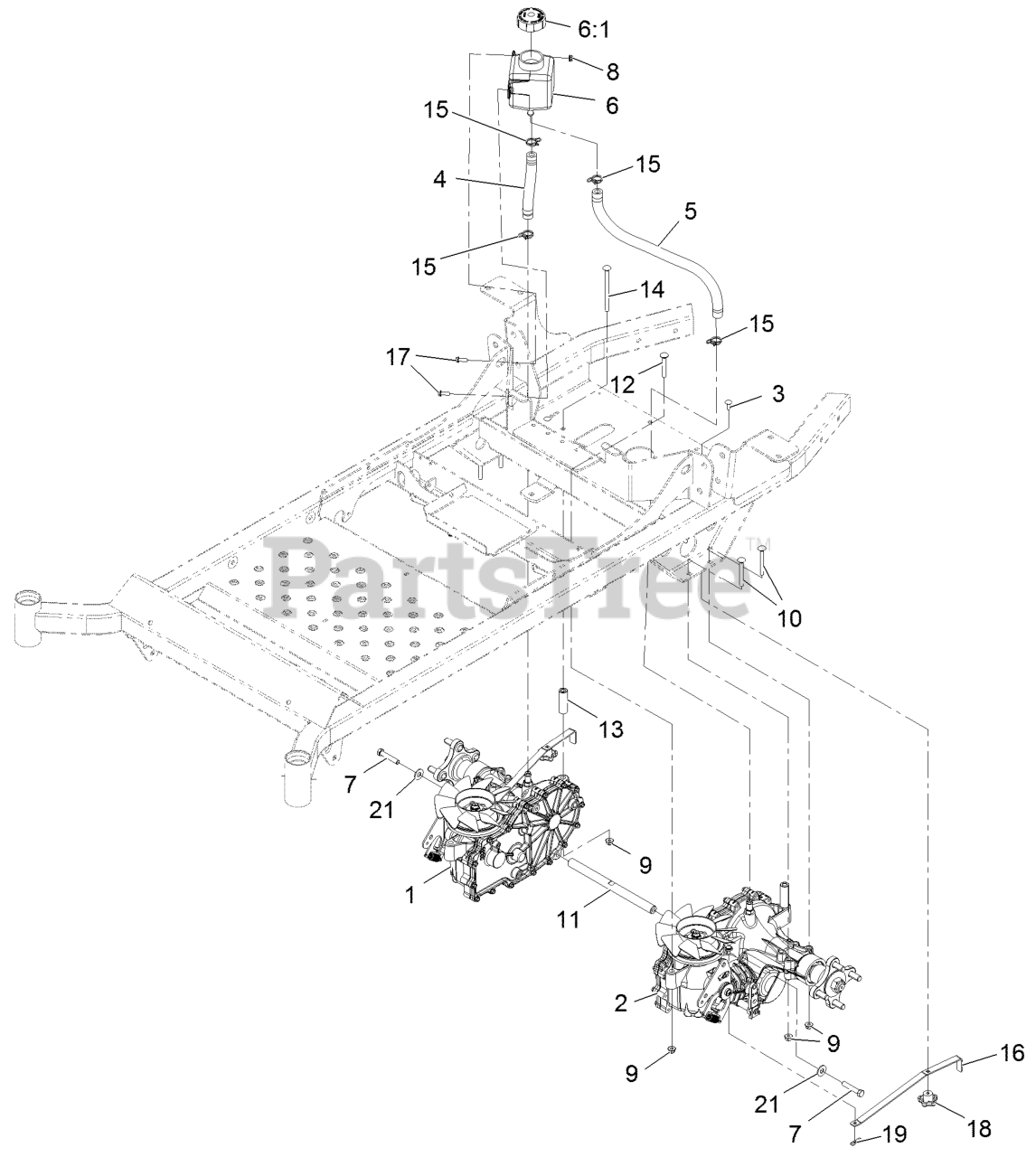

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-6007

TRANSAXLE ASM

$2561.99

$

Usually ships in 3-6 days

0

2

Exmark 116-6008

TRANSAXLE ASM

$2561.99

$

Usually ships in 3-6 days

0

3

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

4

Exmark 116-5641

HOSE-HYDRAULIC

$

$

Not available

5

Exmark 116-5642

HOSE-HYDRAULIC

$20.99

$

Usually ships in 3-6 days

0

6

Exmark 109-2250

TANK-HYD

$71.99

$

In Stock, only 2 left!

0

6:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$30.99

$

In Stock, only 2 left!

0

7

Exmark 94-7972

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 2 left!

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

10

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 13

0

11

Exmark 116-6833

SHAFT-SPACER

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

13

Exmark 116-5809

SPACER-HYDRO

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 3230-30

Bolt-Carriage 5/16-18 X 1 1/4

$12.99

$

In Stock, only 3 left!

0

15

Exmark 126-0327

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

ARM-BYPASS, HYDRO

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 108-6402

KNOB-HANDLE

$1.99

$

In Stock, Qty 14

0

19

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

21

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
