PNS740GKC60RA3 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740 (SN: 316000000 - 399999999) (2016) Hydraulic Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740

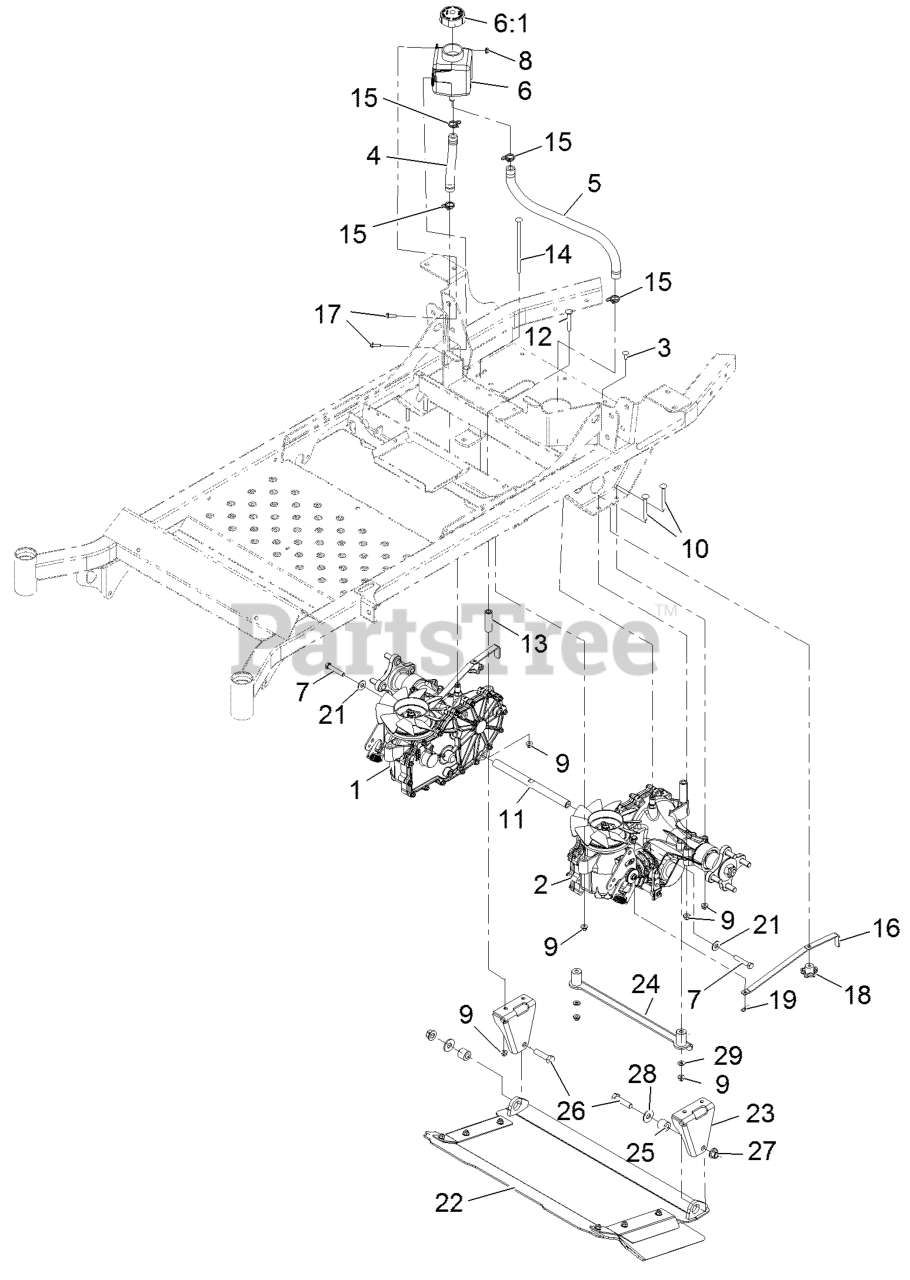

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-6007

TRANSAXLE ASM

$2382.99

$

Usually ships in 3-6 days

0

2

Exmark 116-6008

TRANSAXLE ASM

$2382.99

$

Usually ships in 3-6 days

0

3

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

4

Exmark 116-5641

HOSE-HYDRAULIC

$5.99

$

In Stock, only 1 left!

0

5

Exmark 116-5642

HOSE-HYDRAULIC

$18.99

$

Usually ships in 3-6 days

0

6

Exmark 109-2250

TANK-HYD

$63.99

$

In Stock, Qty 15

0

6:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$27.99

$

In Stock, only 1 left!

0

7

Exmark 94-7972

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 9

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3230-26

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

11

Exmark 116-6833

SHAFT-SPACER

$37.99

$

In Stock, only 2 left!

0

12

Exmark 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

13

Exmark 116-5809

SPACER-HYDRO

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 126-4991

SCREW-CARR

$

$

Not available

15

Exmark 126-0327

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

ARM-BYPASS, HYDRO

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0

18

Exmark 108-6402

KNOB-HANDLE

$1.49

$

In Stock, Qty 16

0

19

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Exmark 126-1985

DISCHARGE TUNNEL ASM

$264.99

$

Usually ships in 3-6 days

0

23

Exmark 126-1988-03

BRACKET-MOUNT, DISCHARGE

$24.99

$

Usually ships in 3-6 days

0

24

Exmark 116-6924-03

ASM-HYDRO GUSSET

$97.99

$

Usually ships in 3-6 days

0

25

Exmark 126-1705

BUSHING-SLEEVE

$7.99

$

In Stock, Qty 7

0

26

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

27

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

28

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0
