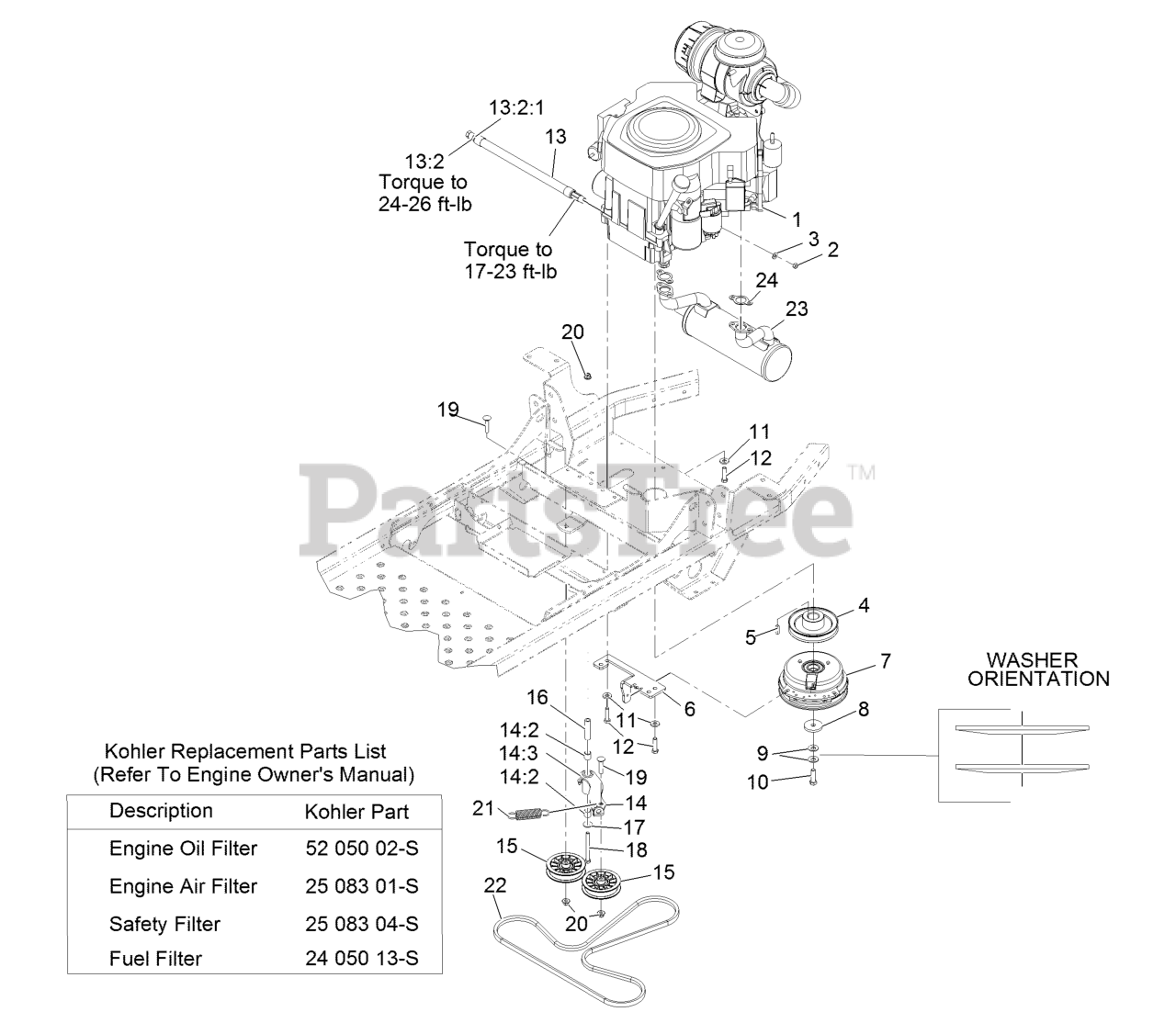

PNS740KC604 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler CV740 (SN: 313000000 - 313999999) (2013) Engine Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler CV740

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler

Note: Not serviced separately,Obtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 13

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$78.99

$

In Stock, only 4 left!

0

5

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

6

Exmark 116-4773-03

ANCHOR-CLUTCH

$30.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1604

116-1620
(Superseded to 116-1620)

$380.99

$

In Stock, Qty 20+

0

8

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

9

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

10

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 13

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Exmark 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

13

Exmark 116-5316

OIL DRAIN HOSE ASM

$58.99

$

In Stock, Qty 15

0

13:2

Exmark 353-508

PLUG-HH

$8.99

$

In Stock, only 1 left!

0

13:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

14

Exmark 116-4729

126-0973
(Superseded to 126-0973)

$96.99

$

In Stock, only 4 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

15

Exmark 116-2456

PULLEY-FLAT IDLER

$25.99

$

In Stock, Qty 20+

0

16

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

17

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

22

Exmark 115-9613

V-BELT
(Superseded to 115-9613-SL)

$52.99

$

Usually ships in 3-6 days

0

23

Exmark 116-6493

MUFFLER-KOHLER TWIN

$336.99

$

Usually ships in 3-6 days

0

24

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available
