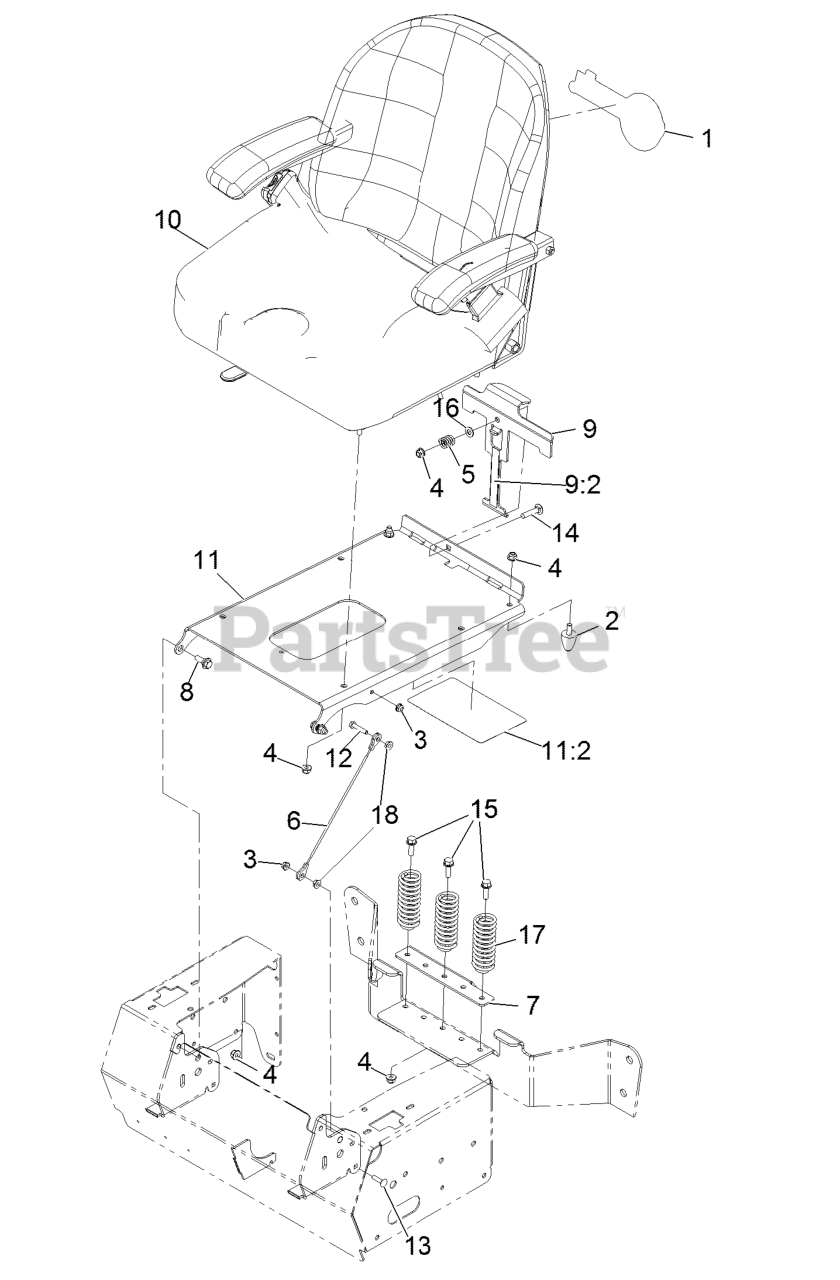

PNS740KC604 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler CV740 (SN: 313000000 - 313999999) (2013) Seat Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler CV740

Seat Assembly Parts Diagram

  • Title

1

Exmark 103-2882

DECAL,EXMARK LOGO

$12.99

$

In Stock, only 4 left!

0

2

Exmark 103-9376

BUMPER-SEAT

$

$

Not available

3

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 107-3017

SPRING-COMPRESSION

$3.49

$

In Stock, only 1 left!

0

6

Exmark 109-2628

CABLE-STOP, SEAT

$21.99

$

In Stock, only 2 left!

0

7

Exmark 116-0871

CATCH,SEAT LATCH

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 116-3121

ASM-SEAT LATCH

$

$

Not available

9:2

Exmark 116-3120

STRIP-POLY WEAR

$

$

Not available

10

Exmark 116-6192

ASM-SEAT, LZE

$1068.99

$

Usually ships in 3-6 days

0

11

Exmark 116-4418

PLATE, SEAT W/DECALS

$165.99

$

Usually ships in 3-6 days

0

11:2

Exmark 109-6016

DECAL-SERVICE AID

$

$

Not available

12

Exmark 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

13

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 16

0

14

Exmark 3230-4

BOLT-CARR

$4.49

$

Usually ships in 3-6 days

0

15

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Exmark 92-7054

SPRING-COMPRESSION

$23.99

$

In Stock, only 2 left!

0

18

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 11

0
