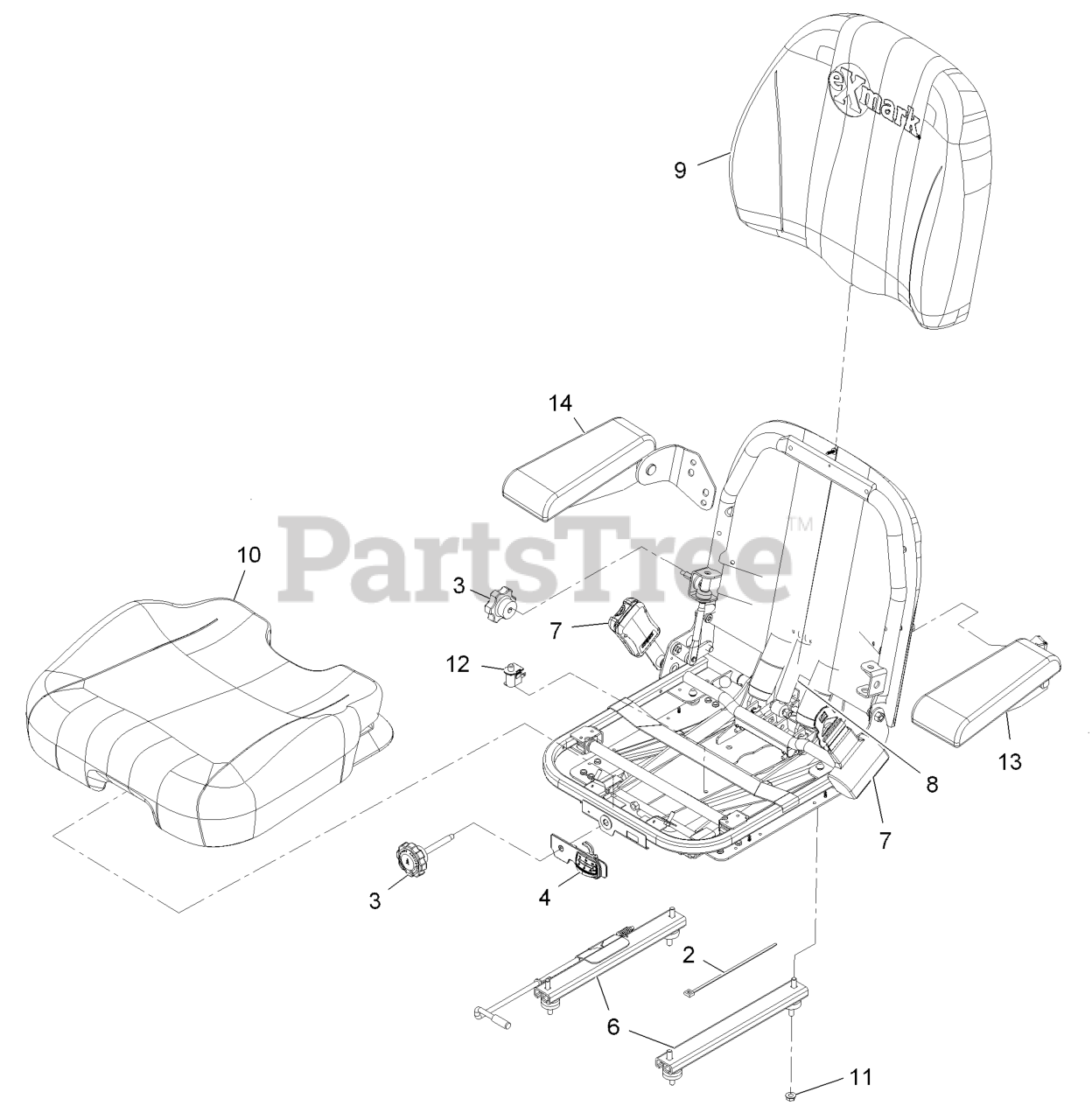

PNS740KC604SS - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740 (SN: 312000000 - 312999999) (2012) Seat W/Tracks Assembly No. 116-4678 Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740

Seat W/Tracks Assembly No. 116-4678 Parts Diagram

  • Title

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

3

Exmark 107-1881

KNOB KIT

$240.99

$

Usually ships in 3-6 days

0

4

Exmark 107-1885

WEIGHT INDICATOR KIT

$62.99

$

Usually ships in 3-6 days

0

6

Exmark 116-0333

SEAT TRACK KIT

$288.99

$

Usually ships in 3-6 days

0

7

Exmark 116-0751

SEAT BELT KIT (SHORT)

$339.99

$

Usually ships in 3-6 days

0

8

Exmark 116-0998

SHOCK ABSORBER KIT

$188.99

$

Usually ships in 3-6 days

0

9

Exmark 116-3922

KIT,BACK CUSHION AND COVE

$

$

Not available

10

Exmark 116-3923

KIT,BOTTOM CUSHION AND CO

$

$

Not available

11

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

12

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

13

Exmark 116-5708

ARM REST ASM,SUSP.SEAT LH

$

$

Not available

14

Exmark 116-5709

ARM REST ASM,SUSP.SEAT RH

$

$

Not available

99

Exmark 116-5998

KIT,SEAT BACK PANEL

Note: Not illustrated

$

$

Not available

99

Exmark 109-3345

WEIGHT ADJUST KIT

Note: Not illustrated

$194.99

$

Usually ships in 3-6 days

0

99

Exmark 109-3343

SPRING AND SADDLE KIT

Note: Not illustrated

$194.99

$

Usually ships in 3-6 days

0
