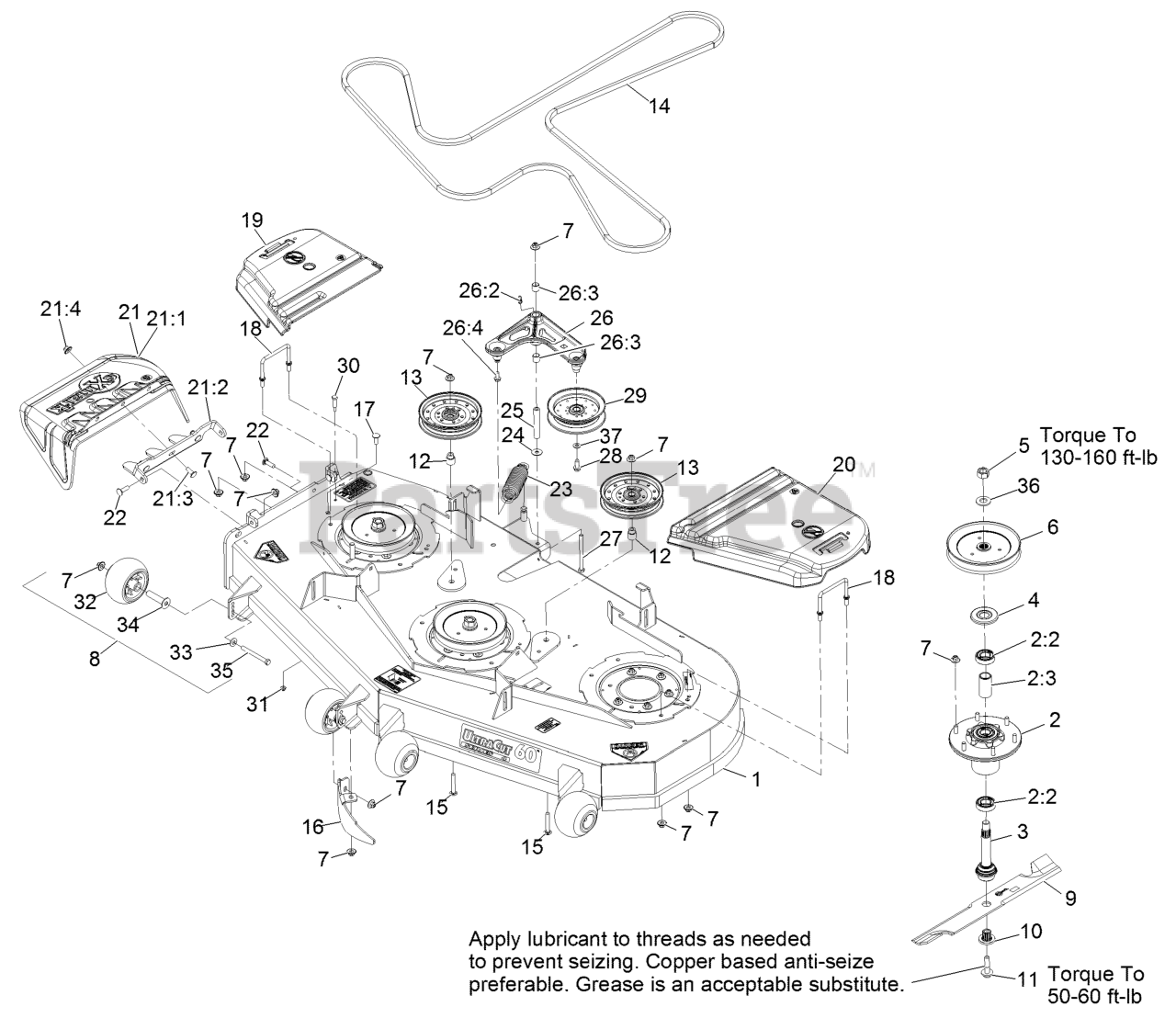

PNS740KC604SS - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740 (SN: 314000000 - 314999999) (2014) Deck Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-5812

DECK ASM,W/DECALS 604

$3569.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$98.99

$

In Stock, Qty 20+

0

4

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

5

Exmark 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

6

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$83.99

$

In Stock, Qty 20+

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$56.99

$

In Stock, Qty 20+

0

9

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

9

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$35.99

$

In Stock, Qty 20+

0

9

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

9

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$41.99

$

In Stock, Qty 20+

0

9

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$37.99

$

In Stock, Qty 20+

0

10

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

11

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

12

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$74.99

$

In Stock, Qty 16

0

14

Exmark 114-8154

BELT-V
(Superseded to 114-8154-SL)

$173.99

$

In Stock, Qty 10

0

15

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

16

Exmark 116-5614-01

DOGLEG - LZ60

$71.99

$

Usually ships in 3-6 days

0

17

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

19

Exmark 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

20

Exmark 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

21

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 14

0

21:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

21:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

21:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

23

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

24

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-5111

BUSHING

$36.99

$

In Stock, only 4 left!

0

26

Exmark 126-0976

IDLER ARM ASM

$123.99

$

In Stock, only 1 left!

0

26:2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

26:3

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

26:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

27

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

28

Exmark 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

29

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$67.99

$

In Stock, Qty 11

0

30

Exmark 112-8387

BOLT-SHOULDER

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

33

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

34

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

35

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

36

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

37

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+
