PO 14538 LT (960480022-00) - Poulan Lawn Tractor (2012-02) ENGINE Parts Diagram

Lawn Tractor

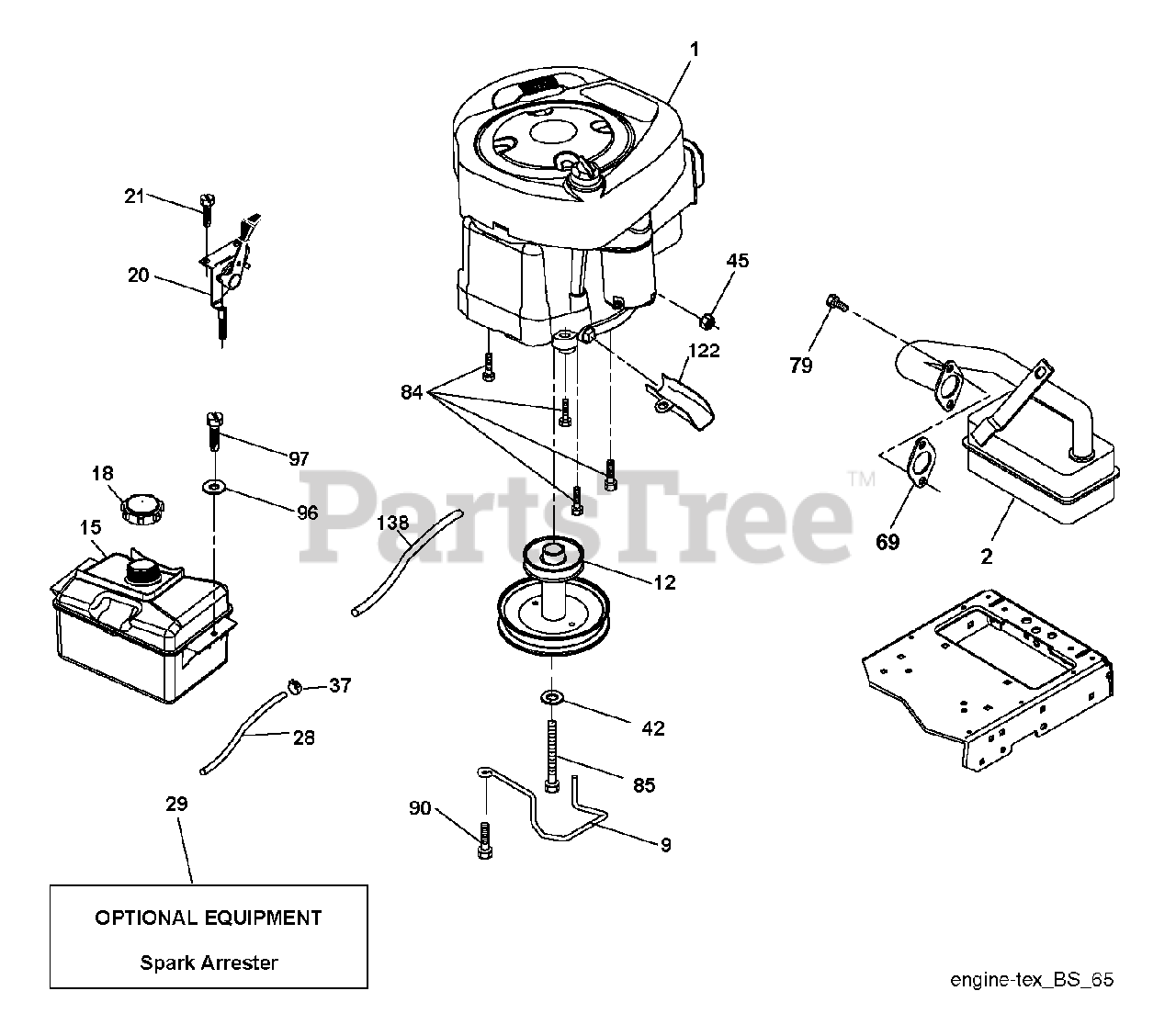

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE BRIGGS MODEL NO 31A507-1516-B1 (438749)

$

$

Not available

2

Poulan 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$53.99

$

In Stock, Qty 20+

0

9

Poulan 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, Qty 5

0

12

Poulan 532401985

PULLEY ENGINE
(Superseded to 586729001)

$33.99

$

Usually ships in 3-10 days

0

15

Poulan 532433003

TANK.ASM.1.5GAL.FRT.W/CAP.EPA

$

$

Not available

18

Poulan 532438596

CAP.2.25'.VENTED.RATCHET.EPA
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

20

Poulan 532170545

(Superseded to 583045801)

$35.99

$

In Stock, only 2 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$203.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 532165291

(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Poulan 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

122

Poulan 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0

138

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0
